Description

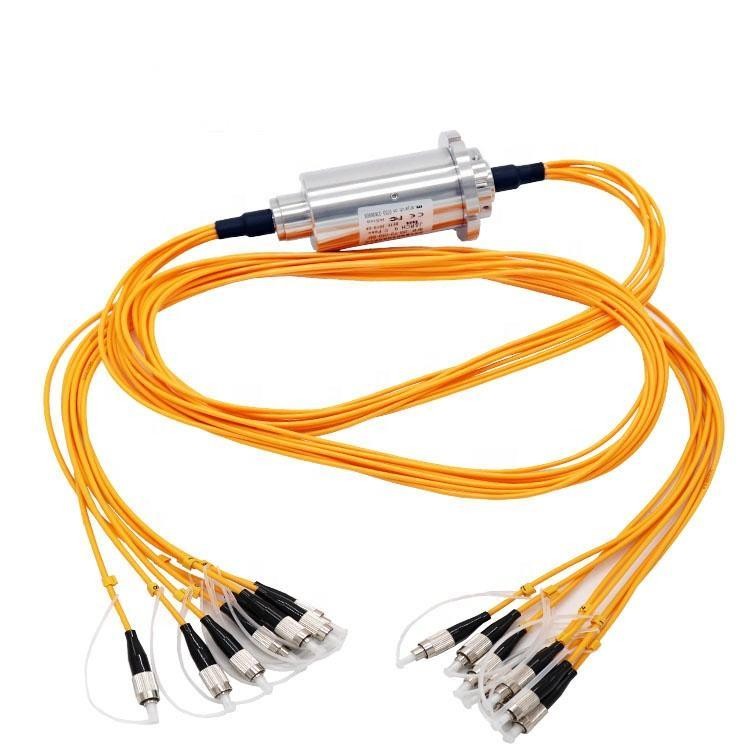

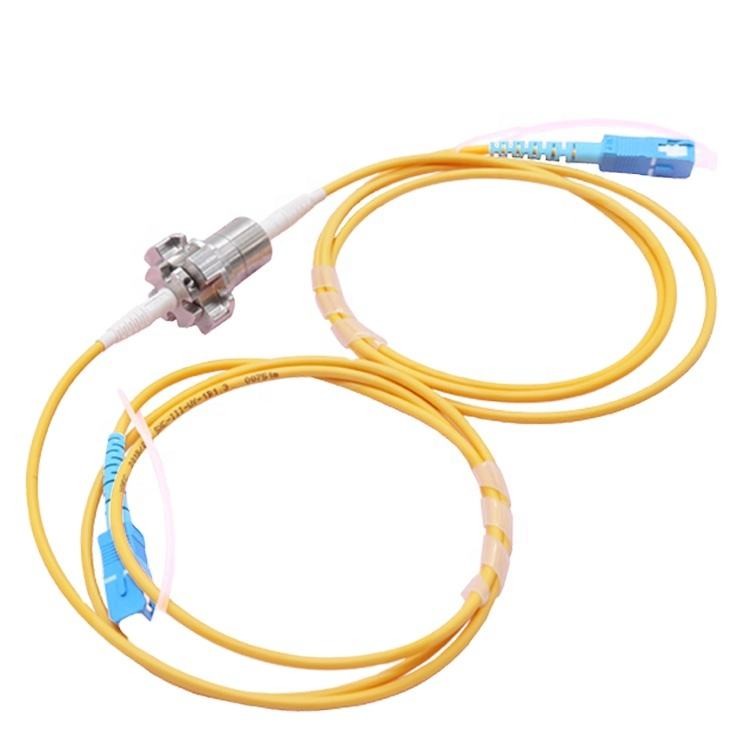

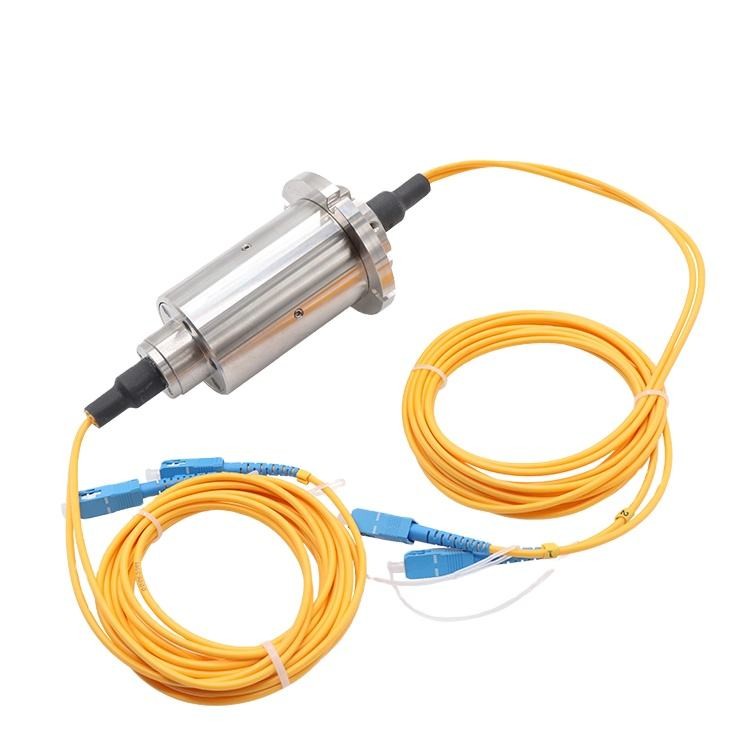

QYY- 100RPM dual channel fiber slip ring rotary joint
Specifications：
Wavelength range
650-1650 nm
Insertion loss
≤2 dB (typical: <0.5 dB)
Insertion loss ripple
<+/-0.25 dB
Return loss (SM)
≥40 dB
Maximum speed
1,000 rpm
Pulling strength
10 N (900 um buffer)
Start up torque
<0.01 Nm
Estimated life cycle
200-400 million revolutions
Optical power handling
23 dBm
Working temperature
-40°C to 85 °C
Storage temperature
-50°C to 85 C°C
Package style
Pigtails on both ends
Housing material
Stainless steel
Fiber types
Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types
FC, SC, ST, SMA, or LC
Dimensions
6.8 mm dia. x 28 mm length
Weight
10 g
IP rating
IP 68 for all models,IP66 available
Vibration
MIL-STD-167-1A
Mechanical shock
MIL-STD-810G
Features：
. Using light signal transmission, no electromagnetic leakage.
. Good sealing.
. Resistance to electromagnetic interference
. No contact transmission, no wear and tear.
. Long life, can be up to 10 million RPM.
. No friction, can be used in inflammable and explosive environment.
. Can be used in extreme natural environment.
. High magnetic current interference, also can work normally.
Application：
. Between in undersea robot and control ship
. Between in radar antenna and on-board signal processing system
. With the chariot rotating tower car body console
. Between in welding robot and console
. Remote mechanical input and output devices and control
. The photoelectric theodolite
. The connection between the platform and spacecraft tracking
