Description

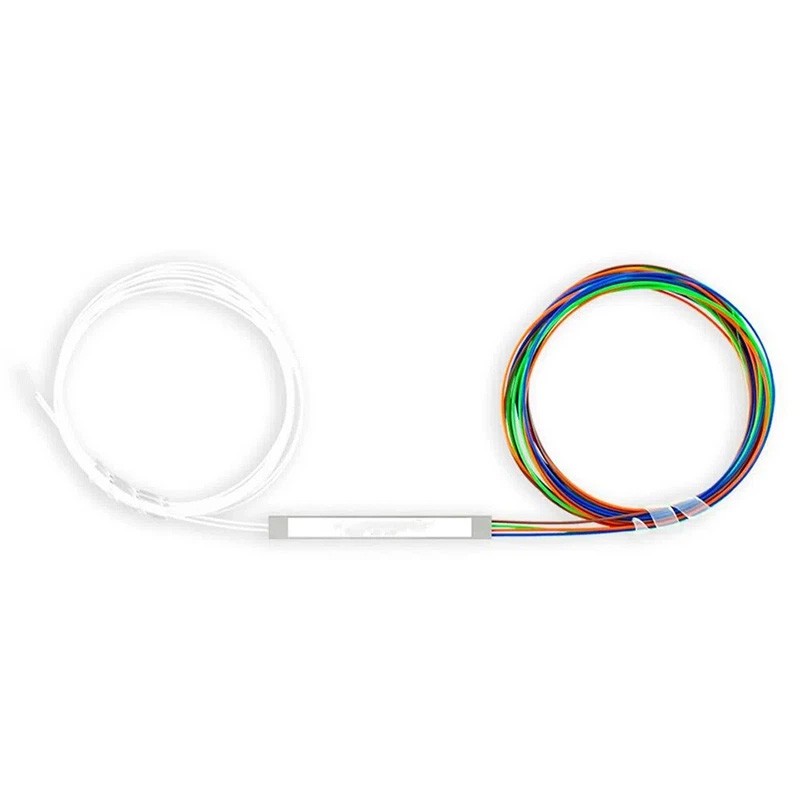

QYY- 2x8 Mini PLC Splitter
Features：
. Compact design: The 2x8 Mini PLC Splitter is very small and compact, making it easy to install in places where space is limited.
. Low insertion loss: This splitter has a very low insertion loss, which means that signal loss is minimized during the splitting process.
. High reliability: The 2x8 Mini PLC Splitter is designed to be highly reliable and can operate in a wide range of temperature and humidity conditions.
. Wide wavelength range: This splitter can operate in the 1260-1650nm wavelength range,
which means that it is compatible with a wide range of fiber optic communication systems.
. Low polarization dependent loss: The 2x8 Mini PLC Splitter has low polarization dependent loss,
which means that it is ideal for use in polarization-dependent optical devices.
. Low Insertion loss and Low PDL
. Good channel-to-channel uniformity
. Wide Operating Wavelength: From 1260nm to 1650nm
. Wide Operating Temperature: From -40℃ to 85℃
. High Reliability and Stability
. Stability Telecordia GR-1221 and GR-1209
Specifications:
|
Parameter |
Unit |
Specification (P Grade) |
||||||
|
Operation Wavelength |
nm |
1260～1650 |
||||||
|
Channel Number |
|
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
2x128 |
|
Insertion Loss (Max.) |
dB |
4.5 |
7.5 |
11.2 |
14.6 |
17.5 |
21.5 |
25.8 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.5 |
3.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
1.0 |
|
Return Loss |
dB |
≥55/50 |
||||||
|
Directivity |
dB |
≥55 |
||||||
Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB
Application：
. Fiber Optic Equipment and Systems
. CATV Systems
. Local Area Network, PON, and FTTH
. Fiber Sensors
