Description

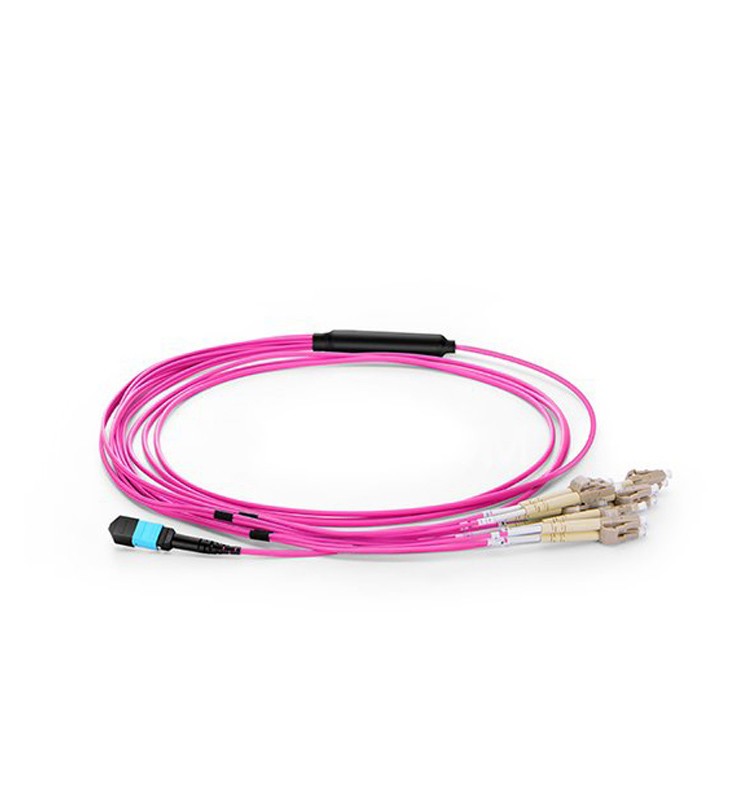

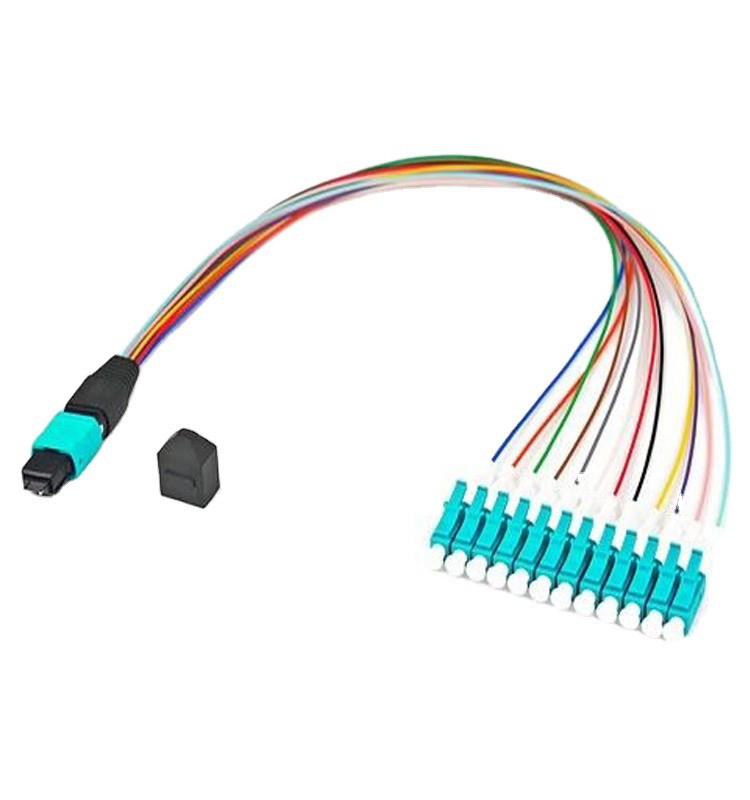

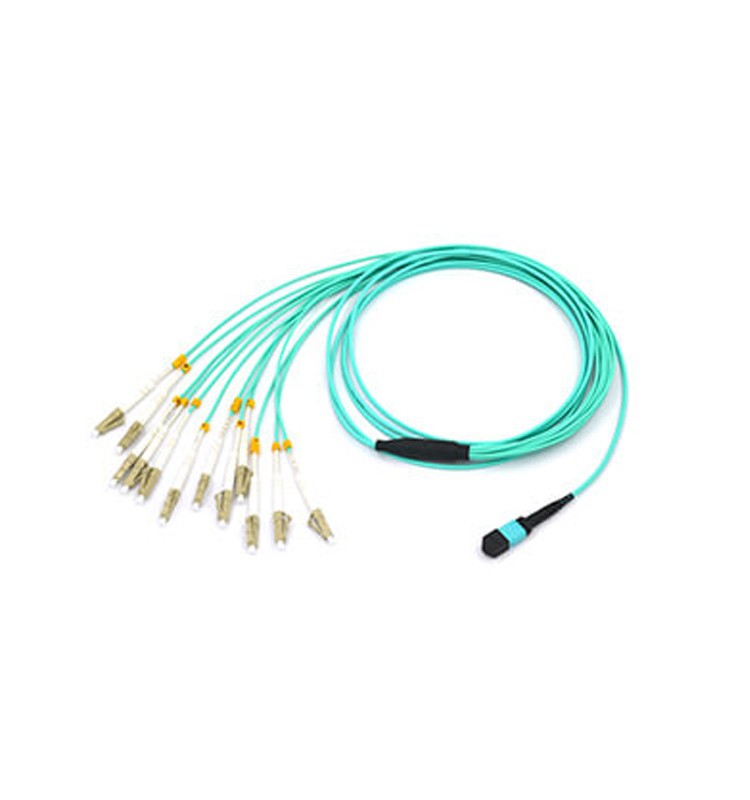

QYY- OM3 OM4 8-24 Cores 2.0mm Fiber Optic Patch Cord Patch Cord MTP-LC Multi Mode
Feature：
. 100% pre-terminated and tested in factory to ensure transfer performance
. Rapid configuration and networking, reduce installation time
. Supports 40G and 100G network applications
. Jacket material: LSZH, OFNR, OFNP available
. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Parameters：
High Performance in IL & RL
4,8,12 and 24 fiber connector terminations and assemblies
Designed for low loss and standard loss SM and MM applications
Economical solution for mass-termination of fiber
Suitable for MPO/MTP application
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Compliant to directive 200/95/EC(RoHS)
MPO connector complies with IEC-61754-7
| Model | SM | MM | |
| Connector A:MPO/MTP | |||
| Connector Fiber Count | 8,12,24,48 Core | ||
| Polish | PC,APC | PC | |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
| Connector B:LC,LC Uniboot,SC,FC,ST | |||
| Polish | PC,APC | PC | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥35dB | |
| Durability(500 Matings) | ≤0.2dB | ||
