Description

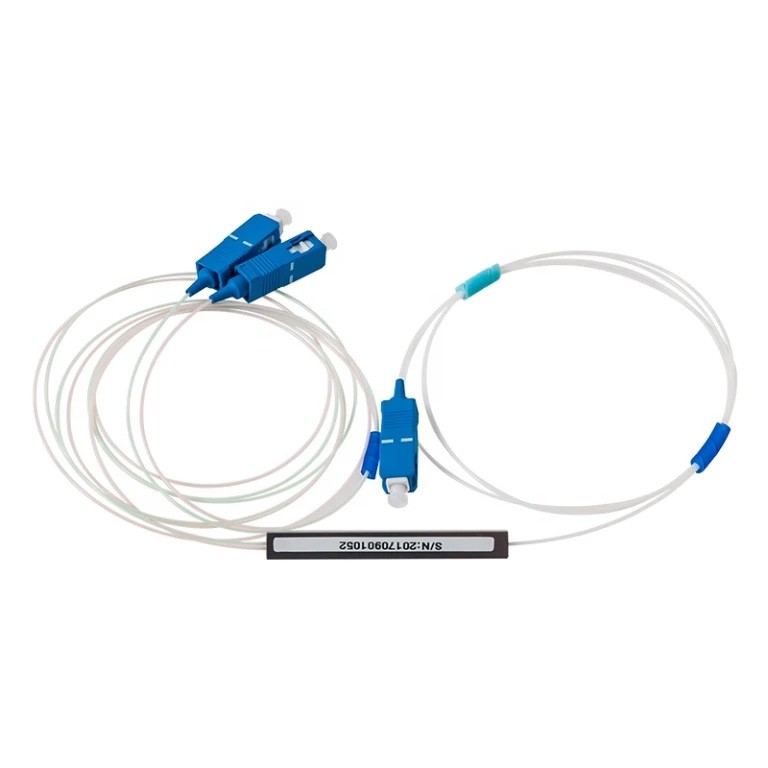

QYY- FTTH 1x2 Mini Type SC/UPC Fiber Optic PLC Splitter Use For Passive Optical Netwo
Features：
. low IL&PDL
. uniformity&high reliability
. 1260~1620nm wavelength
. Steel Tube PLC Splitter :1x2,1x4,1x8,1x16,1x32,1x64,2x2,2x4,2x8,2x32,2x64
. Excellent Environmental Stability
. Excellent Mechanical
. Stability Telcordia GR-1221 and GR-120
Specifications:
|
Application
|
FTTH
|
|
Connector type
|
SC
|
|
End face type
|
UPC
|
|
Fiber type
|
SM
|
|
Insertion loss
|
4.1dB
|
|
Return loss
|
≥45dB
|
|
Color
|
Blue
|
|
Ferrule
|
CCTC ceramic ferrules
|
|
Fiber diameter
|
0.9mm
|
|
Operating Wavelength
|
1260nm~1650nm
|
Application：
. Fiber to The Home (FTTH)
. Passive optical networks (PON)
. Local Area Networks (LAN)
. Cable Television (CATV)
. Test Equipment
