Description

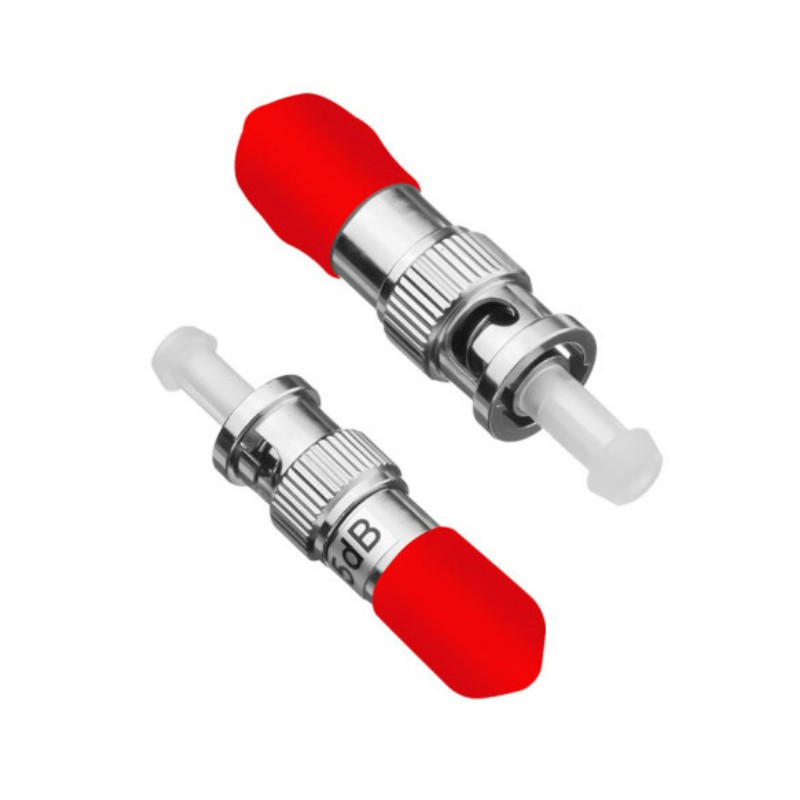

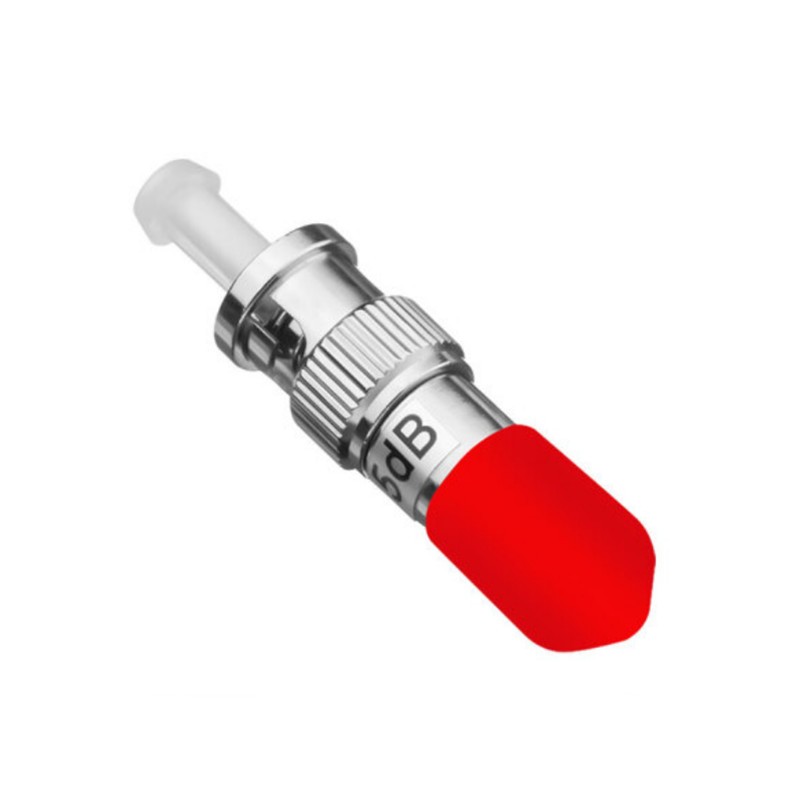

QYY- ST Fixed Fiber Optic Attenuator, Single Mode, Male-Female, 1~25dB Optional
Features:
. High size precision
. Fast and easy connection
. Zirconia ceramic alignment sleeve
. High wearable
. Good repeatability
. Each Attenuator 100% tested for low insertion loss
Specifications:
| Fiber Connector | FC/UPC | Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Male to Female | Transfer Mode | SMF |
| Attenuation | 1~25dB | Operating Wavelength(nm) | 1260~1620 |
| Attenuation Accuracy | 1-9dB±0.5dB, 10-25dB±10% | Return Loss | ≥45dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Humidity | 95%RH | Operating Temperature Range | -40 to 80°C (-40 to 176°F) |
| Storage Temperature Range | -40 to 85°C (-40 to 185°F) | ||
