Description

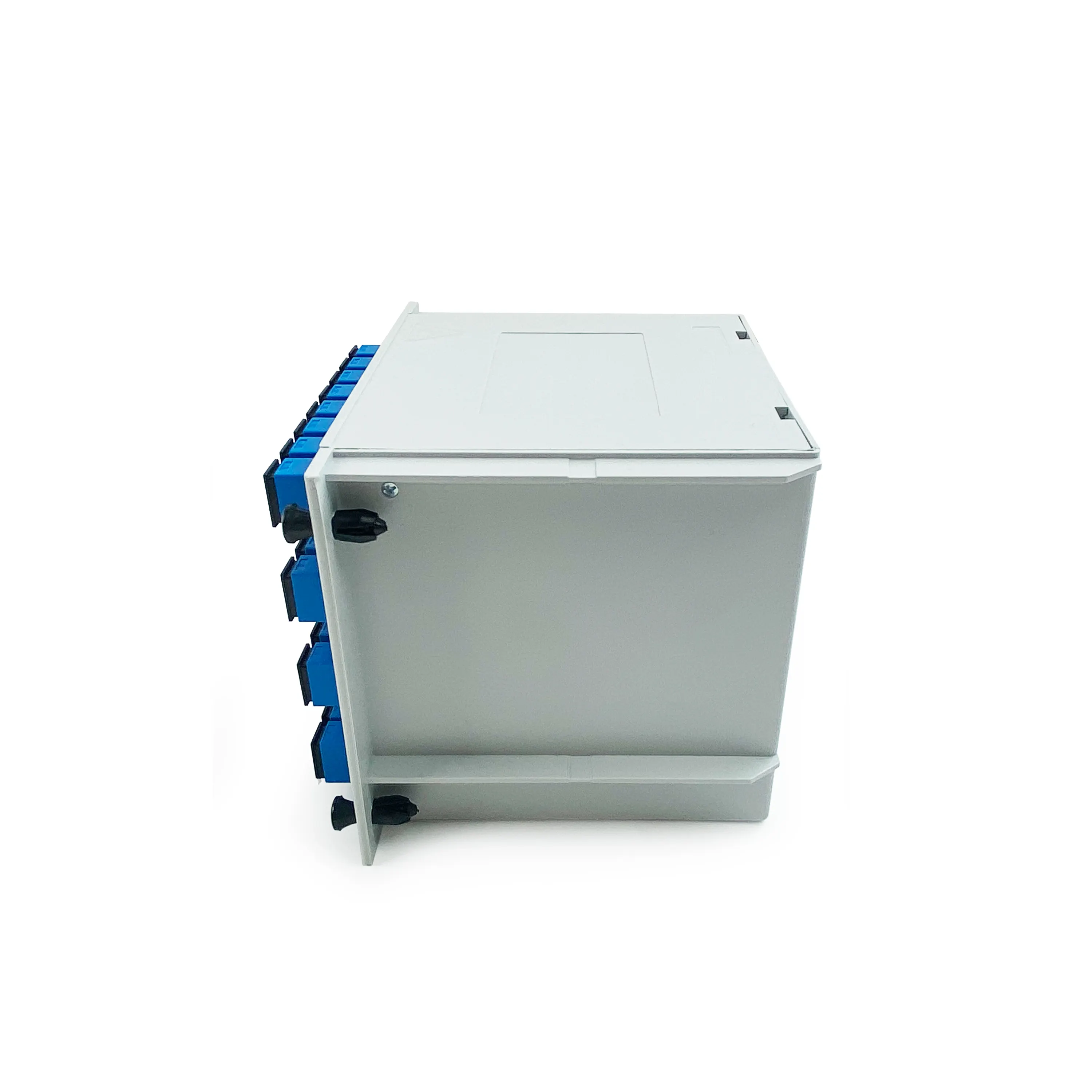

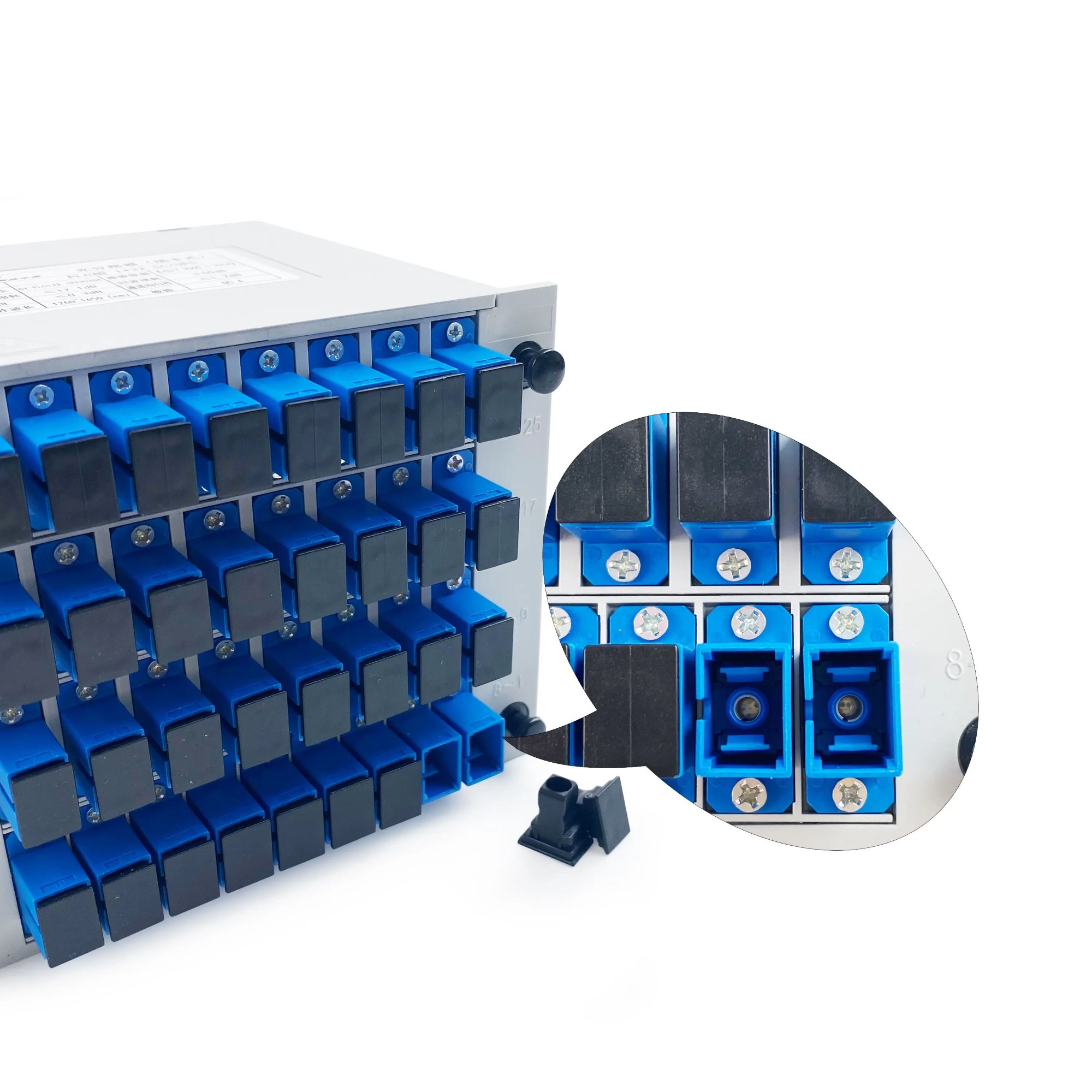

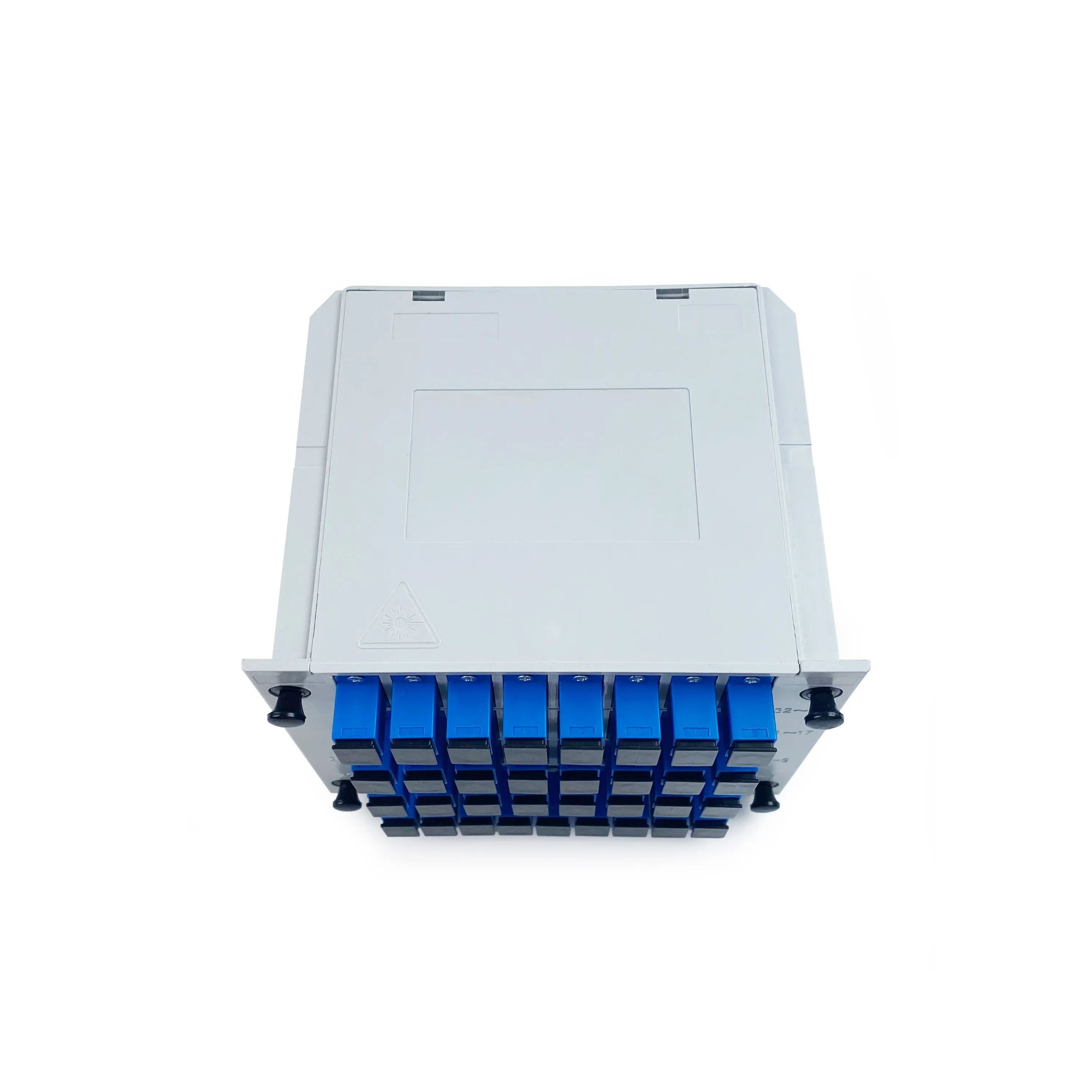

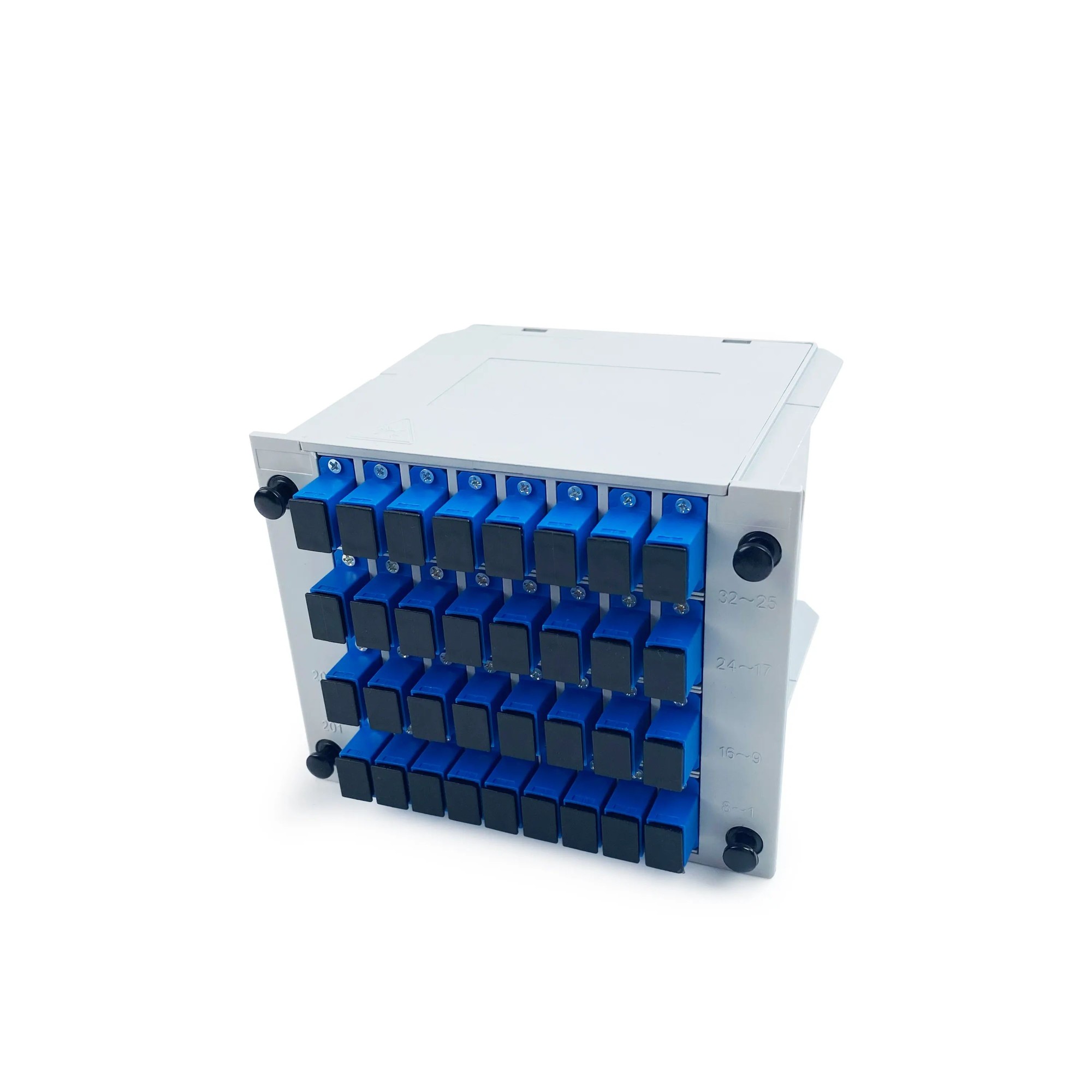

QYY- 1x32 SC/UPC Splitter LGX Box Connector
Specifications:
| Parameter | Unit | Index |
| Require Wavelength | nm | 1260~1650 |
| Operating Wavelength | nm | 1310/1490/1550 |
| Insertion Loss | dB | ≤4.2 |
| P.D.L | dB | ≤0.3 |
| Return Loss | dB | ≥50（UPC），≥60（APC） |
| Directivity | dB | ≥55 |
| Uniformity | dB | ≤0.7 |
| Package Dimension | mm | 130×100×25 |
| Connector | SC | |
Application：
. Wide Operating Wavelength
. Wide Operating Temperature
. High channel counts
. Excellent parameters on IL and RL
. Exceptional reliability and stability
. Convenient engineering applications
