Description

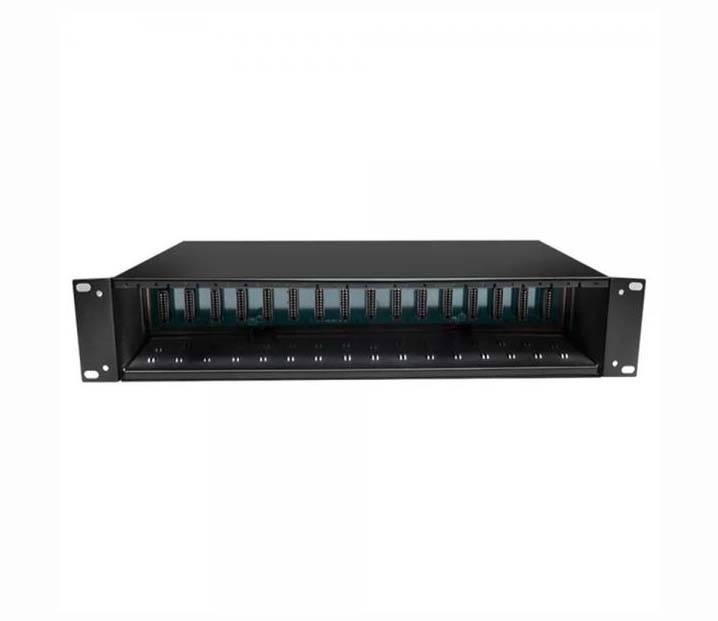

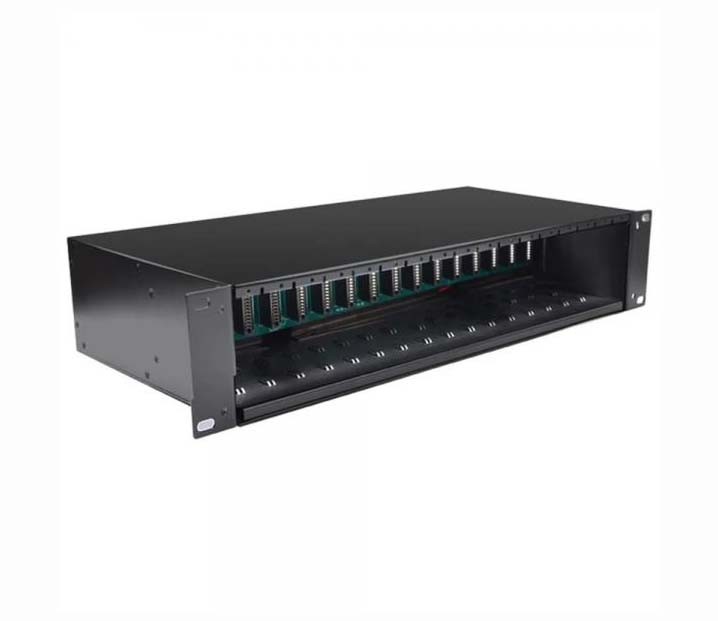

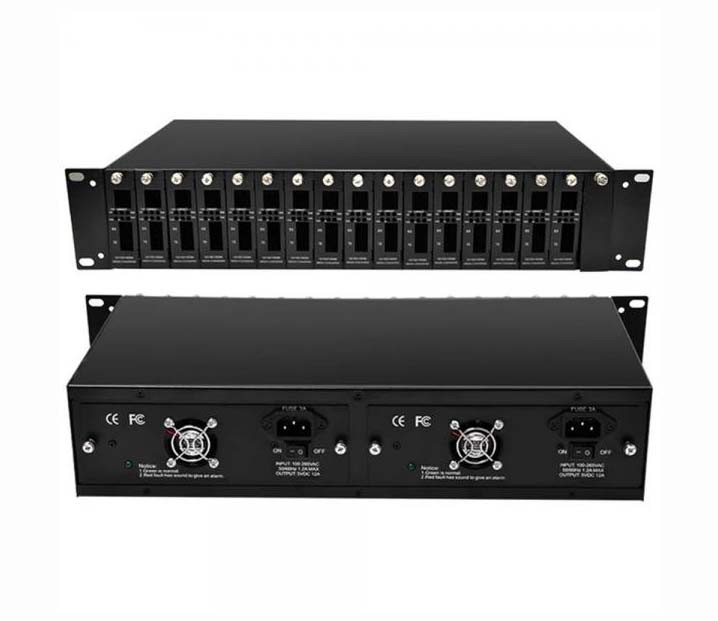

QYY-16 Slot Card Fiber-to-Ethernet Media Converter
Feature:
. 10/100/1000Base-T(X) to 1000Base-FX Centralized Converter
. Built-in power supply, without power adapter
. Supports Full/Half Duplex, auto-negotiation, MDI/MDI-X on TX ports
. Configurable through console, Web or SNMP
. Support Vlan and QoS
. Reliable and stable performance
. Free fall, Shock and Vibration Stability
. Standard: Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
. Built-in IP-based Web Interface
. Supporting remote and local management
. Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode
. Store and Forward mechanism
. Manual IP address setting/DHCP client for IP address assignment SNMP v1 / v2c monitor / private Enterprise MIB
. Event trap and SNMP trap support
. speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port
. Supports Port Status / Ethernet Statistics on both TP and Fiber intertace
. Supports Maximum frame size to 16K bytes
. Loop detection / Broadcast / Multicast / Unicast storm control
. Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
. 802.1p Tag Priority / IP address priority / IP DSCP option in
. Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies
. TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
. 16 TCP / UDP Filter groups
. Password setting, IP setting and devices description setting through Planet Smart discovery utility
. Firmware upgrade via remote Web interface
. External DC 5V 2A power supply
. LED indicators for easy network diagnosing
. Reset Button at the front panel for the factory default reset
. Choice of fiber-connector from SC, LC, WDM, multi-mode /single-mode fiber /1000Base-SX / LX SFP module
Specification：
. UTP Rate: 10/100/1000Mbps
. Fiber Rate: 1000Mbps
. Fiber Port: Simplex SC, ST, FC, SFP available
. Fiber Wavelength: 1550nmTx/1310nmRx
. Fiber Mode: Singlemode
. Distance: 20km
. Power Supply: Built-in
. UTP cable: Cat. 5/5e/6 UTP cable (the max distance up to 100m)
. LED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX
. Operation Temperature: 0 °C~50 °C(Humidity: 5~90% non-condensing)
. Storage Environment: -25°C~+70°C (Humidity: 5~90% non-condensing)
Application：
. FTTH FTTB FTTX Network
