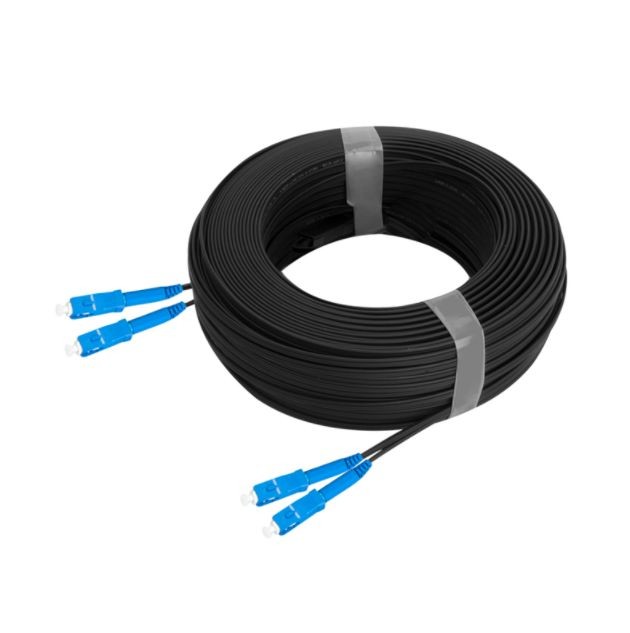

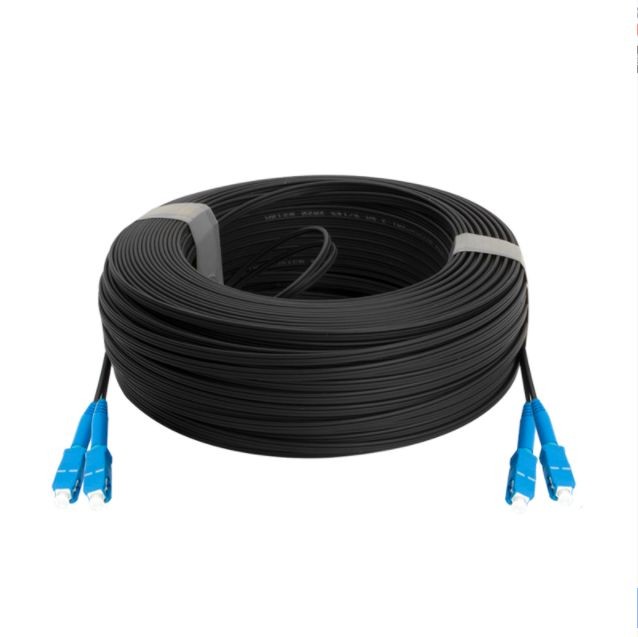

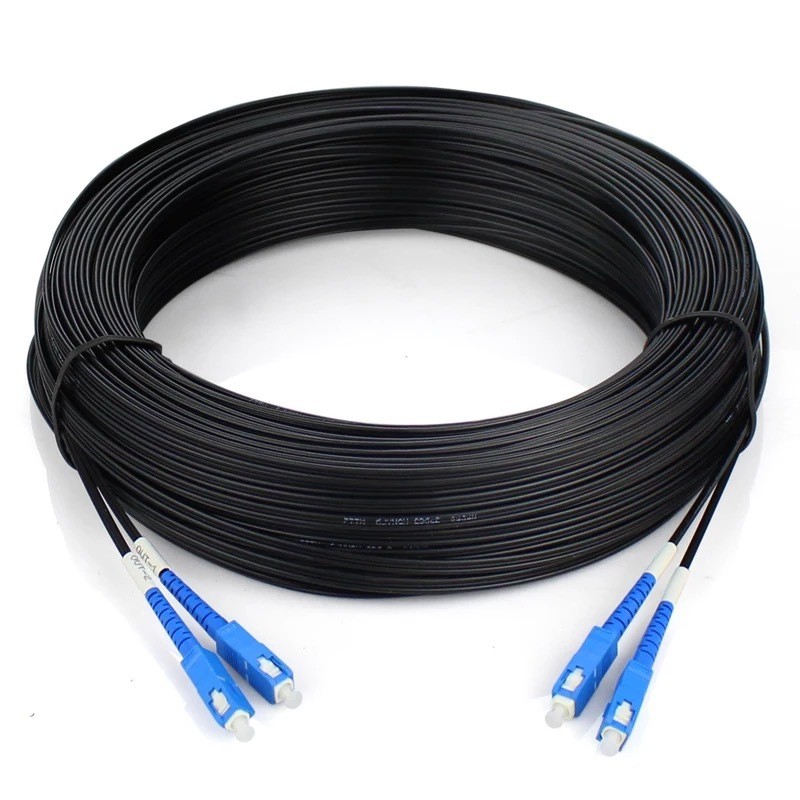

QYY- SC/UPC-SC/UPC SM 2 Cores G657A1

  • Material: Outdoor Type SC/UPC-SC/UPC SM 2 Cores G657A1 ,LSZH FRP FTTH drop Patch Cords
  • Jacket:LSZH/PVC
  • fiber diameter: 9/125um SM
  • End Face Type:SC PC/APC/UPC
  • Fiber Optic Drop Cable,Fiber PATCH CORD, Fibera Optica Patchcord Sx Core Sm Indoor Outdoor Fiber Optic Drop Patch Cords
    Inquiry Send Email

    Description

    QYY-  SC UPC-SC UPC SM 2 Cores G657A1


    Features:

    1. The body is made of high quality engineering plastic with good strength;

    2. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

    3. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber

    4. Simple structure, light weight and high practicability

    5. Novel flute design, easily strip and splice, simplify the installation and maintenance

    6. Low smoke zero halogen and flame retardant sheath

    7. Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber storage space.


    Connector Type
    SC
    Fiber Type
    SM,  simplex
    Jacket color
    white fiber diameter 9/125um SM
    Operation temperature
    -25~+85°C Storage Humidity
    95%RH (Non-Packaging)

    Application:

    1. FTTH system

    2. Indoor riser level and plenum level cable distribution

    3. Interconnect between instruments, communication equipments
