Description

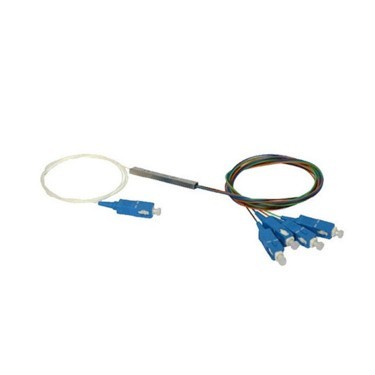

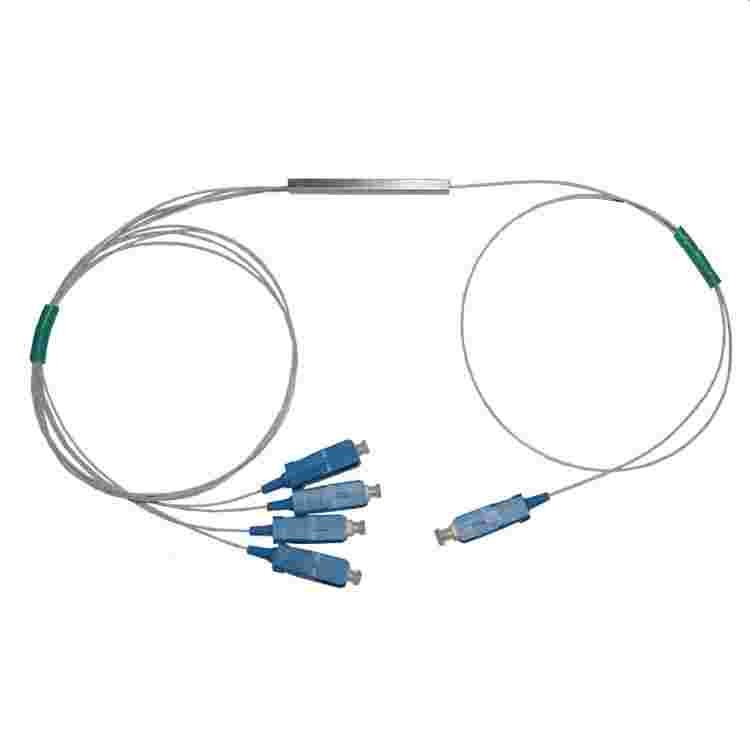

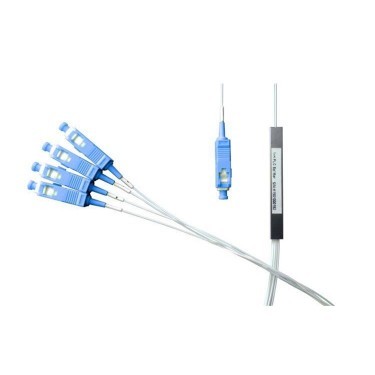

QYY- 1x4 SC UPC PLC 0.9mm Optical Splitter
Features：
1. High Quality PLC design features a protective metal casing around the fibers
2. PLC splitting mechanism divides input signal into equal parts across all output fibers
3. 900µm loose tube fiber for easy stripping, splicing, or terminating
4. Also available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Specifications:
Parameters
1×2 1×4 1×8 1×16 1×32 1×64
1260~1650
Fiber Type
G657A1 or customer specified
≤4.1 ≤7.4 ≤10.5 ≤13.8 ≤17.1≤20.4
Uniformity(dB)
Polarization Dependent Loss(dB)
≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4
Directivity(dB)
Fiber Length (m)
1.0(±0.1)or customized
Operating Temperature(℃)
-40~+
Application：
. Fiber Optic Equipment and Systems
. CATV Systems
. Local Area Network, PON, and FTTH
. Fiber Sensors
