  • QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate
  • QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate
  • QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate
  • QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate
QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate

QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate

  • Name:FB-2D 2 ports SC LC Fiber Optic Wall Outlet Faceplate
  • Fiber Type:Single Mode(SM) & Multi Mode(MM)
  • Tensile Strength:>50N
  • Connecting Adaptor:SC & LC
  • fibre faceplate,fiber interface panel,ROK-MB,Optical fiber panel
    Inquiry Send Email

    Description

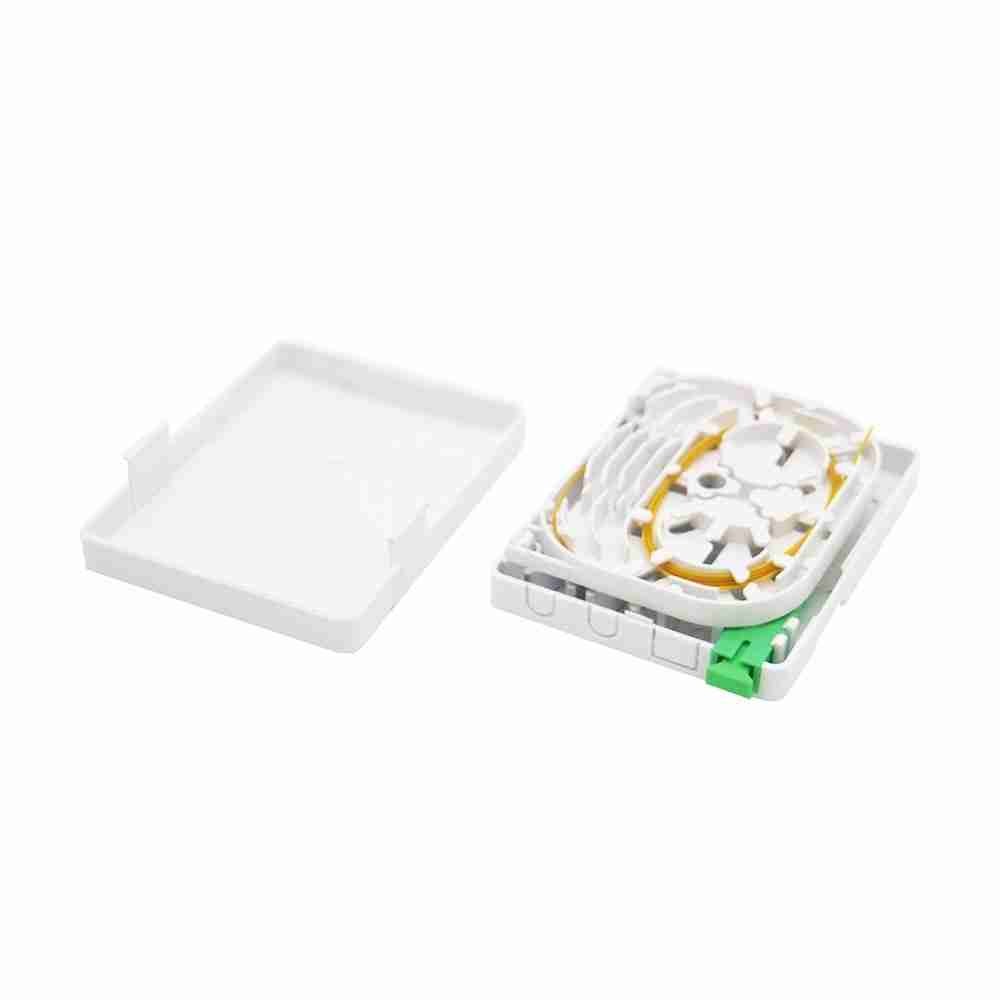

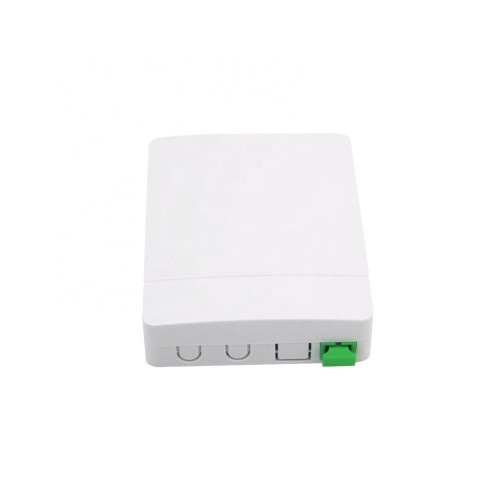

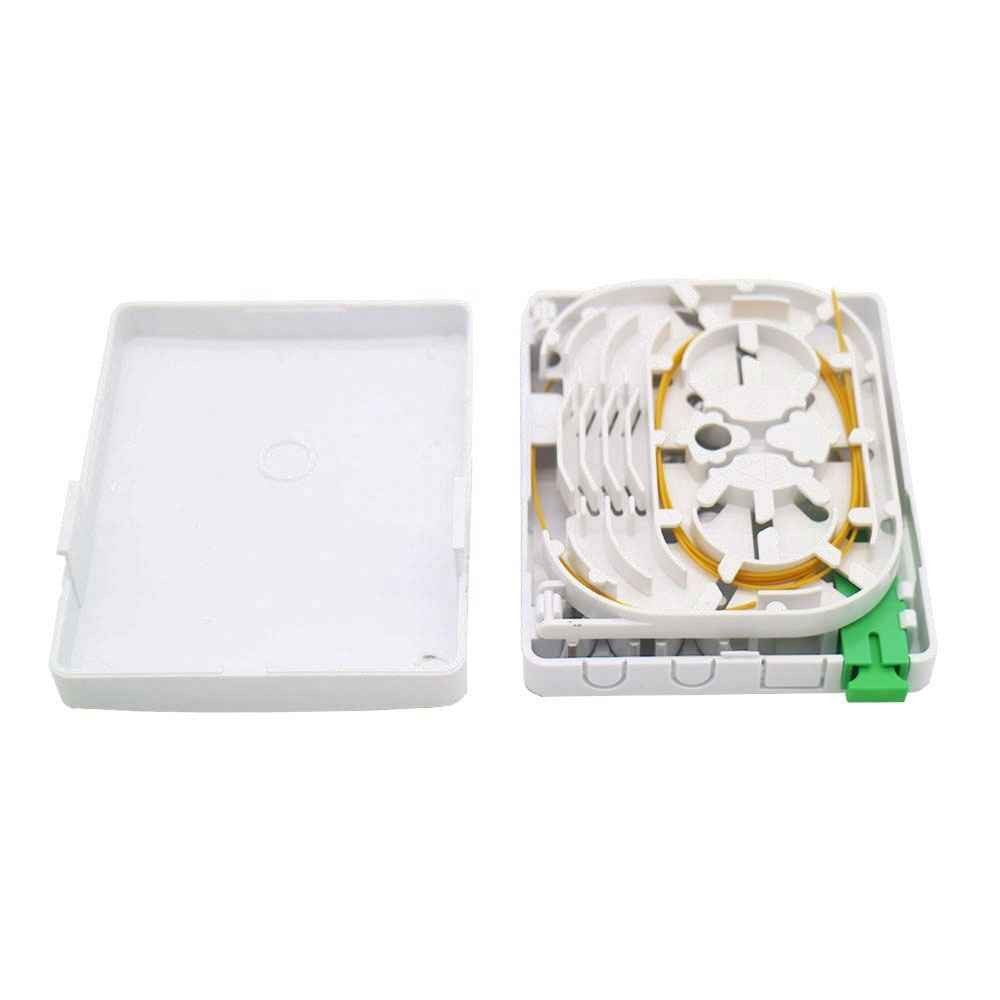

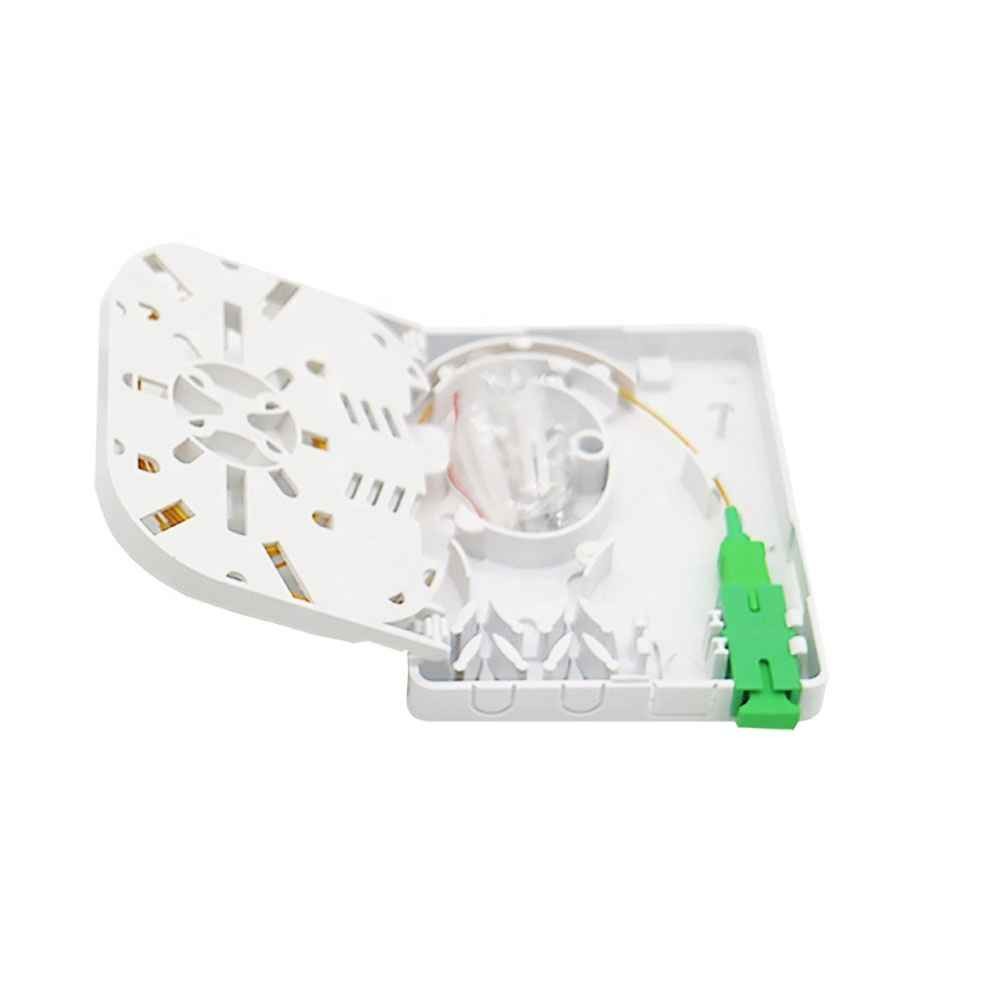

    QYY- 2 ports SC LC Fiber Optic Wall Outlet Faceplate



    Features:

    . Dust-proof design with IP-45 Protection level.

    . Integrated with cable termination and management rods.
    . Manage fibers in a reasonable fiber radius condition.
    . Easy to maintain and extend the capacity.
    . Suitable for the wall mounted installation.
    . Embedded type surface, easy for installation and removal.
    . 2 port cable entrance for drop cable or patch cable.



    Specifications:

    Application

    3.0x2.0mm Drop Cable or Indoor Cable

    Fiber Cladding Diameter
    125um(G652D&G657A
    Fiber Diamete
    250um&900um
    Insertion Loss
    <0.2dB
    Return Loss
    >50dB(UPC), >60dB(APC)
    Bending Radius(mm)
    > 15
    Operation Temperature
    -40~60 (°C)
    Storage Temperature
    -40~85 (°C)
