Description
QYY- Indoor Multi-Core Micro Fiber Optical Cable ≥24 Core
Features：
. High integration with bare optical fiber.
. Aramid yarn reinforcing element provides the optical cable with excellent tensile properties.
. The outer sheath material has the advantages of corrosion resistance, waterproof, UV protection, flame retardant,
environmental protection and so on.
Optical Specification：
Attenuation
Full injection bandwidth
Effective bandwidth
10G Ethernet link length
Minimum bending radius
Condition
1310/1550nm
850/1300nm
850/1300nm
850nm
850nm
/
Typical value
Max
Typical value
Max
Unit
dB/km
dB/km
dB/km
dB/km
MHZ.km
MHZ.km
m
mm
G 652D
0.36/0.22
0.5/0.4
-
-
-
-
-
16
G 657A1
0.36/0.22
0.5/0.4
-
-
-
-
-
10
G 657A2
0.36/0.22
0.5/0.4
-
-
-
-
-
7.5
50/125
-
-
3.0/1.0
3.5/1.5
≥500/500
-
-
30
62.5/125
-
-
3.0/1.0
3.5/1.5
≥200/500
-
30
OM3
-
-
3.0/1.0
3.5/1.5
≥1500/500
≥2000
≤300
30
OM4
-
-
3.0/1.0
3.5/1.5
≥3500/500
≥4700
≤550
30
MPC
Fiber type

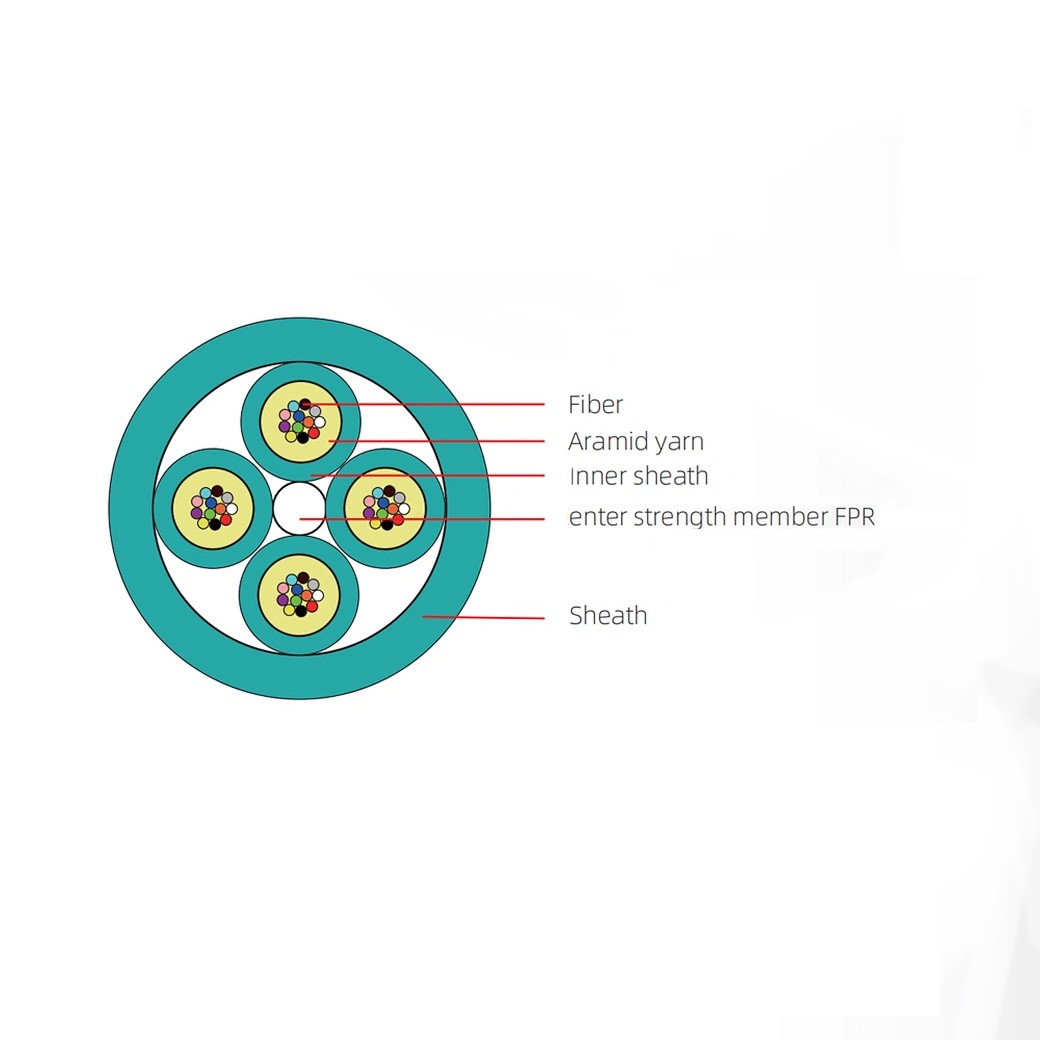

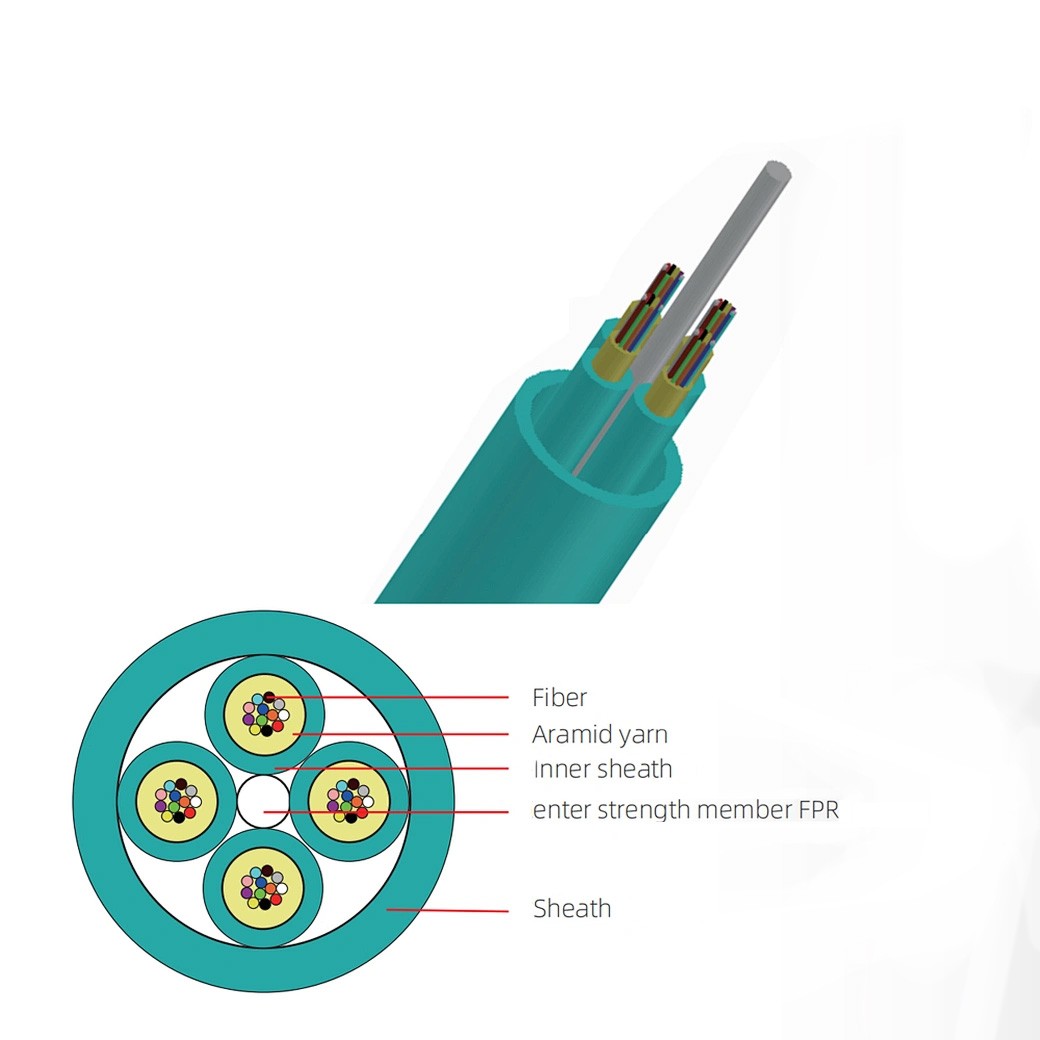

Structural Parameters：
Cable model
Cable outer diameter
(mm)
Weight (kg/km)
Allowable tensile force
Long / Short term
（N）
Allow squash Force
Long / Short term
（N）
Bending radius
Static / dynamic
（mm）
PVC sheath
LSZH sheath
MFC-24
9.6±0.3
64
72
150/500
200/800
10D/20D
MFC-36
9.6±0.3
64
72
150/500
200/800
10D/20D
MFC-48
9.6±0.3
64
72
150/500
200/800
10D/20D
MFC-72
11.3±0.3
92
103
150/500
200/800
10D/20D
MFC-96
13.3±0.3
129
146
150/500
200/800
10D/20D
