QYY- Mini OTDR fiber optic tester Pon VFL Opm

QYY- Mini OTDR fiber optic tester Pon VFL Opm

Name：Mini OTDR 1310/1550nm 26/24dB touch screen Handheld multi functions fiber optic tester Pon VFL Opm

Connector Type： SC FC LC ST

Dimensions：210*112*67mm

Wavelength： 1310/1550nm

Description

QYY- Mini OTDR fiber optic tester Pon VFL Opm

Features:

. Two wavelength: 1310/1550nm or single wavelength 1310/1550/1610/1625nm
. Measurement distance: 80km

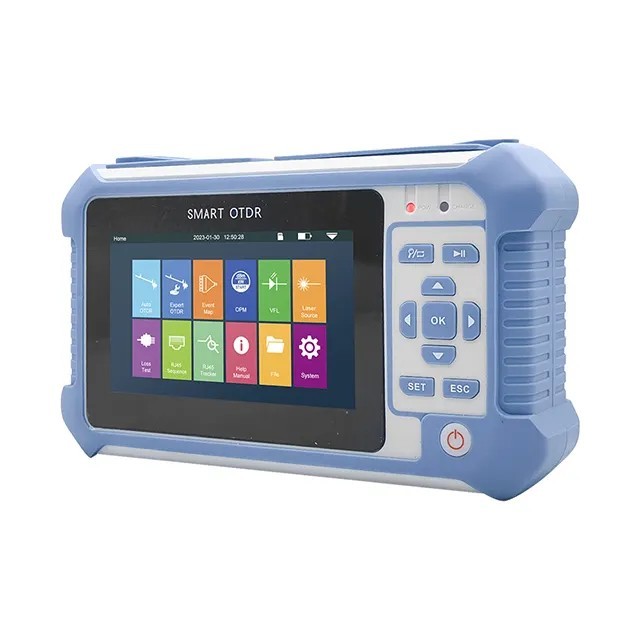

. Capacitive touching screen, clear, sensitive touch and quick response, can operate by both key and touching screen.
. Test record is saved as SOR format.
. Standard function: OTDR, Event Map, Optical Power Meter , Optical Light Source, VFL, Optical Loss Test, RJ45 Sequence,Flash Light
Optional function: RJ45 Tracker
. Keyboard input, can edit and save file name and line number.
. Support user upgrading.

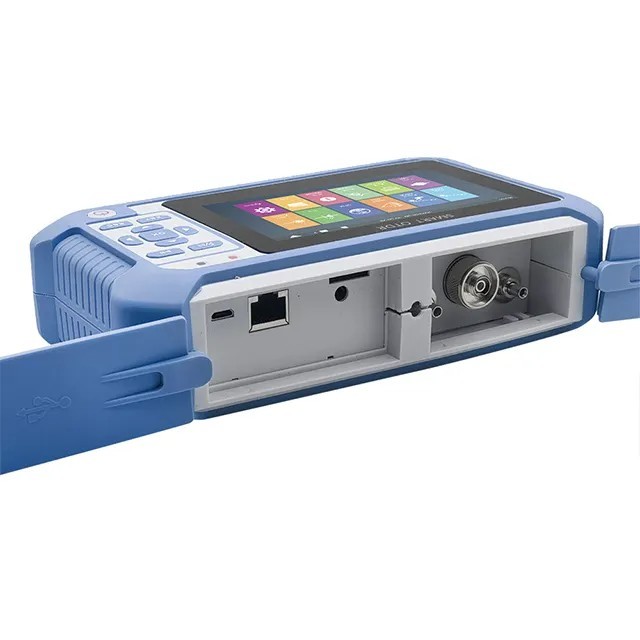

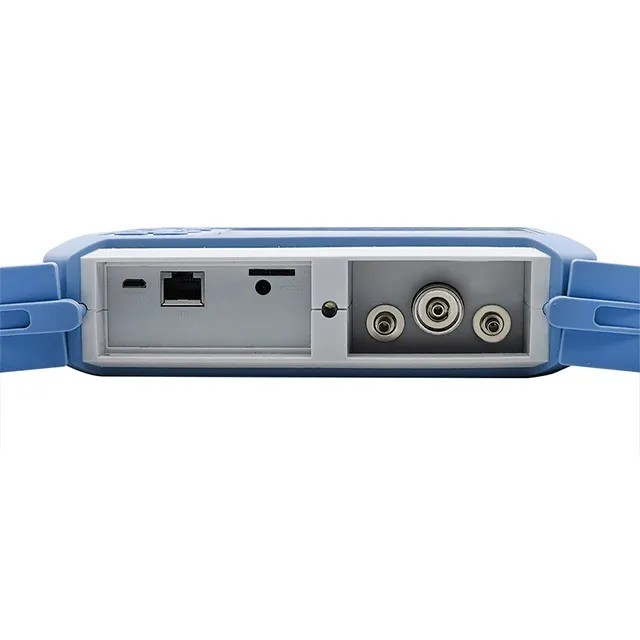

. With USB and TF card data interface, easy to export curve data.
. Fast startup, only 2 seconds to test

Specifications:

OTDR
Wavelength(nm)	1310/1550nm	1310nm	1550nm	1610nm	1625nm	1650nm
Dynamic Range(dB)	24/22dB	24dB	22dB	22dB	22dB	22dB
Type of Fiber	9/125um SM
Type of Connectors	FC/PC/; SC/PC (FC/APC SC/APC--Optional)
Peak Value of laser	>=30mW
Unit	Meter/ inch/ mile
Dead Zone of Reflection	2m
Dead Zone of attenuation Event	12m
Accuracy Distance (Reflection Event)	About ±(1m+2 10(-4) distance)
Storage of records	200 groups

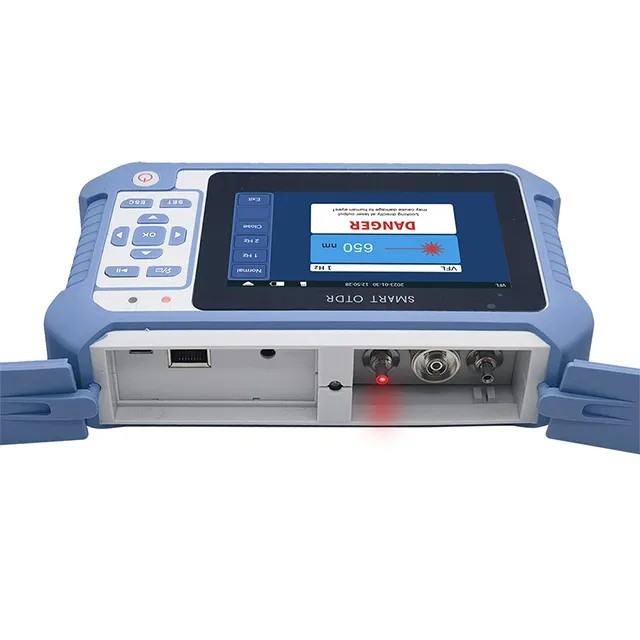

Visual Fault locator（VFL）
Wavelength (nm)	650nm
Output power	>=10mW
Mode	CW，1Hz，2Hz
Fiber type	SM
Optical Power Meter
Measurement range dBm	-70～+10 dBm			-50～+26 dBm
Wavelength range（nm）	800～1650
Calibrated wavelength	850/980/1270/1300/1310/1490/1550/1577/1625/1650
Detector	InGaAs
Accuracy	<±3% （-10dBm、22℃）
Resolution	Linearity：0.1%，Non-linearity：0.01dBm
Connector	Changeable FC/PC SC/PC ( ST as Optional)
Optical Light Source
Emitter	FP-LD
wavelength (nm)	1310/1550nm
Connector	FC/PC（SC/ST as optional）
Output power	≥-5dBm
Output stability(dBm)	±0.04@20℃@15min
Modulation	CW/270Hz/1KHz/2KHz
Fiber type	SM
Optic Loss
Connector	FC/ SC
Test Range	0-30dB
Accuracy	10%
Others
LCD	3.97inch,800*480pixels, IPS screen
Battery	Lithium-ion battery, >5000 tests
Temperature	Work temperature: -5 ~ 50 ° C, storage temperature: -10 ~ 60 ° C
Humidity	0～85%(Non-condensing)
Dimensions（mm）	185×105×50
Weight(g)	530
