Description

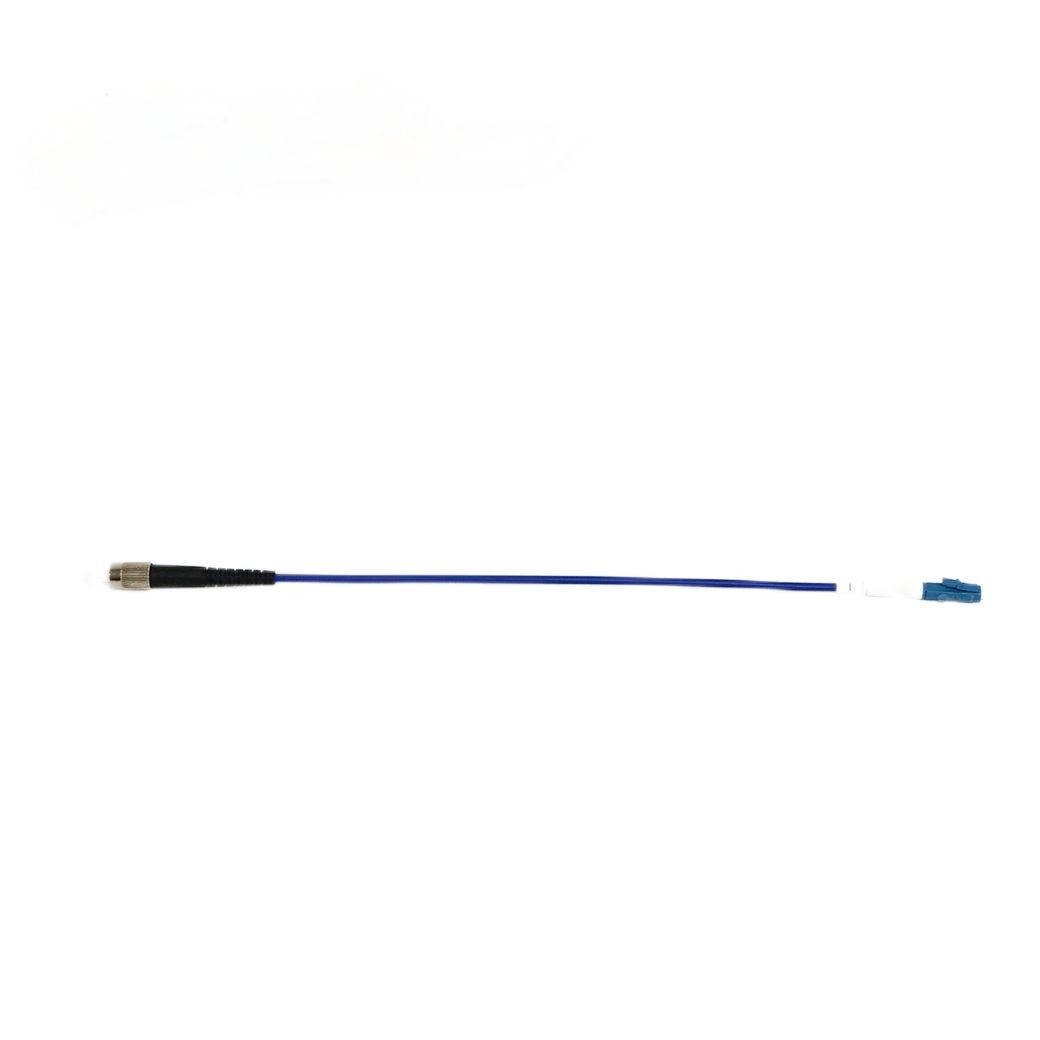

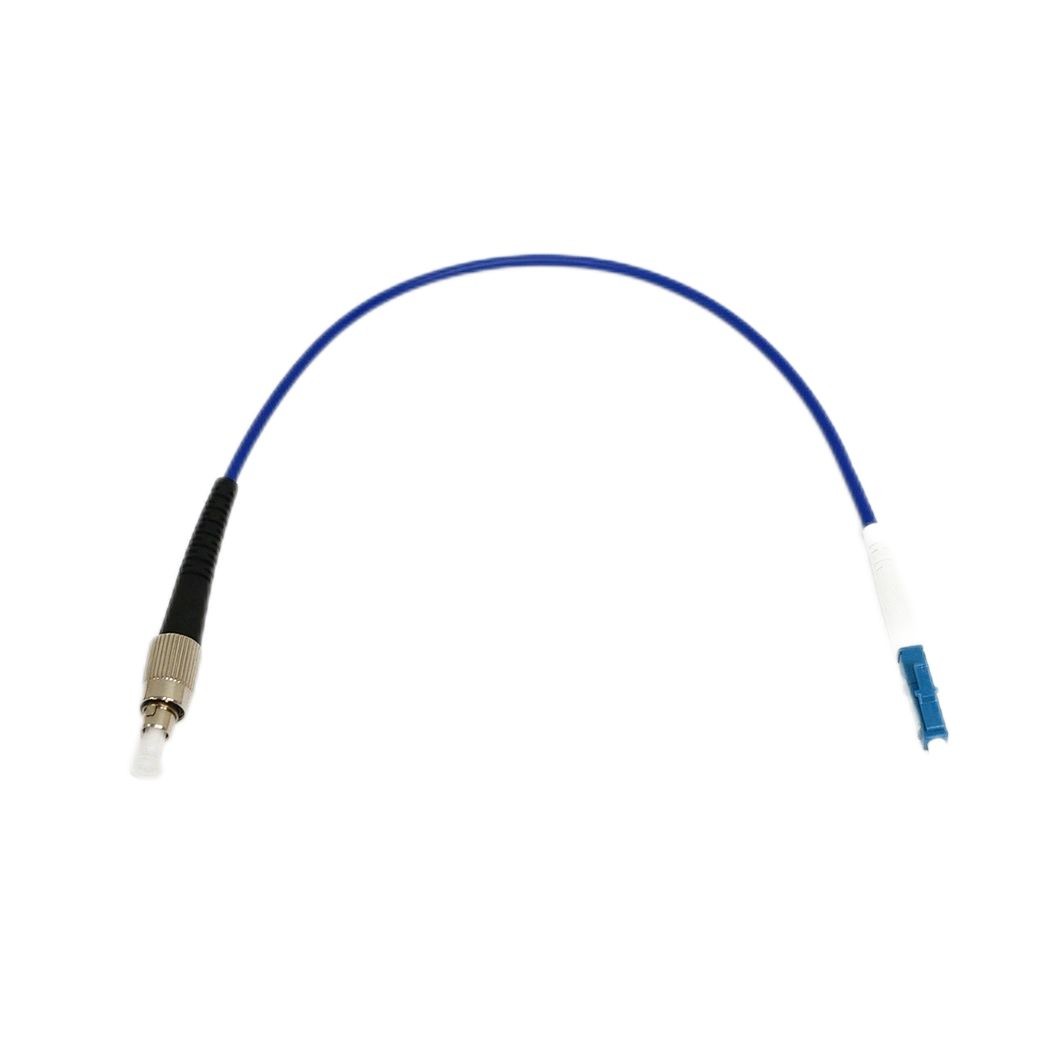

QYY-FC Armored Fiber Optic Patch Cord/LSZH
Features:
. Good exchangeability
. Good Durability
. High temperature stability
. Low insertion loss and High back reflection loss
. Compliant to IEC, TIA/EIA, NTT and JIS specifications
Application：
. Gigabit Ethernet
. Video; Multimedia; CATV
. Premise installations
. Active device termination
. Telecommunication networks
. Local area networks
Specification:
Specification
Unit
FC, SC, LC/Armored Cable
ST, MU
MT-RJ, MPO
D4
SM
MM
SM
MM
SM
MM
SM
PC
UPC
APC
PC
PC
UPC
PC
PC
UPC
PC
PC
APC
Insertion loss
dB
≤0.3
≤0.2
≤0.3
≤0.2
≤0.3
≤0.2
≤0.2
≤0.3
≤0.2
≤0.2
≤0.3
≤0.3
Return loss
dB
≥45
≥50
≥60
≥30
≥45
≥50
≥30
≥45
≥50
≥35
≥50
≥60
Wavelength
nm
850,1310
850,1310
850,1310
850,1310
Interchangeability
dB
≤0.2
≤0.2
≤0.2
≤0.2
Vibration
dB
≤0.2
≤0.2
≤0.2
≤0.2
Operating temperature
°C
-40~75
-40~75
-40~75
-40~75
Storage temperature
°C
-45~85
-45~85
-45~85
-45~85
Cable diameter
mm
φ3.0,φ2.0,φ0.9
φ3.0,φ2.0,φ0.9
φ3.0,φ2.0,φ0.9
φ3.0,φ2.0,φ0.9
Order Information：
FC
/
UPC
—
LC
/
UPC
/
SM
—
SX
/
3.0
—
1M
1
2
3
2
4
5
6
7
1
Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc.
2
Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male)
3
Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc.
4
Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4
5
Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core...
6
Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc.
7
Cable Length: 3m(Length in meter)
FC/UPC-LC/UPC-SM-SX-3.0mm-1M
