Description

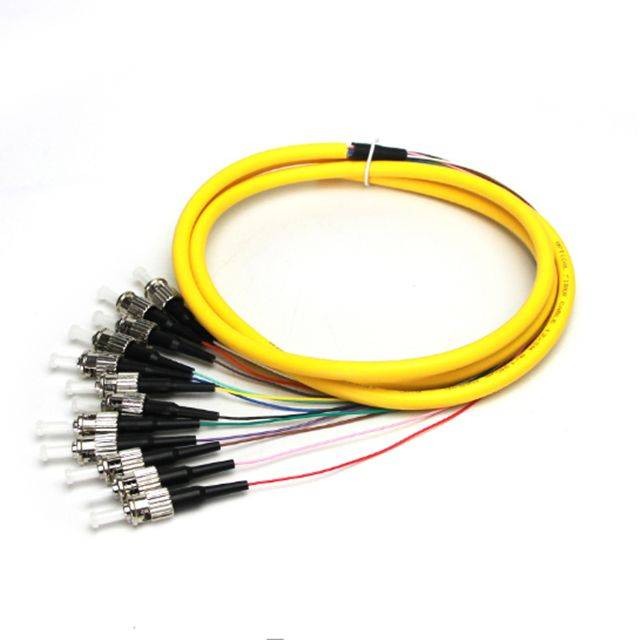

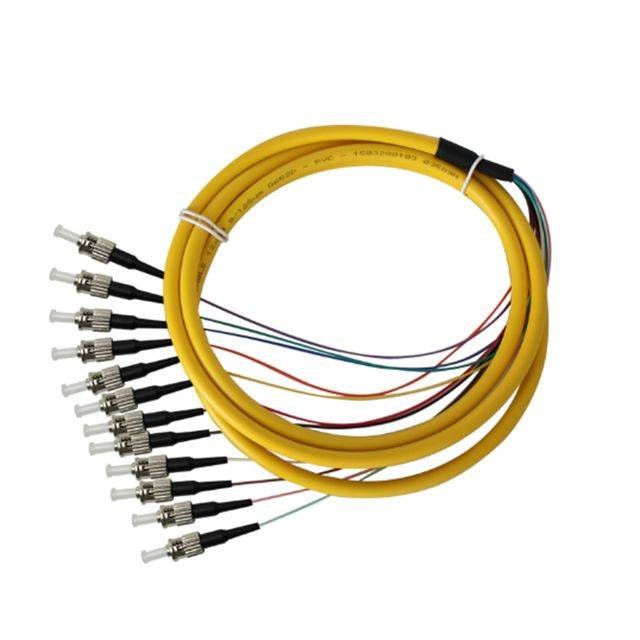

QYY- 9/125 Singlemode Glass ST 12 Fiber Multi Color Pigtails
Features:
. Pre-terminated fiber to reduce installation time and ensure accuracy
. Works for fusion or mechanical splicing on OM3 Multimode 50/125 Fiber
. Perfect for fiber patch panels, fiber distribution units, optical distribution frames, fiber enclosures, fiber distribution boxes
. Used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more
. 12 Pre-terminated LC connectors ready to plug directly into an adapter panel
. Machine polishing ensures highest quality connector terminations and performance
. Low insertion and return loss
. Traceable, standards-based testing procedures
Application：
. Cable jacket: PVC, LSZH, OFNP, OFNR
. Cable length: 1m, 2m, 3m, 5m….customized
. Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
. Active Device Termination
. Industrial, medical & military
. Video transmission, Data transmission
. Telecommunication and Data processing Networks
. FTTH, CATV, LAN, MAN, WAN, Test &Measuremen
. Systems Integration for Long Haul, Metro and Access Network
Specifications:
|
Parameter
|
Unit
|
Bundle multi-fiber connector
|
||
|
SM
|
||||
|
PC
|
UPC
|
APC
|
||
|
Insertion loss (typical)
|
dB
|
≤0.3
|
≤0.2
|
≤0.3
|
|
Return loss
|
dB
|
≥45
|
≥50
|
≥60
|
|
Operating wavelength
|
nm
|
1310, 1510
|
||
|
Exchangeability
|
dB
|
≤0.2
|
||
|
Vibration
|
dB
|
≤0.2
|
||
|
Operating temperature
|
°C
|
-40~75
|
||
|
Storage temperature
|
°C
|
-45~85
|
||
|
Cord diameter
|
mm
|
φ3.0,φ2.0,φ0.9
|
||
|
Fiber count
|
F
|
4, 6, 8, 12, 24, … fibers
|
||
|
Applicable connector
|
|
FC, SC, ST, MU, LC
|
||
