Description

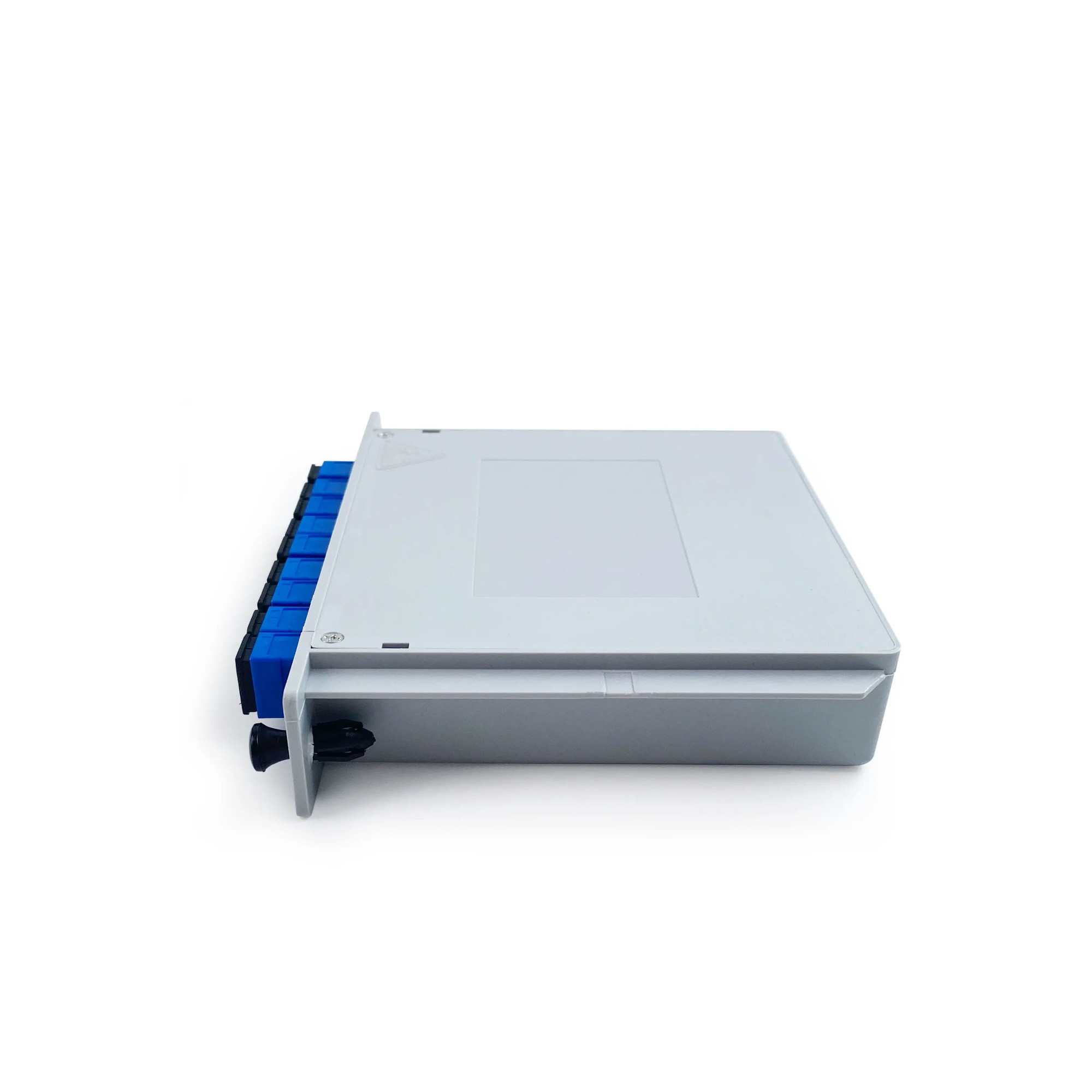

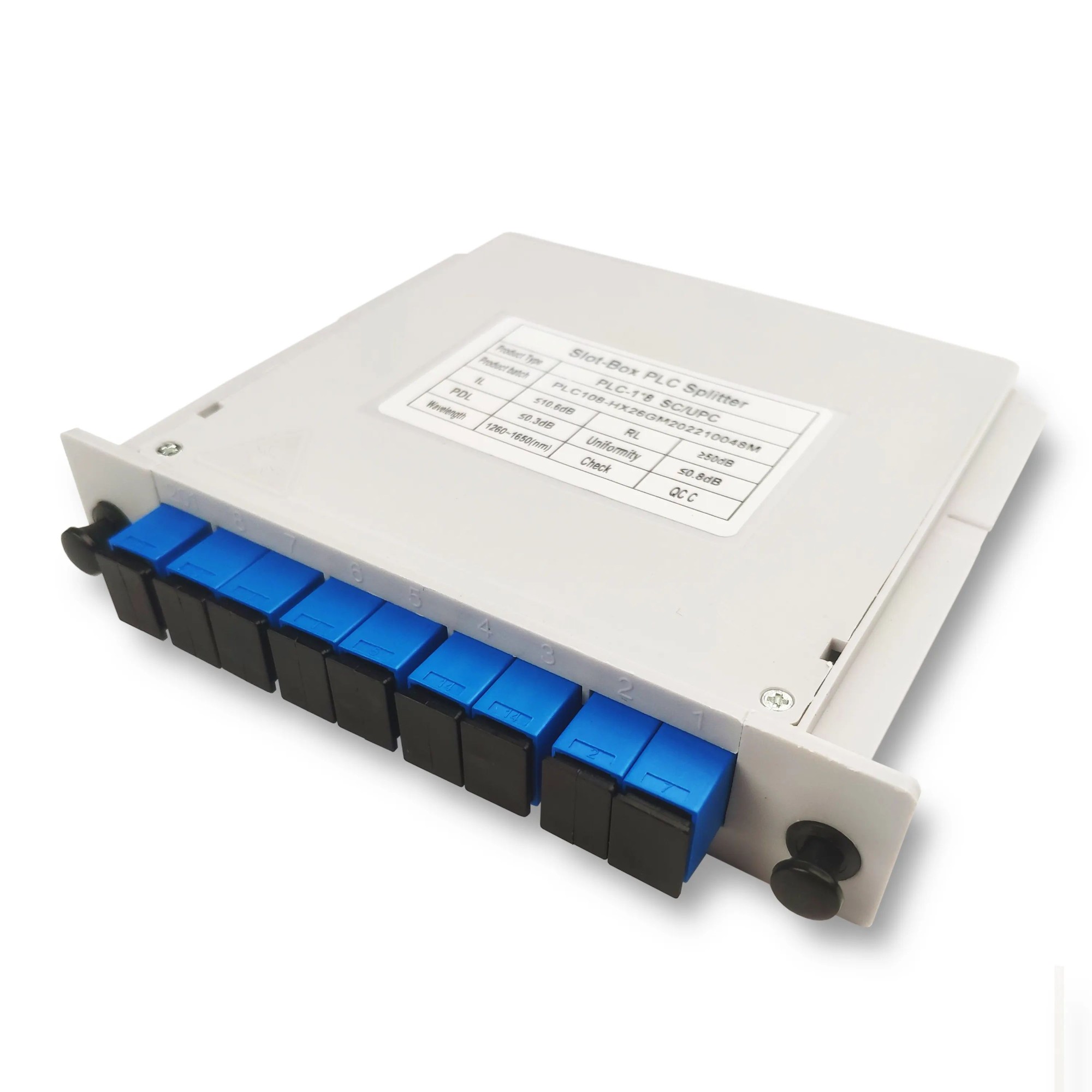

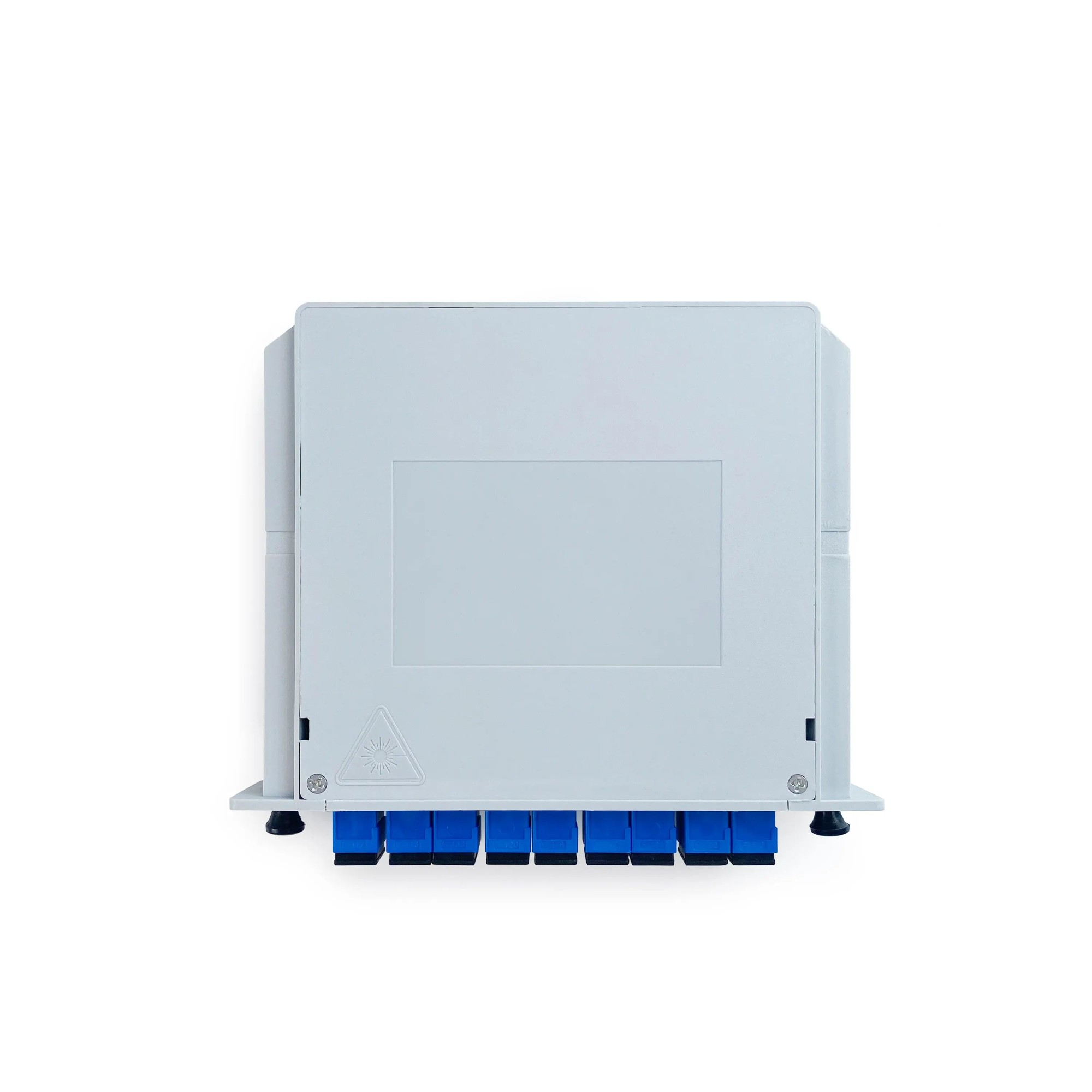

QYY- 1x8 SC UPC Splitter LGX Box Connecto
Specifications:
| Parameters | 1x4 | 1X8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
| Operating Wavelength (nm) | 1260~1650 | ||||||||
| Fiber length | 1m or custom length | ||||||||
| Insertion Loss (dB) Max. | <7.3 | <10.5 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
| Uniformity (dB) Max. | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| PDL(dB)Max. | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
| Directivity (dB) | ≥55 | ||||||||
| Return Loss (dB) | UPC ≥55 APC ≥60 | ||||||||
| Operating Temperature (°C) | -125 | ||||||||
| Storage Temperature (°C) | -125 | ||||||||
| Connector Type | Custom specified | ||||||||
