  • QYY- FHA2 Series Optical Variable Attenuator
  • QYY- FHA2 Series Optical Variable Attenuator
  • QYY- FHA2 Series Optical Variable Attenuator
QYY- FHA2 Series Optical Variable Attenuator QYY- FHA2 Series Optical Variable Attenuator QYY- FHA2 Series Optical Variable Attenuator

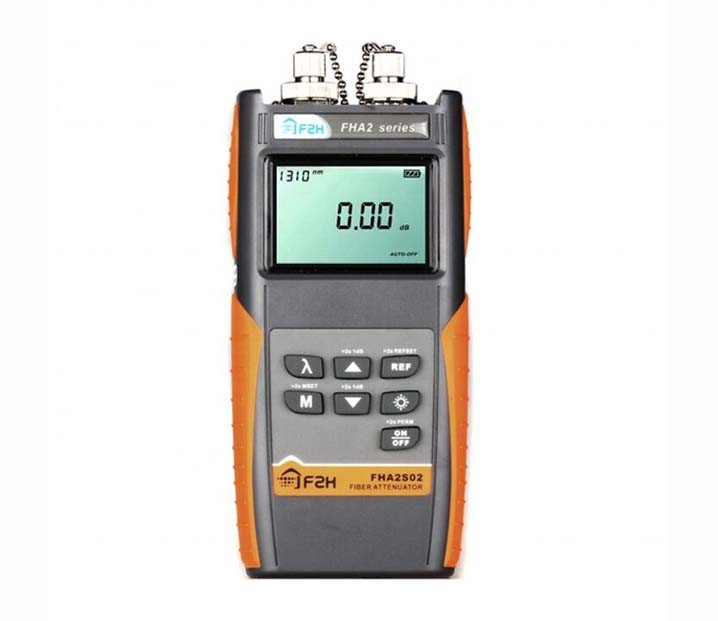

QYY- FHA2 Series Optical Variable Attenuator

  • Model Number:FHA2 Series Optical Variable Attenuator
  • Dimensione:160mmL*76mmW*45mmH·
  • Net Weighte:360g (battery included)e-
  • FHS2 Series Optical Laser Source, FHA2S02 - optical attenuator  , 0-60 dB
    Inquiry Send Email PDF

    Description

    QYY- FHA2S02 optical attenuator, 0-60 dB

    Features:

    1.Easy to use, direct operation
    2.Eye-catching handheld appearance
    3.LCD backlight for easy operation in dark environments
    4.±3dB adjustable output
    5.built-in rechargeable battery
    6.850 and 1300nm available for multimode testing
    7.One-year warranty and recommended calibration interval


    Specification:

    Parameter Meaning
    Attenuation range, dB 3 - 60
    Insertion loss, dB
    Wavelengths, nm 850, 1300, 1310, 1490, 1550
    Wavelengths, nm 1310/ 1550
    fiber type SM 9/125nm
    Linearity, nm ≤0.3
    Accuracy 0.2dB@0~20dB
    0.5dB@20~50dB
    1.0dB@50~60dB
    Return (back) losses, dB >50 (PC connector polishing)
    Maximum input power, dBm 24
    Source of power 2 pcs *AA 1.2B Ni-MH battery
    ( not included in the standard package)
    Operating temperature, °C -10 to +50
    Storage temperature, °C -20 to +60
    Relative humidity, % 0~95 (non-condensing)

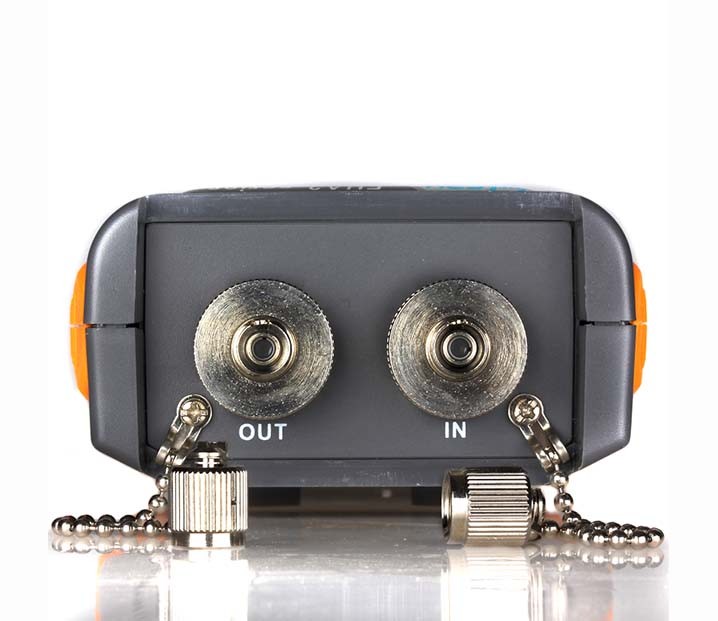

    Connector Interchangeable FC/PC, SC/PC
    FC/APC, SC/APC – must be ordered together with the instrument only
    Dimensions (L x W x H), mm 160 x 76 x 45
    Weight, g 360 (including battery)

    Application:

    1.Telecommunications system maintenance
    2.Cable TV system maintenance
    3.Optical fiber transmission system and testing laboratory

    Standard Accessories:

    2*FC/PC adapters, 2*SC/PC adapters, 2*rechargeable batteries, AC/DC adapter, 3*ceramic sleeves, carrying bag, user manual, test report
