Description

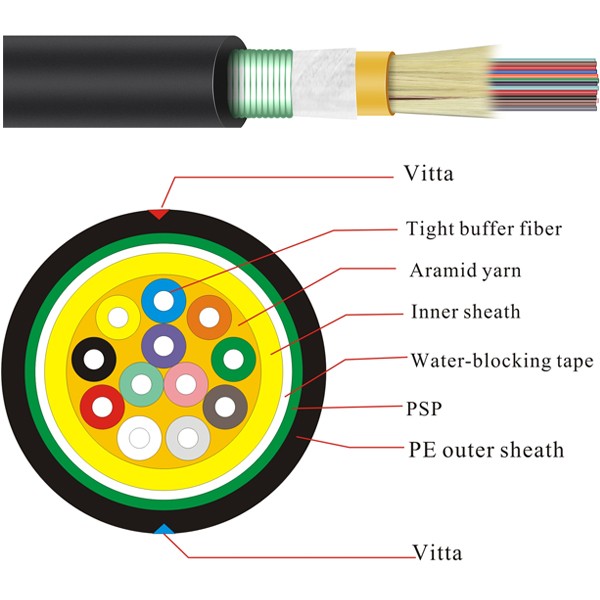

QYY- GJFJH53 Indoor Steel Armored Fiber Optic Cable
Features：
. Multicore fibers with armor outer jacket to enhance the attribute of crushing resistance and anti rodent.
. High strength aramid reinforced, high performance jacket material.
. Good mechanical and environment performance.
. Excellent Transverse water-blocking.
Optical Characteristics：
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | ||||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth>（Class A） | @850 | ≥200MHZ·km | ≥200MHZ·km | ||
| @1300 | ≥500MHZ·km | ≥500MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable cut-off wavelength | ≤1260nm | ≤1480nm |
Technical Parameters：
Cable Type
Fiber Count
Tight Buffer Diameter
Cable Diameter
Cable Weight
Tensile Strength
Crush Resistance
Bending Radius
mm
mm
Kg/km
Long/Short Term
Long/Short Term
Static/Dynamic
N
N/100m
mm
GJFJH53
12
0.9
12.5
124
400/800
200/1000
30D/105D
GJFJH53
24
0.9
13.5
158
400/800
200/1000
30D/105D
Storage/Operating Temperature:－20℃ to ＋60℃
