Description
QYY- Type Drop Cable GJXH
Features：

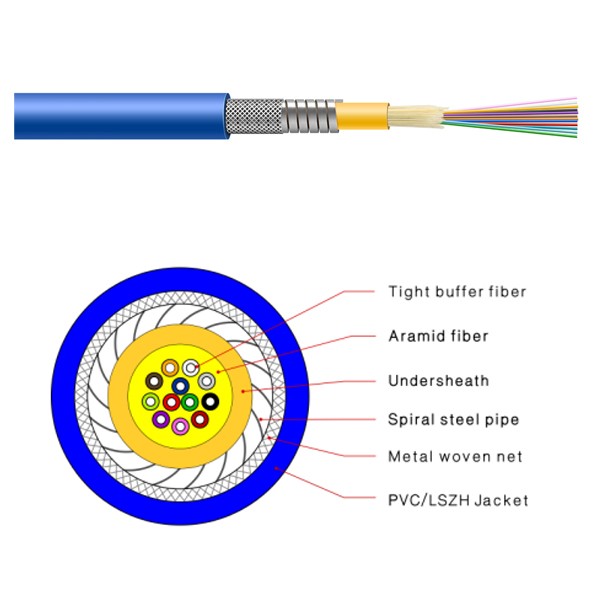

. Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
. High strength aramid yarn,high performance outer sheath
. Small radius, light weight,flexibility,and friendly installation.
. Good mechanical and environmental performance.
. Flame retardant outer sheath provide good safety.
Optical Characteristics：
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth | @850 | ≥500MHZ·km | ≥500MHZ·km | ||
| （ClassA） | @1300 | ≥1000MHZ·km | ≥600MHZ·km | ||
| Numerical | 0.200±0.015NA | 0.275±0.015NA | |||
| Aperture | |||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters：
Cable Type
Fiber Count
Tight Diameter
Cable Diameter
Cable Weight
Tensile Strength Long/Short Term
Crush Resistance Long/Short Term
Bending Radius Static/Dynamic
mm
mm
Kg/km
N
N/100m
mm
GJFJV+SV
2
0.6
5
42
300/750
200/1000
20D/10D
GJFJV+SV
4
0.6
6
65
300/750
200/1000
20D/10D
GJFJV+SV
6
0.6
6
66
300/750
200/1000
20D/10D
GJFJV+SV
8
0.6
6
68
300/750
200/1000
20D/10D
GJFJV+SV
12
0.6
6
70
300/750
200/1000
20D/10D
Storage/Operating Temperature : -20℃ to + 60℃
Application ：
. All kinds of connector
. Fiber optic pigtails, patch cords.
. Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
Fiber optic equipment and instrument
. Indoor cabling,building cabling,LAN, etc
. Long distance, outdoor/indoor cabling, trunking,etc
. Backbone network to the equipment in the building
. Small installation space cabling
