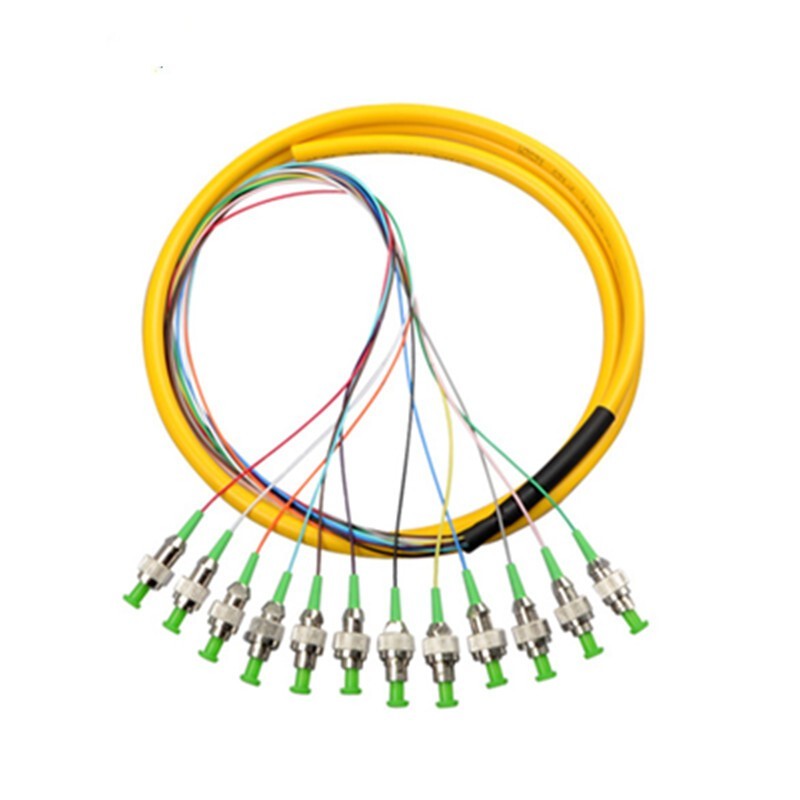

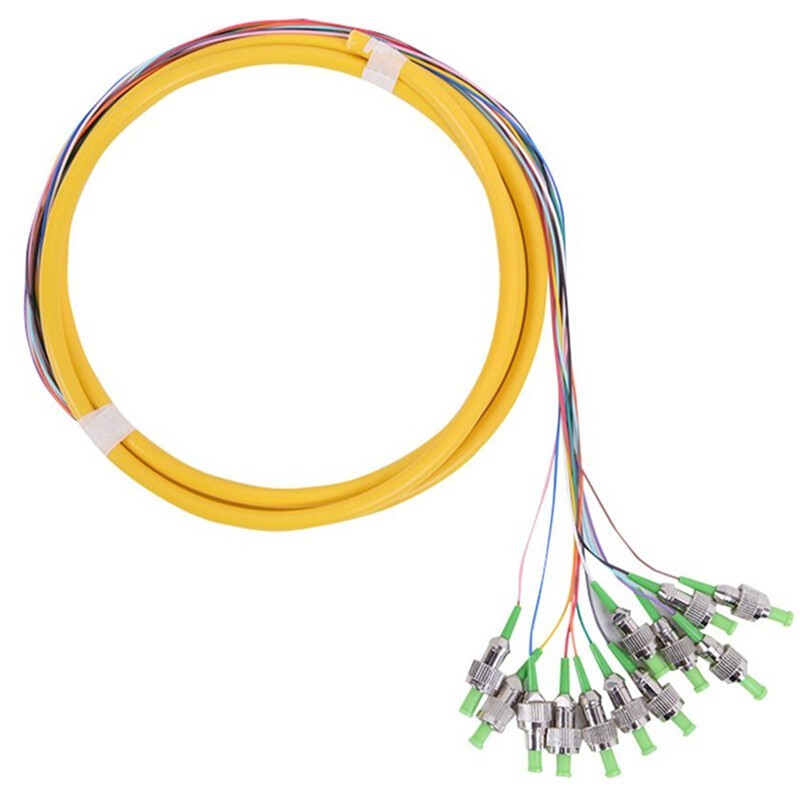

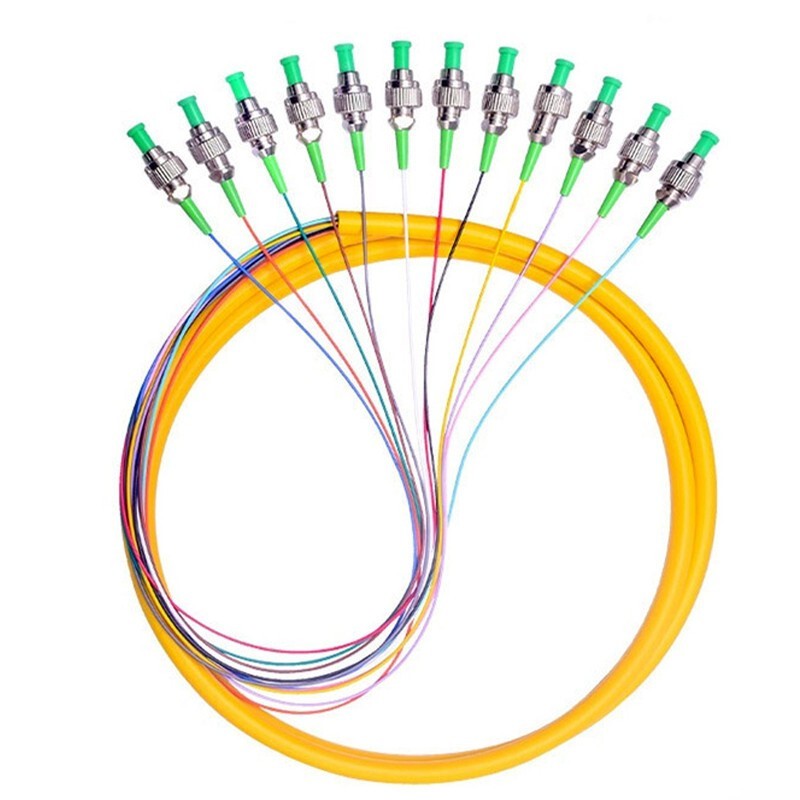

QYY- 9/125 Singlemode Glass FC/APC 12 Fiber Multi Color Pigtails

Name：9/125 Singlemode Glass FC/APC 12 Fiber Multi Color Pigtails

Cable jacket： PVC, LSZH, OFNP, OFNR

Connector Type：FC/LC/SC/ST and PC / UPC or APC

Cable length：1m, 2m, 3m, 5m….customized

QYY- 9/125 Singlemode Glass FC/APC 12 Fiber Multi Color Pigtails

Features:

. Pre-terminated fiber to reduce installation time and ensure accuracy

. Works for fusion or mechanical splicing on OM3 Multimode 50/125 Fiber

. Perfect for fiber patch panels, fiber distribution units, optical distribution frames, fiber enclosures, fiber distribution boxes

. Used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more

. 12 Pre-terminated LC connectors ready to plug directly into an adapter panel

. Machine polishing ensures highest quality connector terminations and performance

. Low insertion and return loss

. Traceable, standards-based testing procedures

Application :

. Cable jacket: PVC, LSZH, OFNP, OFNR

. Cable length: 1m, 2m, 3m, 5m….customized

. Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors

. Active Device Termination

. Industrial, medical & military

. Video transmission, Data transmission

. Telecommunication and Data processing Networks

. FTTH , CATV, LAN, MAN, WAN, Test &Measuremen

. Systems Integration for Long Haul, Metro and Access Network

Specifications:


Parameter	Unit	Bundle multi-fiber connector
		SM
		PC	UPC	APC
Insertion loss (typical)	dB	≤0.3	≤0.2	≤0.3
Return loss	dB	≥45	≥50	≥60
Operating wavelength	nm	1310, 1510
Exchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	°C	-40~75
Storage temperature	°C	-45~85
Cord diameter	mm	φ3.0,φ2.0,φ0.9
Fiber count	F	4, 6, 8, 12, 24, … fibers
Applicable connector		FC, SC, ST, MU, LC
