  2. QYY- SC/APC LC/UPC Simplex OS2 2.0mm
  • QYY-  SC/APC  LC/UPC  Simplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper
  • QYY-  SC/APC  LC/UPC  Simplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper
  • QYY-  SC/APC  LC/UPC  Simplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper
QYY-  SC/APC  LC/UPC  Simplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper QYY-  SC/APC  LC/UPC  Simplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper QYY-  SC/APC  LC/UPC  Simplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper

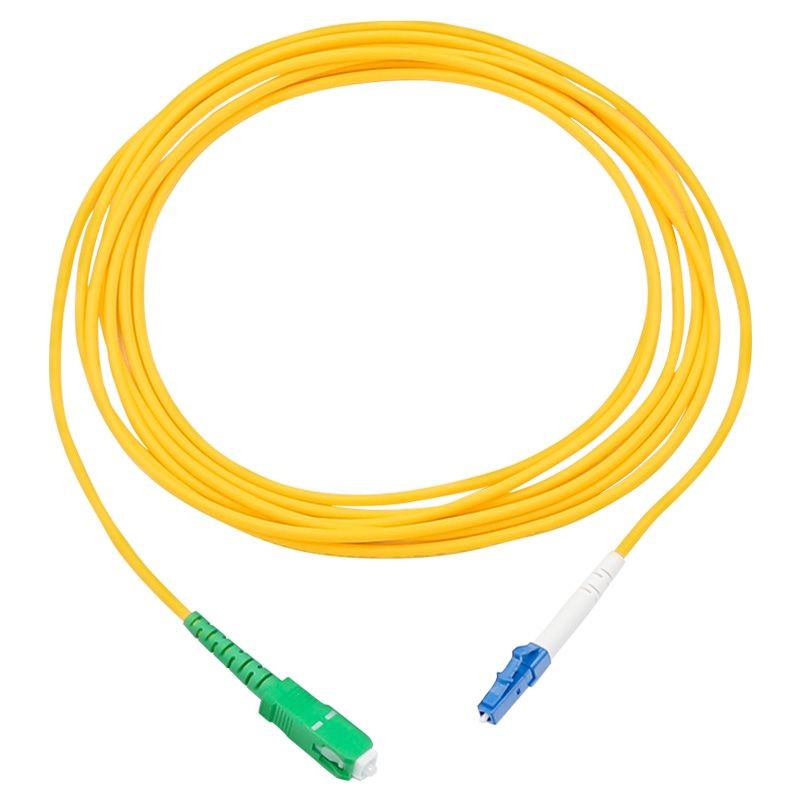

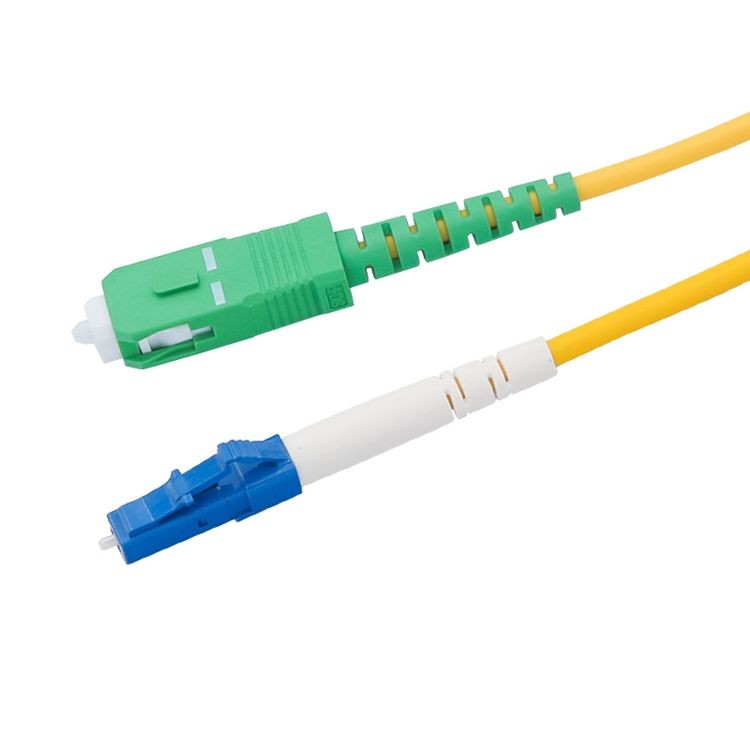

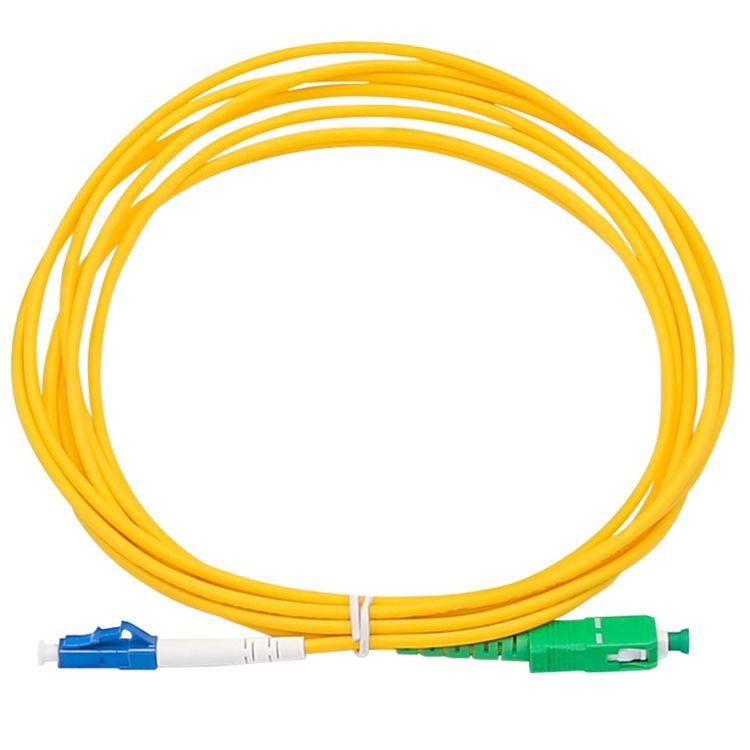

QYY- SC/APC LC/UPC Simplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper

  • Material:MPO-MPO NISSIN Female 24 Fibers Low Loss 0.35dB Type A B Plenum (OFNP) OS2 9/125 Single Mode Trunk Cable, Yellow
  • Length:1 m 2m 3m 5m 7m 10m Other length...
  • Polish:UPC/APC/PC
  • Temperature:≤0.2dB (-40+85 sustain 100 hours)
  • Fiber Optic Patch Leads,Fiber PATCH CORD, Fibera Optica Patchcord Optic Cable Patchcord Jumper Fiber Optic Drop Patch Cords
    Inquiry Send Email

    Description

    QYY-  SC/APC  LC/UPC  Simplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper


    Features:

    1. Low insertion loss .<=0.3DB
    2.High return loss . >=55DB
    3.Precise end face inspection by microscope .
    4.Environmentally stable in optical performance .
    5.Available lengths: 1/2/3/4/5/10/15/30 meters.
    6.Ceramic ferrules for long-lasting reliability and precision.



    Mode
    SM MM
    Polish
    UPC/APC
    PC
    Insertion Loss
    Typical ≤0.2dB   Maximum ≤0.3dB
    ≤0.25dB
    Return Loss
    ≥50dB/≥65dB
    ≥40dB
    Interchangeability
    ≤0.2dB
    Durability
    ≤0.2dB (1000 times)
    Repeatability
    ≤0.1dB
    Temperature
    ≤0.2dB (-40+85 sustain 100 hours)

    Order Information:

    . LC/APC - LC/APC/ SM 9/125 SIMPLEX 3.0mm-2M PVC
    1       2     1      2    3                       4             5       6      7
    . 1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
    . 2Ferrule End-face: PC, UPC, APC
    . 3 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
    . 4 Cable Quantity: simplex or duplex
    . 5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm
    . 6 Cable Length: 1, 2, 3 meter or customized
    . 7 Cable type: PVC, LSZH,



    Application :

    . Fiber Optic Patch Cord LC/APC to LC/APC
    . Communication Workshop
    . FTTH
    . Local Area Network
    . Fiber Sensor
    . CATV
    . Fiber Optical Communication System.
