Description

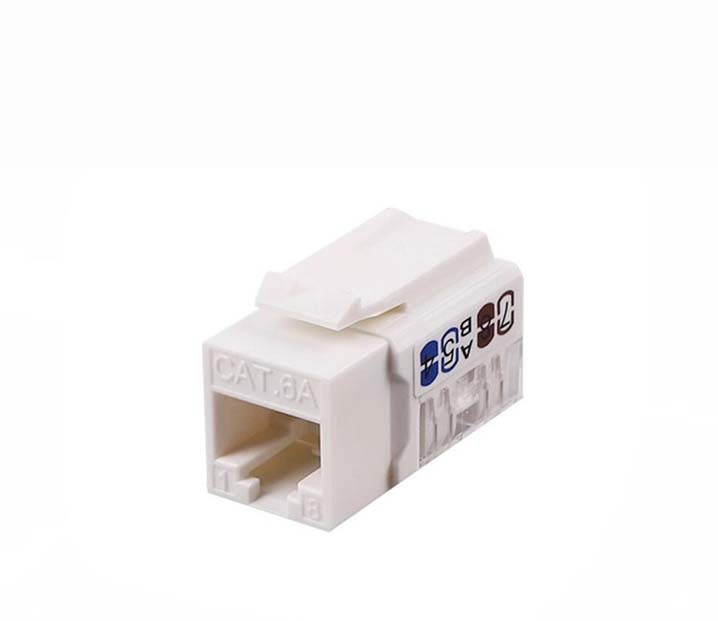

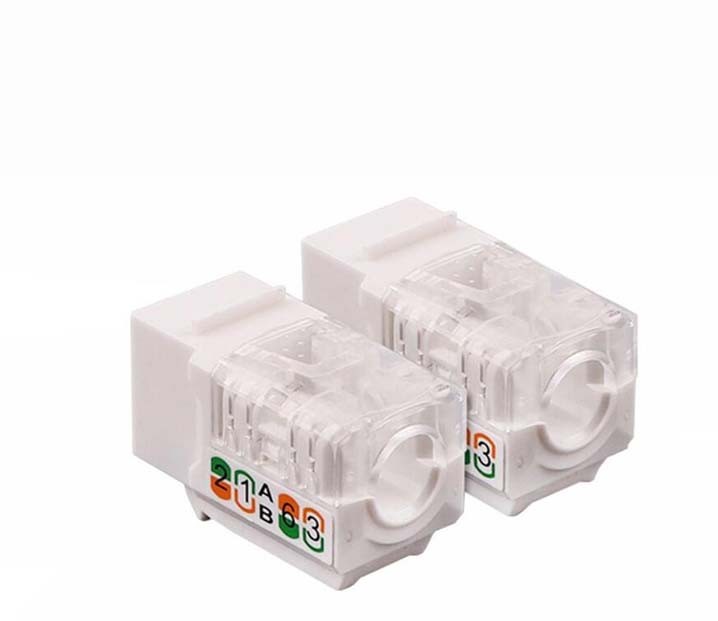

QYY-CAT6/CAT6A 90 degree UTP network jack
|
Feature: |
|
1.PERFORMANCE: The KHA range fully covers all performance levels from Cat 5e to Cat 6A.
|
|
Surroundings: |
|
1.Cat3 Cat5e Cat6 Ladder Jack White
2.Storage temperature: -40 to +85°C
3.Operating temperature: 0 to 70°C
4.Complies with TIA/EIA 568B Class 5e
5.For use with modular plugs that comply with FCC Part 68 and Subpart F
|
| Specification | CE, Lead-free & RoHS2 compliant. | |
|
Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2.2 edition and CENELEC EN 50173-1 cabling requirements for Category 6A& Category 6A components performance. |
||
|
Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and Level A reliability requirements of IEC 60603-7-2 IEC 60603-7-4, and IEC 60603-7-41 for RJ45 8-way unscreened connector. |
||
| ELECTRICAL | Voltage proof: 1000V DC or AC peak, contact-to-contact. | |
| Current-carrying capacity: 0.75Amps minimum | ||
| Contact resistance: 20mohm maximum | ||
| Insulation resistance: 500Mohm minimum at 100V DC | ||
| Input to output resistance: 200mohm maximum | ||
| DC resistance: 0.2ohm maximum | ||
| MECHANICAL |
Mechanical operation: 750 cycles minimum for insertion / withdrawal with modular plug 20 cycles minimum for cable re-termination |
|
| Effectiveness of connector coupling devices: 50N (11lbf) for 60s ± 5s. | ||
| ENVIRONMENTAL | Operation Temperature: -10℃~ 60℃ | |
| Humidity: 10% ~ 90%RH | ||
