Description

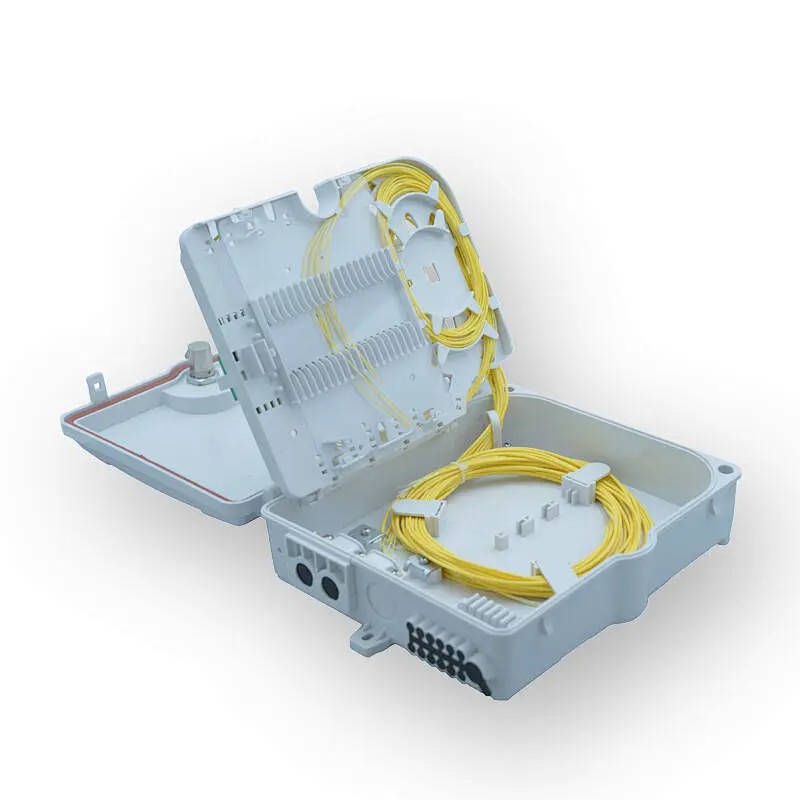

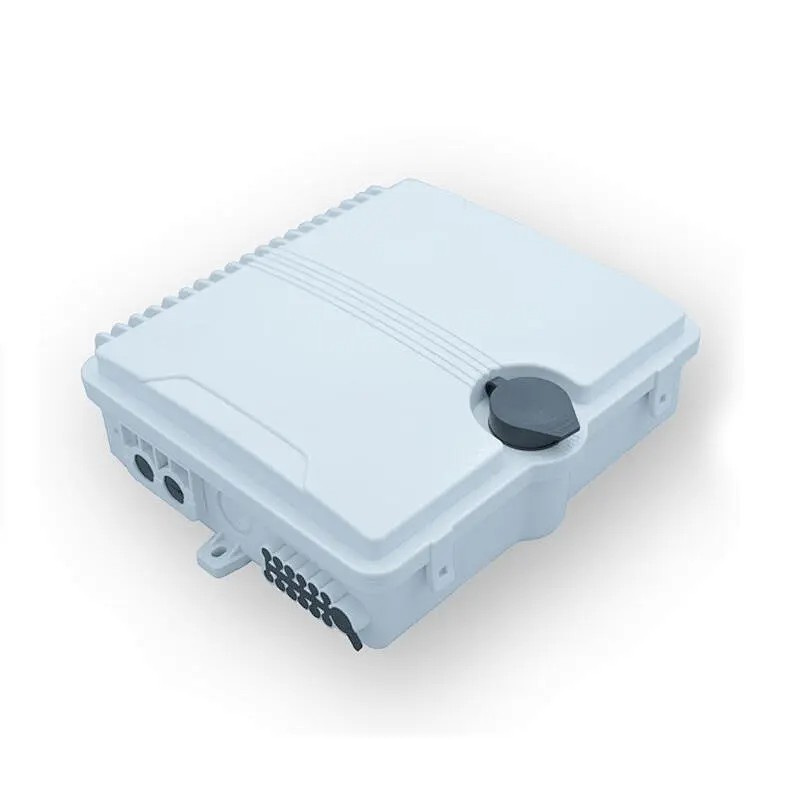

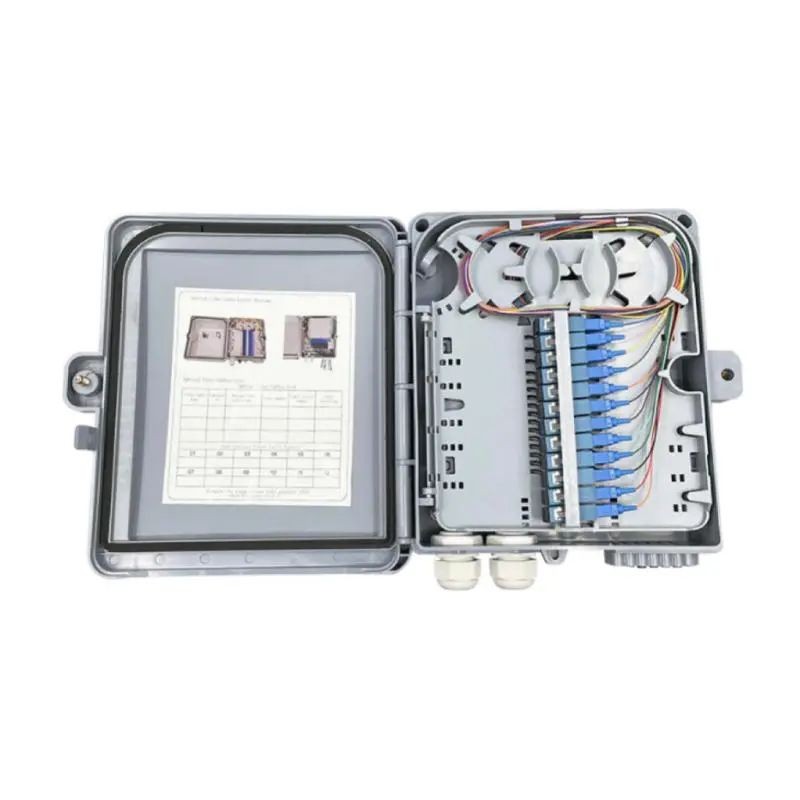

QYY- 12 Cores Optic Fiber Distribution Box
Feature：
. Made of high-quality engineering plastic, it can be used indoors and outdoors.
. The structure is strong and reliable.
. Suitable for wall-mounted and pole-mounted.
. Fiber optic cables can enter from the bottom of the box.
. Supports up to 2 1×8 splitter modules or 1 1×16 splitter module.
. Compatible with quick connectors and FTTH cables.
. Can meet the disconnection function of live cables.
Specifications：
| Model | OTB-12 |
| Product Name | Fiber Optic Junction Box |
| Ambient Temperature | -20°C~+55°C |
| Relative Temperature | ≤ 85%(+30°C) |
| Weight | 2kg |
| Air Pressure | 70kpa~106kpa |
| Adapter Type | SC |
| Fiber Type | G652D, G657A, OM1-OM4 supports up to 2 1×8 splitter modules or 1 1×16 splitter module. |
| Dimension | 220*180*62mm |
| Application Wall | Mount; Pole Mount |
| Features | Easy to install, maintain and manage |
| Accessories | 12 pieces of shrink tube sleeve, expansion tube, ribbon and sleeve |
Application：
. Outdoor environment, IP55
. Wall-mounted; Pole-mounted
. Comprehensive computer network engineering.
. Intelligent building wiring
. Fiber to the home (FTTH)
. Residential intelligent network system.
. Campus network, enterprise network.
