Description

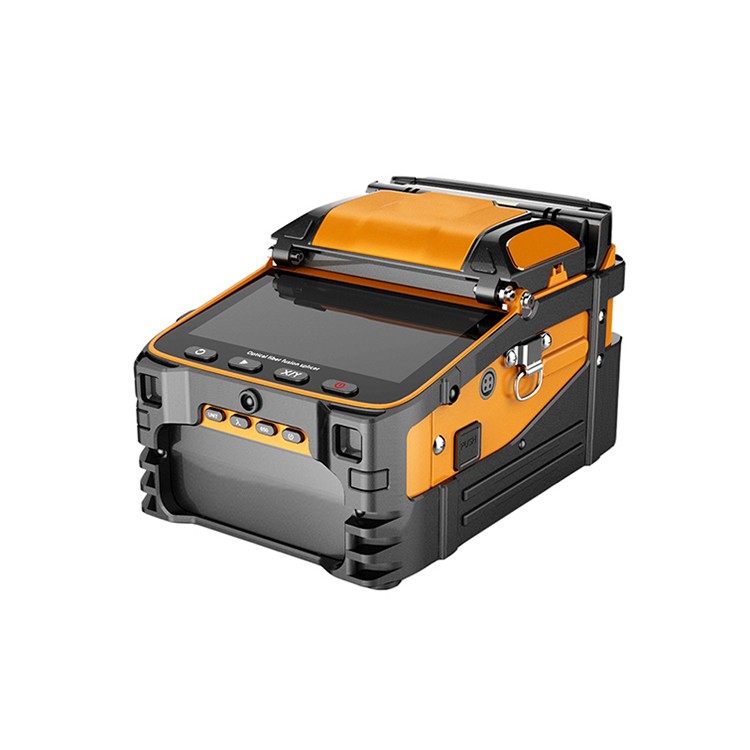

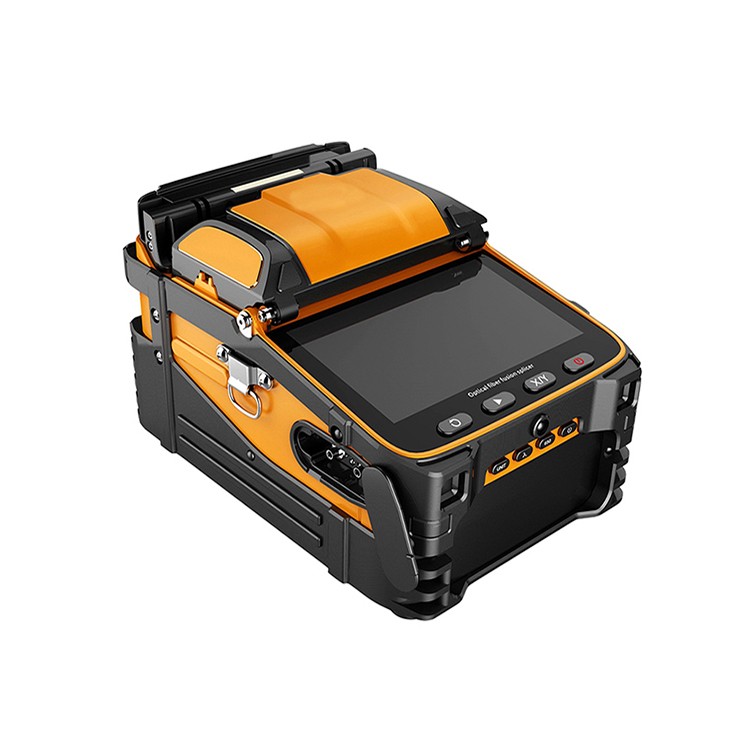

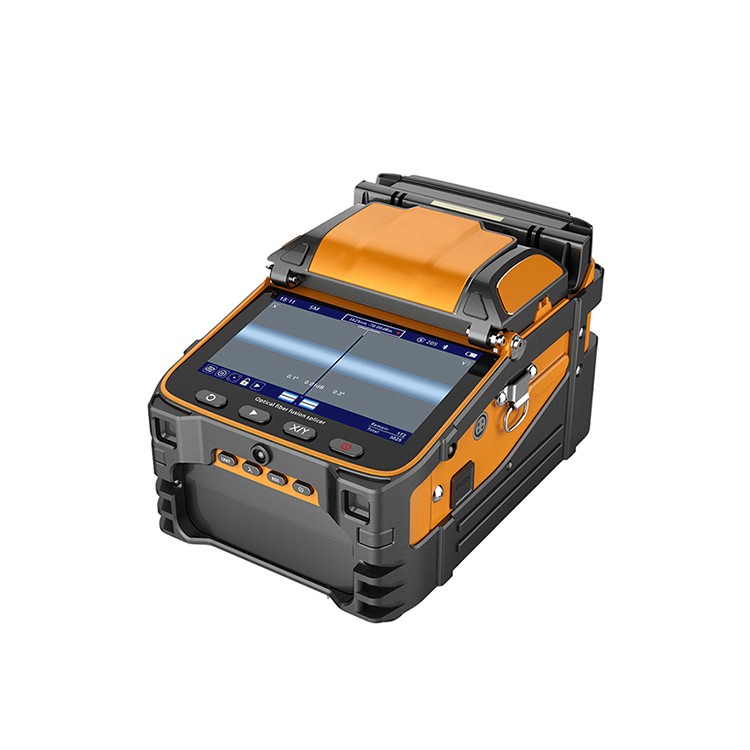

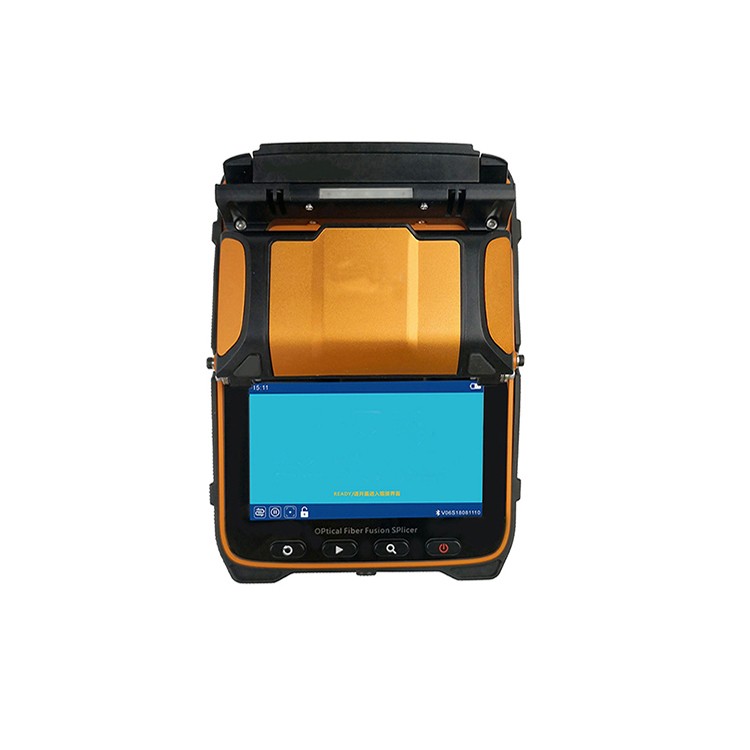

QYY- Fusion Splicer Machine AI-9
Features:
. Industrial quad-core chip CPU
. Six motors
. 5 seconds fast splicing
. 15 seconds fast heating
. 10 languages to switch freely
Specifications:
| Applicable Fibers | SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655） |
| Splice Loss | 0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Focus mode | Auto focus |
| Fiber alignment | Core/cladding alignment Manual alignment |
| Typical splicing time | 5s |
| Typical heating time | 15s |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60DB |
| Fiber diameter | Cladding Diameter 80-150μm，Coating Diameter 100-1000μm |
| Fiber Cleave Length | Coating less than 250µm：8-16mmCoating less m250-1000μm:16mm |
| Heat shrinkable tube | 60mm、40mm |
| Visual Fault Locator | Power:15mw,2hzflashing And Constantly Bright Mode |
| Tension Test | Standard 2N |
| Fiber holders | Multifunction holders，Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y view, 150 for X or Y view |
| Screen | 5.1inch TFT color display |
| Software upgrade | Mobile APP update, Turn on Bluetooth sync to the machine |
| Splicing Mode | Normal / high precision splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times |
| Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
| Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation), |
| Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s | |
| lighting | External |
| Optical Power Meter | Wavelength:850nm、1300nm、1310nm、1490nm、1550nm、1625nm |
| Measuring Range:-70 ~ +6db Absolute Error:<0.3db (-50dbm ~ +3dbm Range) |
