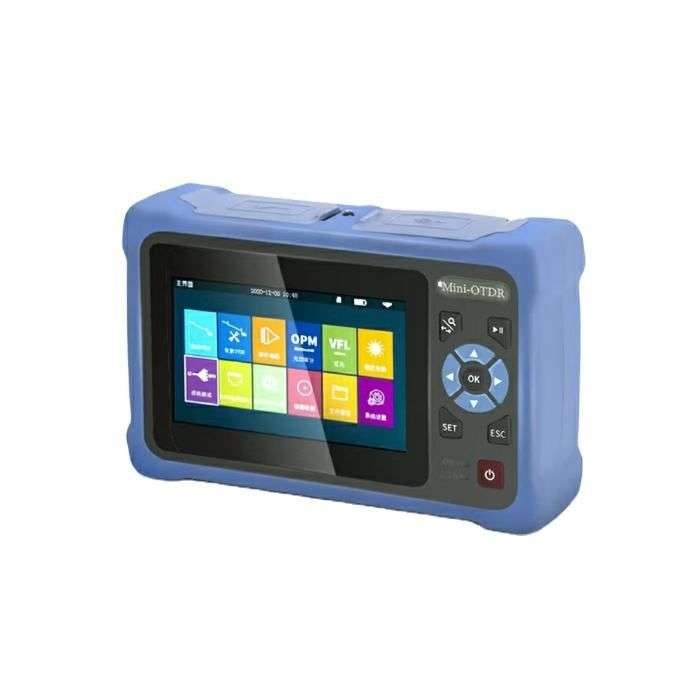

QYY- NK6000 -OTDR testing

Name：OTDR testing with signal active in fiber test distance 100KM otdr ffth fibra optica

Multi-Mode Fiber：850/1300/1310/1550/

Single-Mode Fiber：1310/1490/1550/1625

measuring range：500m-256KM

Description

QYY- NK6000 -OTDR testing

Features:

. 0.8m event blind area, easy to test 5m jumper
. Support SM/MM/SM+MM test
. Detection of online test, APD active protection
. Standard SoR file output format

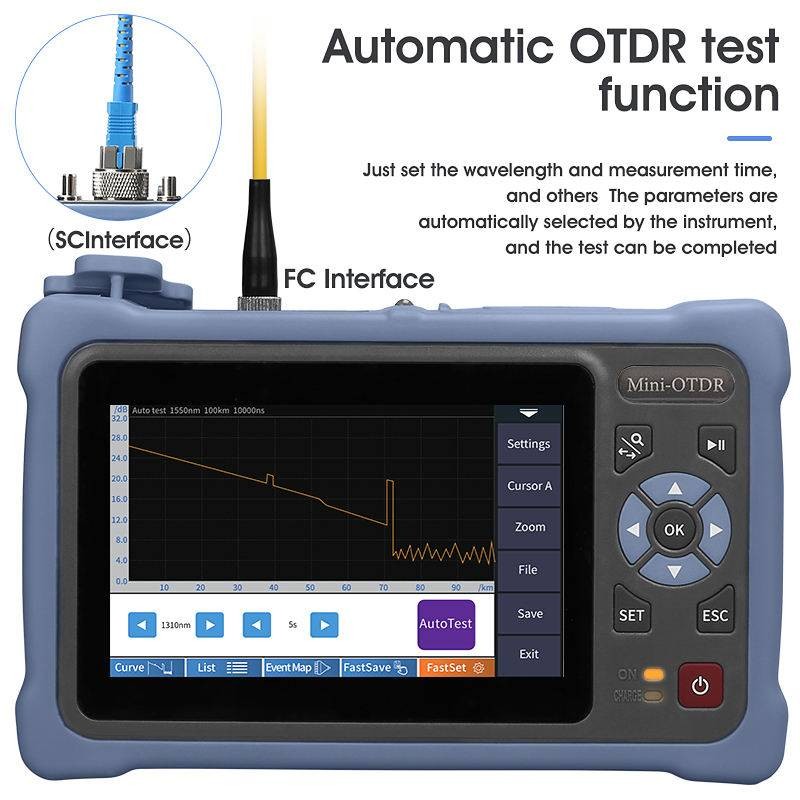

. Unique automatic diagnosis function of test results
. Multi wavelengths simultaneous test
. Batch processing of data, printing report forms
. Nomenclature in Chinese and English
. Key + touch screen dual operation mode

Application Of OTDR Fiber Optic Launch Cable:

. Use as OTDR launch/receive cable.
. Test link loss with an OTDR.
. Measure insertion loss and reflectance of near/far end connector.
. Pulse suppressor for the first reflection at the beginning of a fiber.
