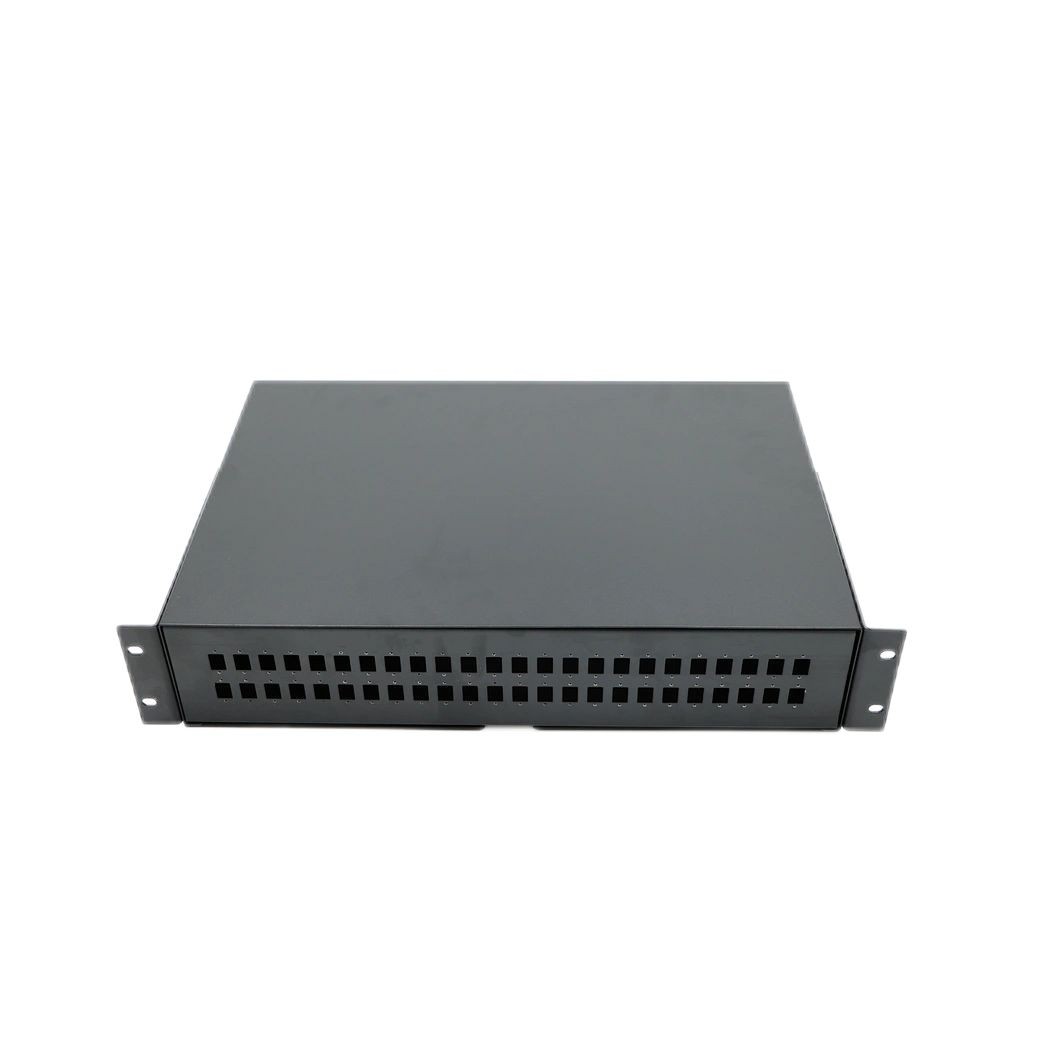

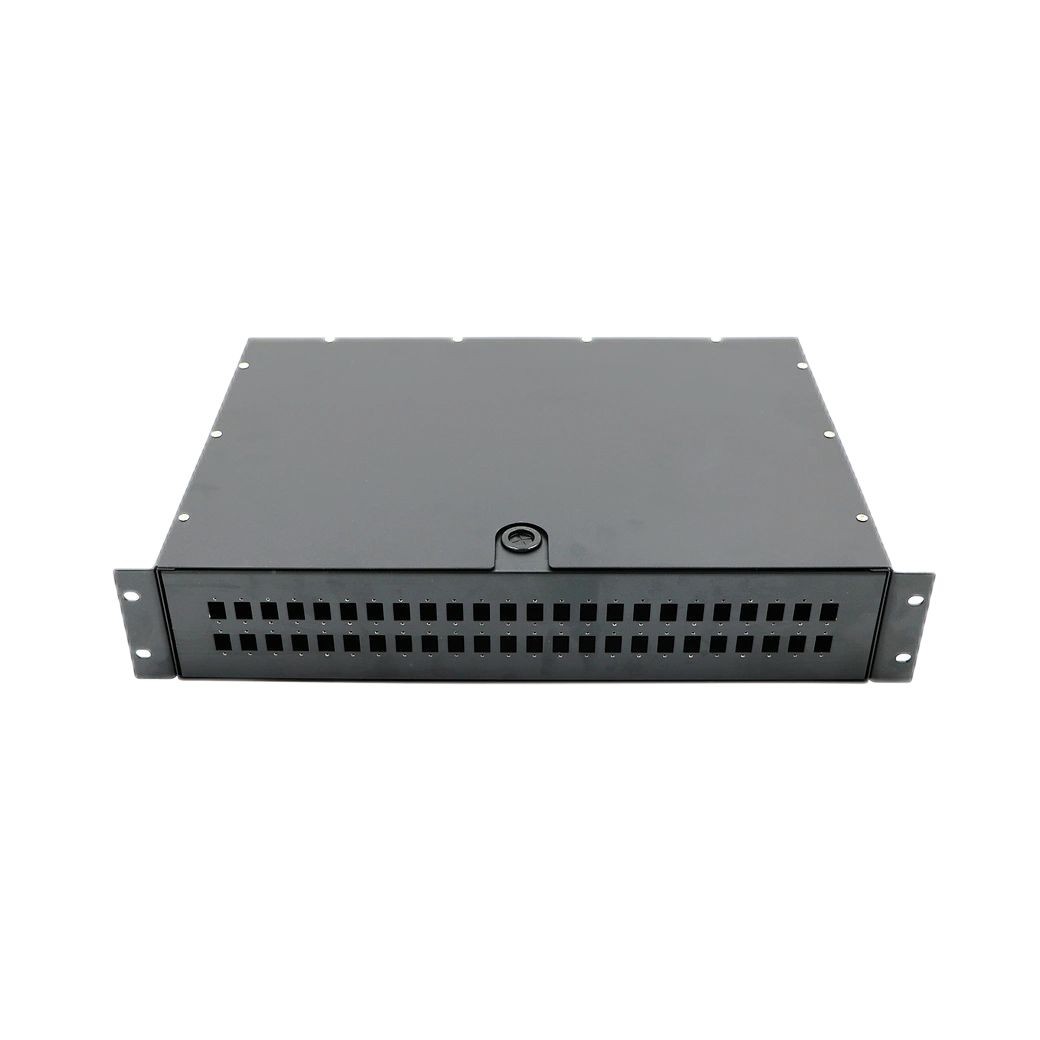

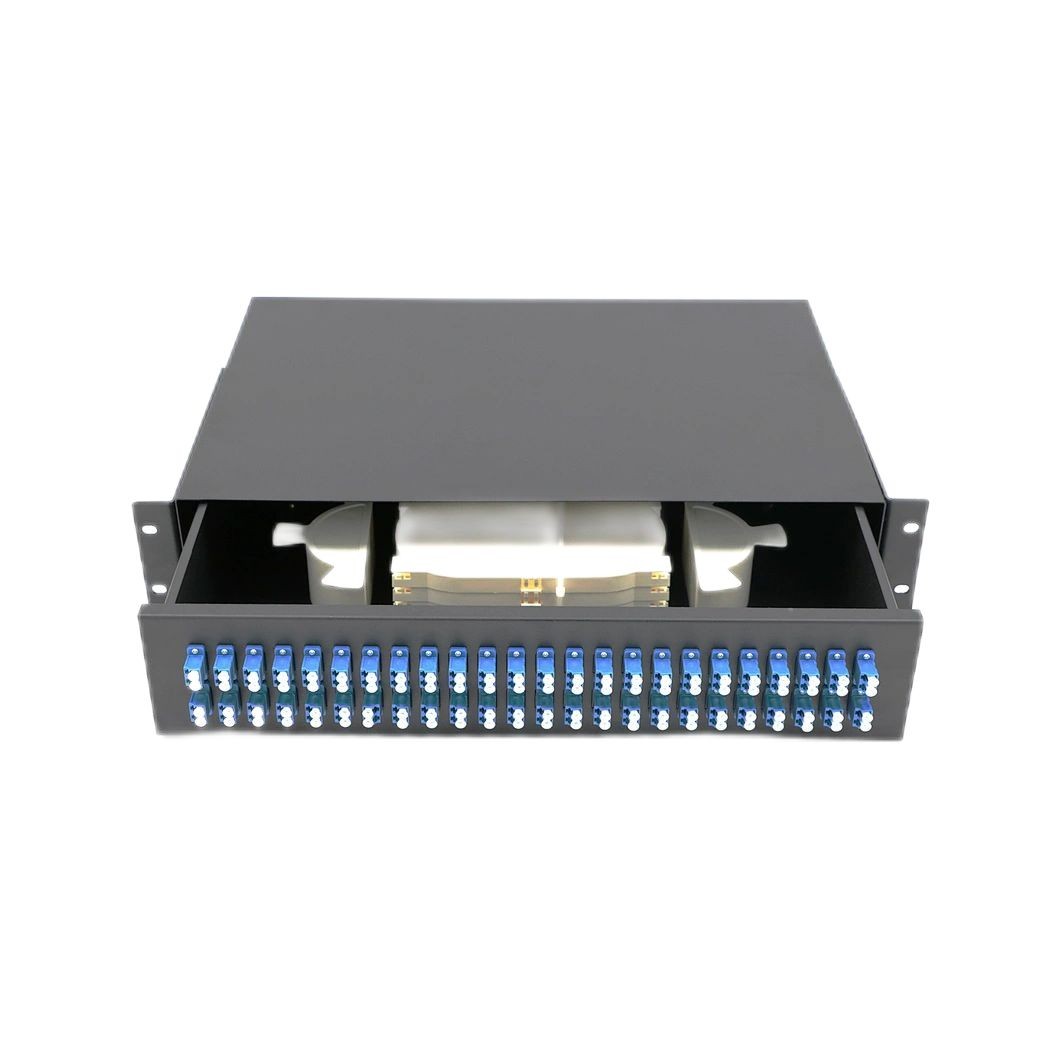

QYY- 1U 19”Fiber Optic Patch Panel ODF Box/Rack Mount Cabinet
Features:
. Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
. The box has a pothook, which is convenient to install and dismantle.
. The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers
should be guaranteed to be over 37.5mm in the splice tray.
. The box is of unique structure, reasonable layout, and has adequate room for operation.
. Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly
to make sure the cables are clamp tightly.
. The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Application：
. Environmental temperature: -25 - 65°C.
. Relative humidity:≤85%((when the temperature is below 30°C)).
Atmosphere pressure:70~106Kpa.
. Insulating resistance:≥2×104 MΩ/500VDC.
. Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
. The fiber optic splice tray could be piled one upon another, flexible to turn.
. The box are Rack Mounted, which is convenient to install and dismantle.
. The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Specification:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 |
5 |

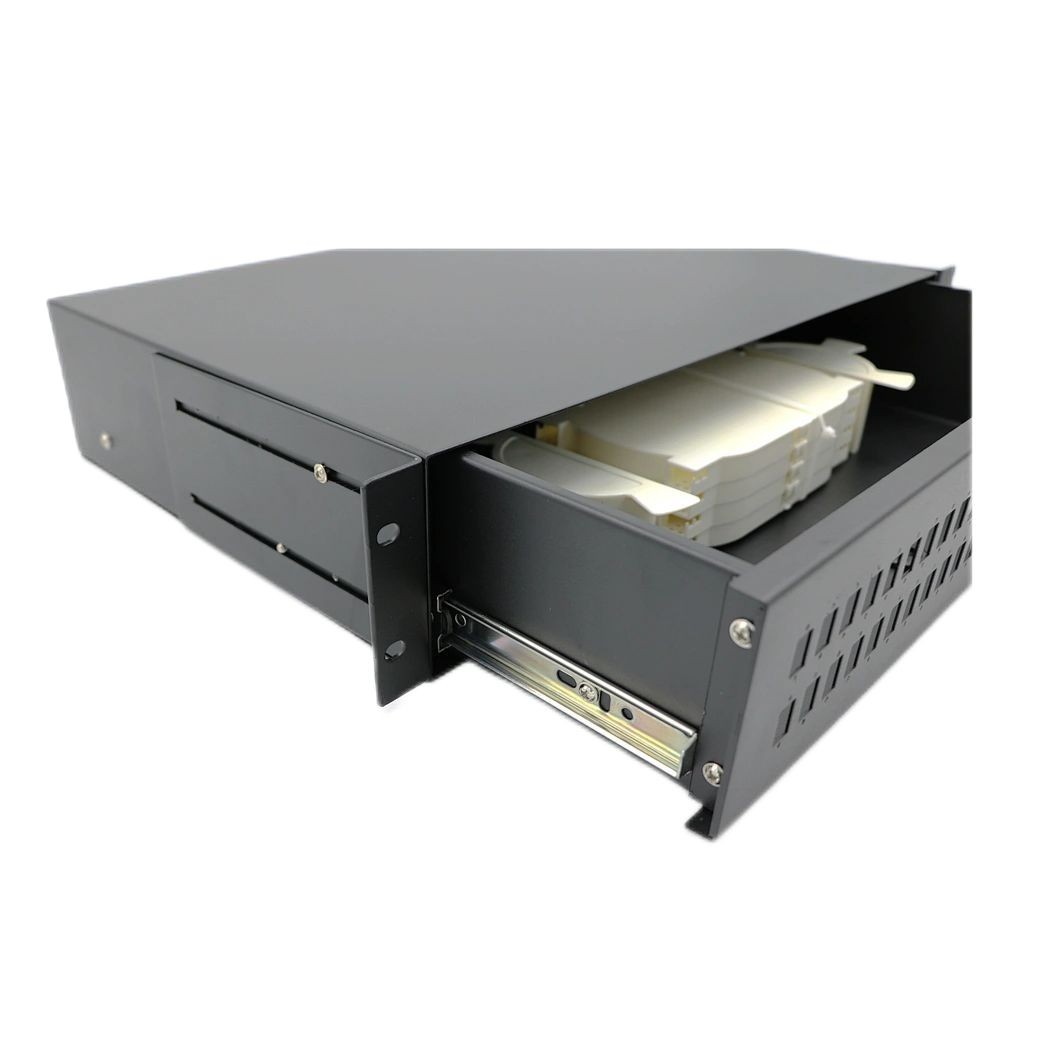

Rack Mount Odf Distribution Box Slidable Type:
| ype | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |
