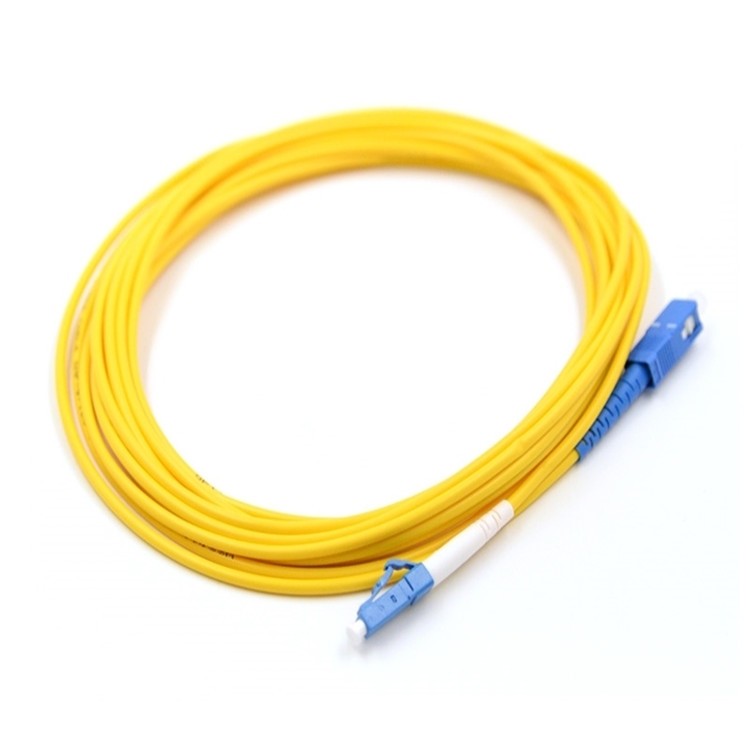

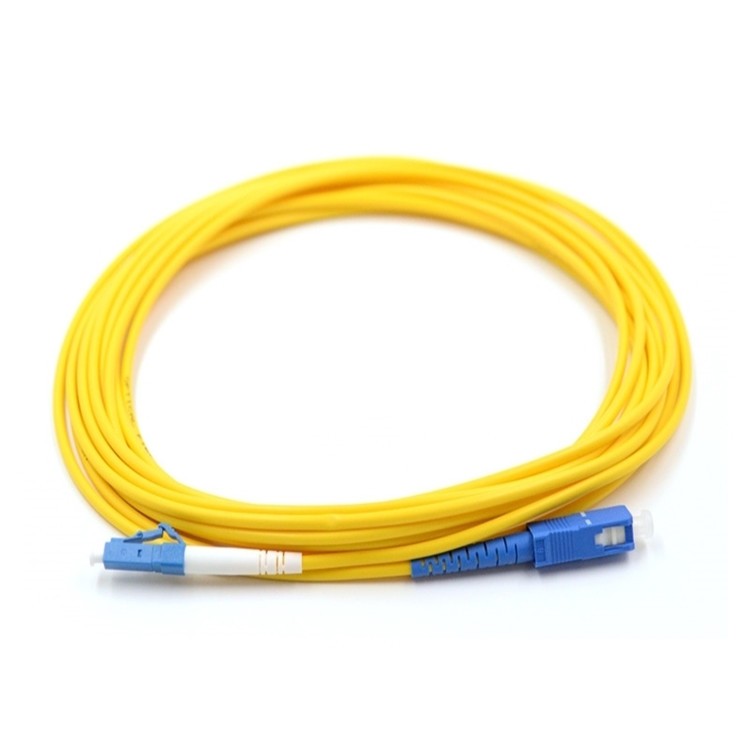

QYY- SC UPC -LC UPC Simplex Fiber Patch Cord Single Mode

  • Product Name：SC UPC -LC UPC Simplex Fiber Patch Cord Single Mode
  • Fiber Grade：SM G652D
  • Connector Type：SC - LC
  • Wavelength：1310/1550nm
    • Fiber Optic Patch Cord  , Dual core multimode jumper  , single core single-mode jumper，ftthfttx
    Inquiry Send Email

    Description

    QYY- SC UPC -LC UPC Simplex Fiber Patch Cord Single Mode


    Feature：

    . Low insertion loss and back reflection loss

    . Good echangeabilityGood Durability
    . High temperature stability



    Characteristics：


    . Connector type: FC, SC, LC, ST, E2000, MPO.
    . Ferrule End-face: PC, UPC ,APC.
    . Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
    . Cable Quantity: Simplex, Duplex.
    . Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
    . Cable Length: 1, 2, 3 meter or customized

    . Cable type: PVC, LSZH, OM3, Plenum ,Armored\



    Specification：

    Product Name
    SC LC Fiber Optic Patch Cord
    Fiber Grade
    SM G652D
    Connector Type
    SC to LC
    Wavelength
    1310/1550nm
    Fiber Count
    Simplex
    Cable Jacket Diameter
    3.0mm/2.0mm
    Cable Jacket Material
    LSZH
    Ferrule
    UPC
    Cable Length
    10M or customized
    Insertion Loss
    ≤0.3dB
    Return Loss
    ≥50dB
    Minimum Bend Radius
    10mm
    Operation temperature
    -40℃~ 85℃


    Application：

    . CATV

    . Optical fiber communication systems
    . Optical fiber data transmission
    . Building network access
    . Cabling system, ODF
    . FTTX applications
