  4. QYY- OS2 9/125 Simplex SC/APC LSZH Fibre

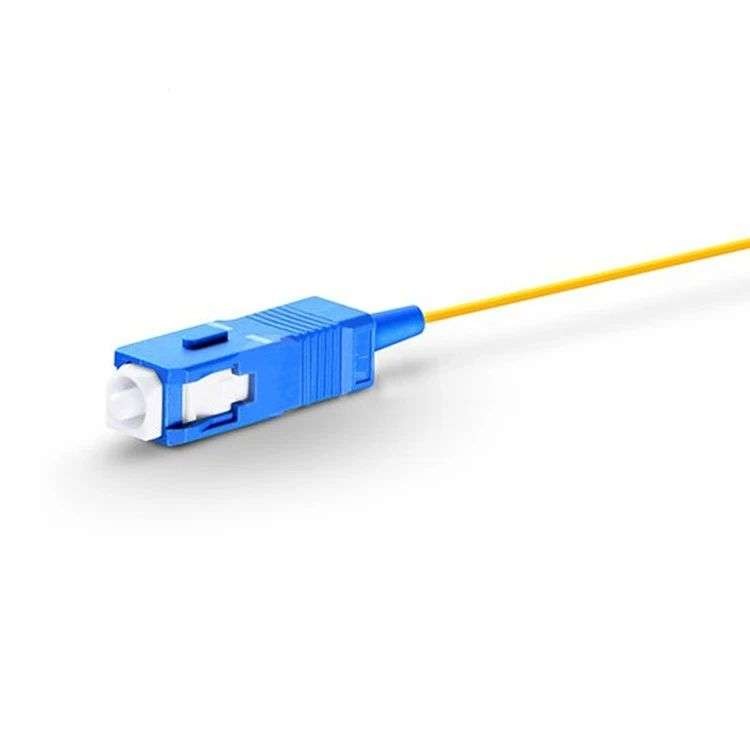

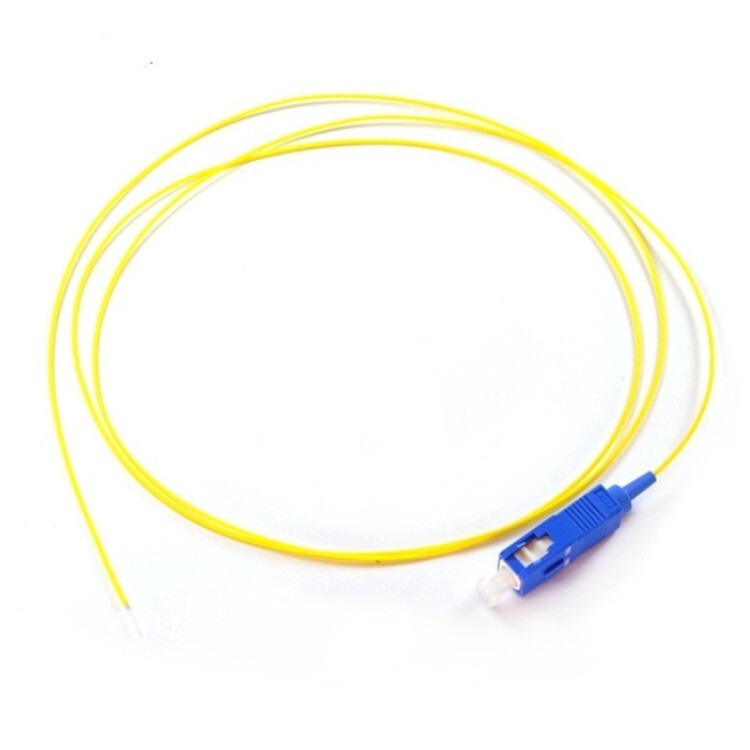

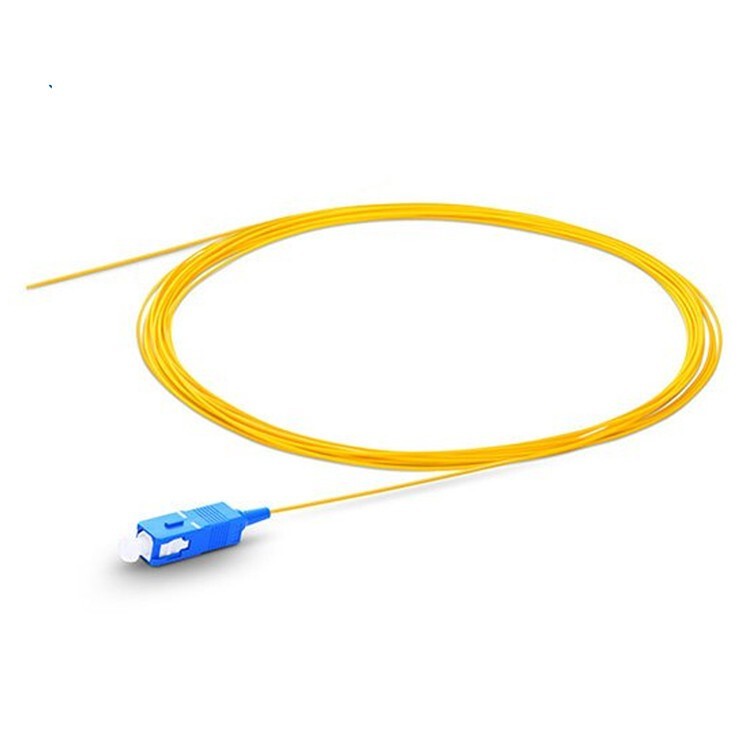

  • QYY- OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture
  • QYY- OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture
  • QYY- OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture
QYY- OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture QYY- OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture QYY- OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture

QYY- OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture

  • Name:OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture
  • Polished:UPC or APC
  • Jacket Color:OS2, OM1, OM2, OM3 or OM4
  • Breakout OD:0.9mm
  • Fiber Pigtails,Pigtail thread
    Inquiry Send Email

    Description

    QYY- OS2 9/125 Simplex SC/APC LSZH Fibre Pigtail Manufacture



    Features:

    . Low insertion loss and back reflection loss
    . Ferrule end surface pre-domed
    . Excellent mechanical endurance
    . Good in repeatability
    . Good in exchange
    . Green Production, CE, RoHS Standard


    Application:

    . Telecommunications
    . CATV, LAN, MAN, WAN, Test &Measurement
    . Military industry
    . Medical


    Specifications:



      Parameter

    Single mode

    Multi mode

    Insertion loss

    ≤0.3dB, typical ≤0.2dB

    ≤0.30dB

    Return loss

    ≥45dB(PC)

    ≥35dB

    ≥50dB(UPC)

    ≥60dB(APC)

    Durability

    ≤0.2dB typical change,1000 matings

    Repeat ability

    ≤0.10dB

    Fiber Type

    Corning fiber 9um

    Operation temperature

    -40 ~ +75

    Storage temperature

    -40 ~ +85

    Operating wavelength

    1310/1550nm
