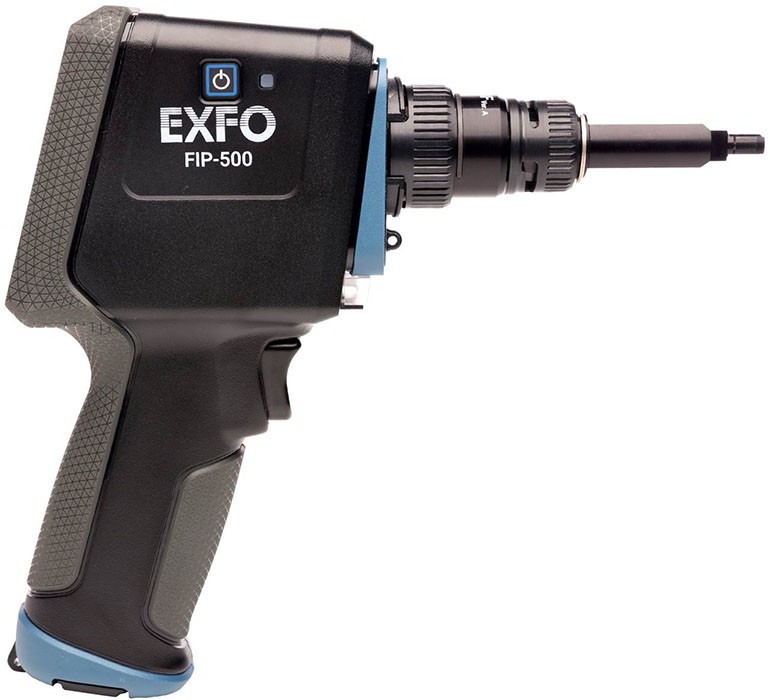

QYY- EXFO FIP-500 fiber end detector

  • Model Number:QYY- EXFO FIP-500 fiber end detector
  • Inquiry Send Email

    Description

    QYY- EXFO FIP-500 fiber end detector


    Features:

    1. Excellent optical performance, providing accurate and repeatable test results

    2. Zero button detection: 100% automatic detection - from inserting connector to saving data (automatic detection, automatic brightness adjustment, automatic focus, automatic centering image, automatic capture, automatic analysis, automatic saving results and automatic reset
    3. It can be quickly detected (for MPO-12 connector, the whole process from connecting to analyzing and saving results can be completed in 10 seconds)

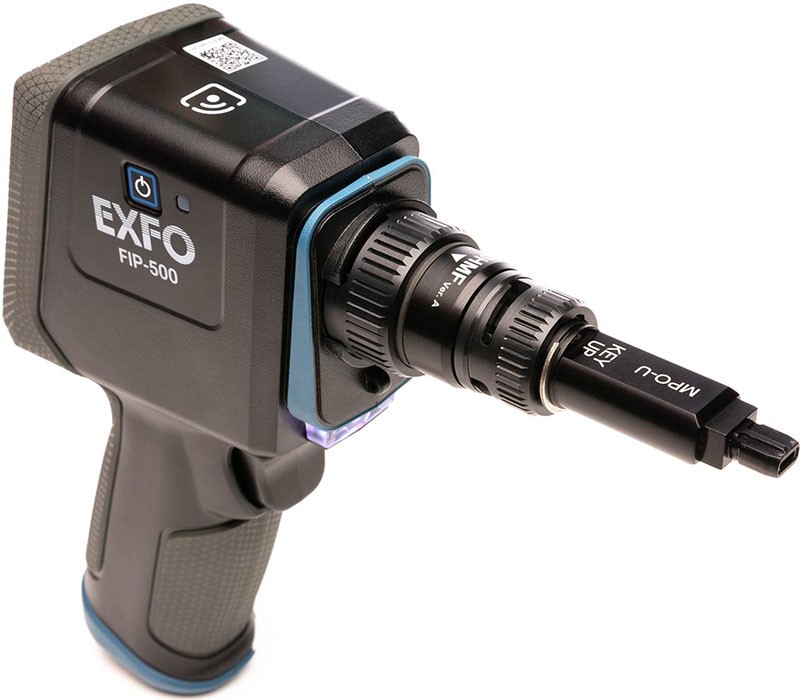

    4. Support MPO connectors. One adapter can test up to 4 rows of connectors with 8/12/16 fiber cores per row
    5. A variety of adapters are available for single-core b and multi-core connectors (such as LC, SC, ST, OptiTap ®、 OptiTip ®、 MPO)

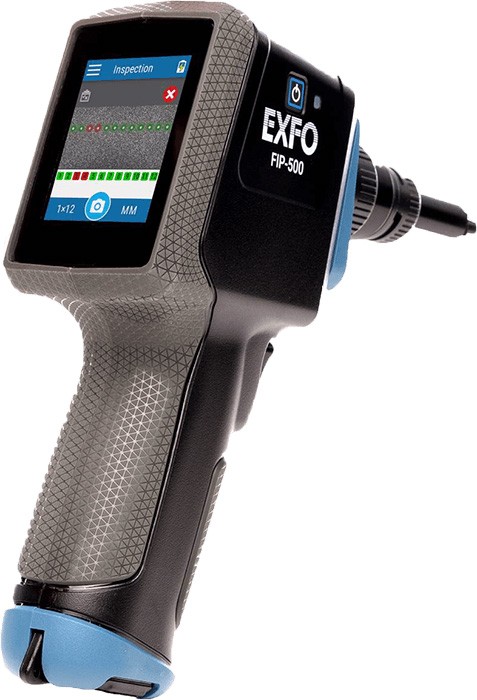

    6. Equipped with smart phone-level 2.4 inch color touch screen
    7. Adopt the design of quick connection: you can switch between any adapter with only one quarter turn 8. Can be tested all day without interruption: Long battery life
    9. Store test results locally - 1800 (MPO-12) or 10000 (single fiber core) 10. With connector end face analysis function (based on IEC standard)
    10. PDF report via mobile device

    Product parameters:

    1. End-to-end detection and analysis time: MPO-12:<10 s MPO-24:<14 s
    2. Field of view: 1.9 mm x 4.8 mm
    3. Image sensor: two 5 megapixel sensors

    4. Light source: 2 purple LED indicators (405 nm)
    5. Luminous technology: coaxial, pulse 6. Display: 2.4 inch IPS color LCD (166 dpi)+capacitive touch screen
    7. CPU: 1.4 GHz dual-core 8. Connection: Bluetooth ® And WiFi
    9. Battery type: Li-Po rechargeable battery life>7 hours 9. Multi-core with local storage function: 1800 measurement results
    10. Single fiber core: 10000 measuring results

    11. Dimensions (H x W x D): 196 mm x 230 mm x 59 mm  Weight: 600 g

    Application:
    1. Machine room, optical junction box and head end 2. Data center

    3. Wireless (such as 5G, FTTA, DAA, small base station) 4. Fiber to the home (FTTH)
