Description

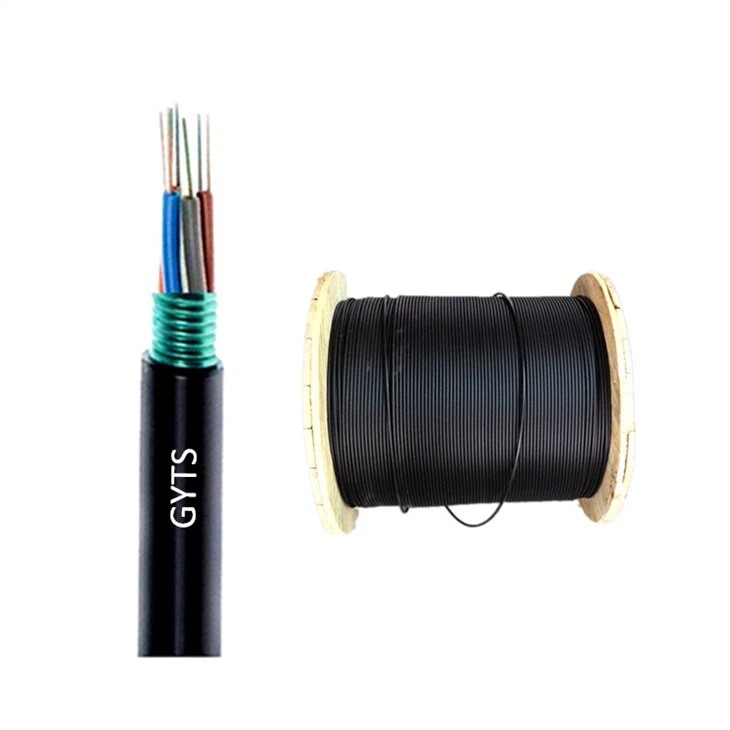

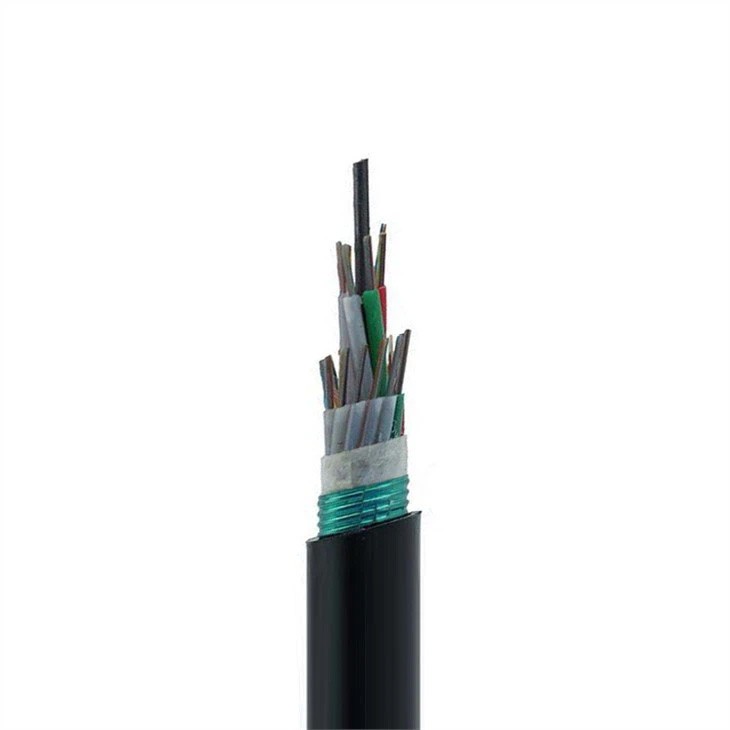

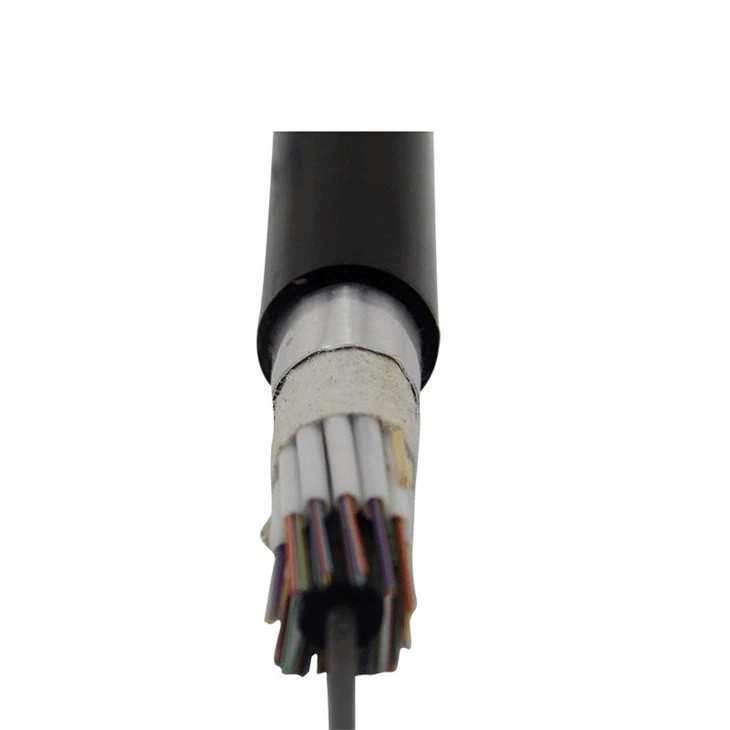

QYY- 24 Core Fiber Optic Cable
Features：
. High bandwidth capacity – Our cables are capable of transmitting data at speeds of up to 10 Gbps,
ensuring lightning-fast data transfer rates for even the most demanding applications.
. Low latency – Our cables provide low latency, ensuring that data is transmitted quickly and efficiently without any delay or lag.
. High durability – Our cables are designed to be highly durable, ensuring that they can withstand harsh
conditions without breaking or compromising the quality of data transmission.
. Environmentally friendly – Our cables are constructed using environmentally friendly materials,
ensuring that they are safe and sustainable for use in any environment.
. Cost-effective – Our cables provide excellent value for money, delivering superior performance and durability at an affordable price point.

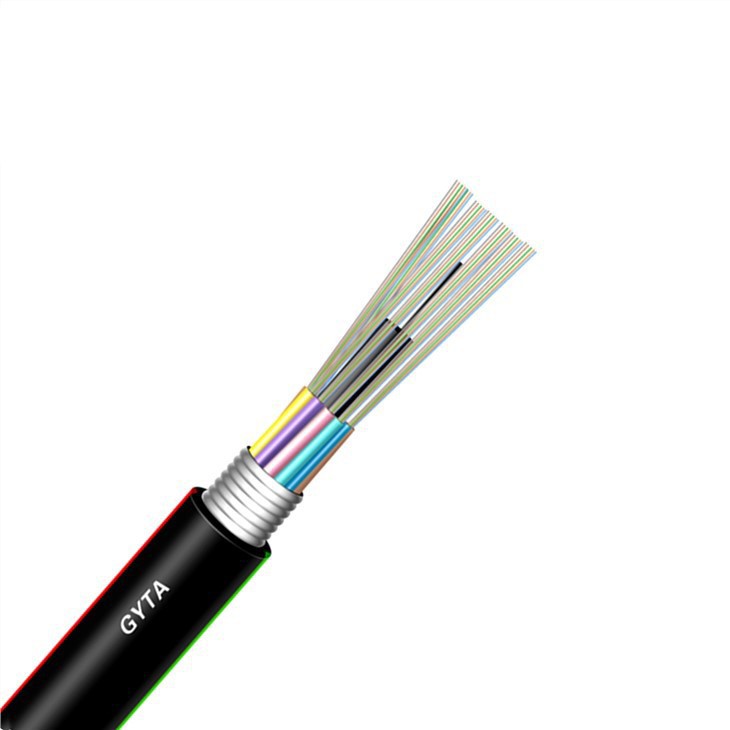

Fiber Optic Cable GYTA Features：
. Low dispersion and attenuation
. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
. Aluminum-PE jacket make cable have nice properties of moisture resistance
. With small cable diameter, light cable weight, easily to lay
. The jacket also can be made of HFFR, which cable model is GYTZA
. Operating Temperature : -40 ~ +60 C
Optical Characteristics / PRODUCT：
G.652
G.655
50/125μm
62.5/125μm
@850nm
≤3.0dB/km
≤3.0dB/km
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
@1550nm
≤0.22dB/km
≤0.23dB/km
Bandwidth (Class A)
@850
≥500MHZ·km
≥500MHZ·km
@1300
≥1000MHZ·km
≥600MHZ·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm
Attenuation
(+20℃)
