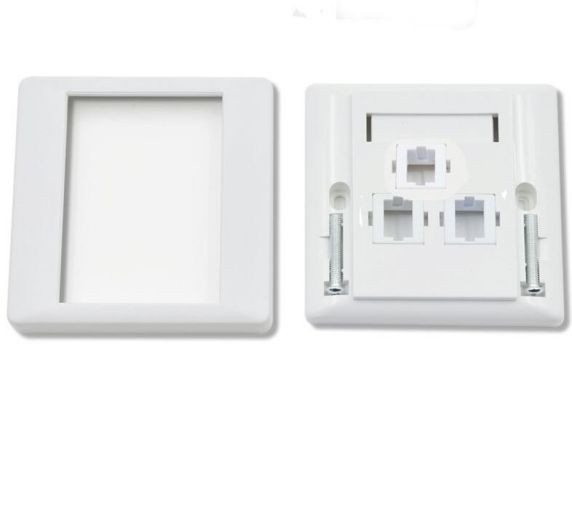

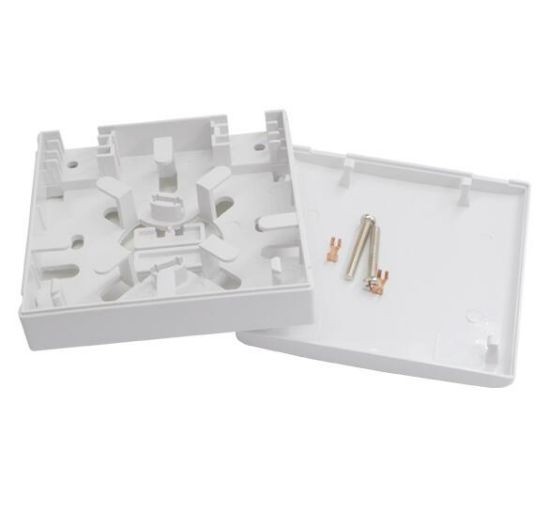

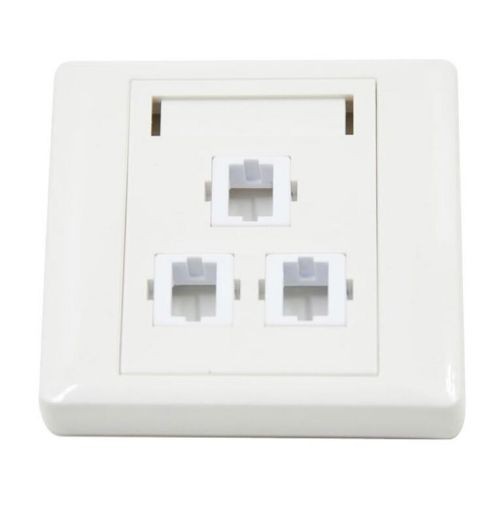

  • QYY- FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box
  • QYY- FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box
  • QYY- FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box
QYY- FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box QYY- FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box QYY- FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box

QYY- FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box

  • Name:FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box
  • Fiber Type:Single Mode(SM) & Multi Mode(MM)
  • fibre faceplate,fiber interface panel,ROK-MB,Optical fiber panel
    Inquiry Send Email

    Description

    QYY- FB- SC LC Fiber Optic Wall Outlet Faceplate terminal box



    Features:

    . Equipped with dust prevention device to prevent dust from entering
    . Embedded face frame for easy installation
    . Reasonable internal space design
    . Equipped with identification strips for easy number management and maintenance use




    Other functions of the fiber optic panel:

    . The fiber optic panel can be easily opened and used, and should have a certain dustproof function.
    . The fiber optic panel can provide various connection methods such as fusion welding, cold welding, and on-site connection, and provide fixation and protection for the fiber optic connector.
    . It can provide access and port output for single or two core optical cables, with interface types of SC or LC adapters.
    . The fiber optic panel has the fixed function of butterfly shaped incoming optical cables and other conventional indoor and outdoor optical cables, and ensures its performance is not affected.
    . The optical fiber panel should have sufficient cable space, and the bending radius of the internal optical fibers or cables should not be less than 30mm. A minimum of 4Ocm of indoor optical cables can be left.
    . Fully meet the requirements of fiber bending radius and provide wiring routing and protection for the introduced fiber. g) Butterfly shaped fiber optic cables can be introduced from the side or bottom of the fiber optic panel.


    The fiber optic panel provides the following four installation methods for fiber optic termination:

    . Install a straight on-site end socket.
    . Install on-site terminated plugs and optical adapters.
    . Install fiber optic hot melt and optical adapter.
    . The fiber optic panel can be compatible with any of the above methods. L-type on-site terminated sockets are not a necessary condition. If on-site terminated plugs and adapters are installed in the sockets, the adapter interface should not protrude. The fiber optic movable connector plugs and adapters in the fiber optic panel of the socket panel should use SC and LC types, which should comply with the communication industry standards of relevant products.
