Description

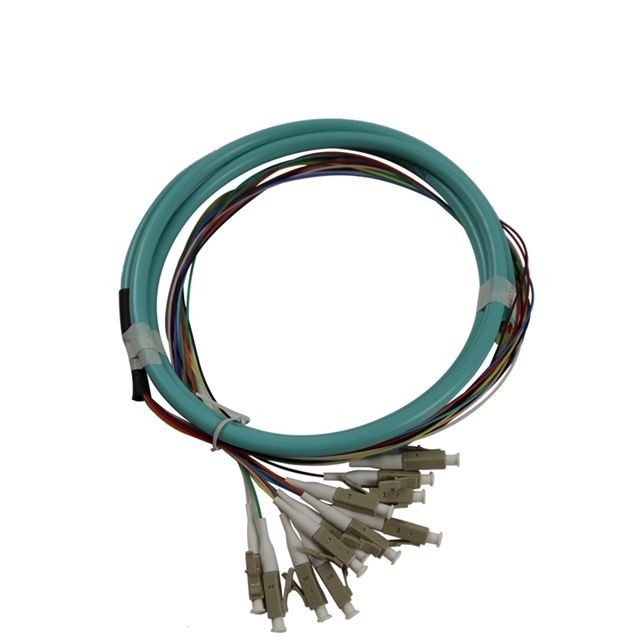

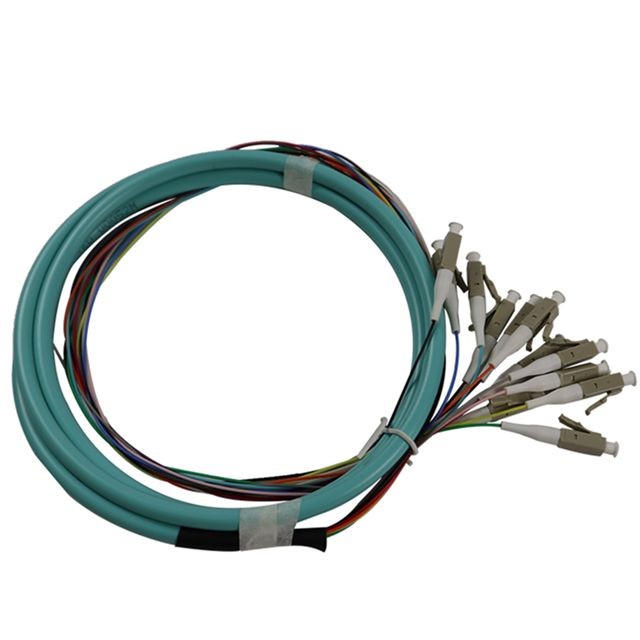

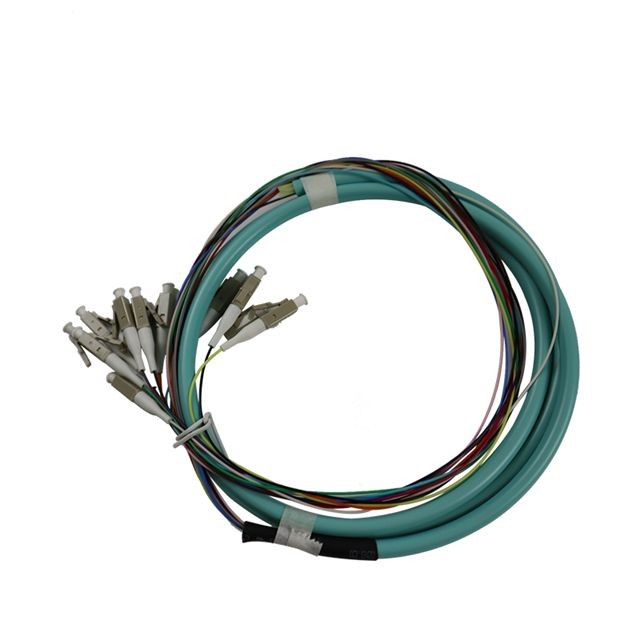

QYY- 12 Fibers LC/UPC tengiskott OM3 Multimode Bunch Fiber Optic Pigtail PVC Outer Jacket
Features:
. Superior qualified standard PC, APC, UPC, SPC polishing;
. 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
. 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
5) Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector
7) Simplex and duplex connector available; 8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.
Application：
. Cable jacket: PVC, LSZH, OFNP, OFNR
. Cable length: 1m, 2m, 3m, 5m….customized
. Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
. Active Device Termination
. Industrial, medical & military
. Video transmission, Data transmission
. Telecommunication and Data processing Networks
. FTTH, CATV, LAN, MAN, WAN, Test &Measuremen
. Systems Integration for Long Haul, Metro and Access Network
Specifications:
|
Parameter
|
Unit
|
Bundle multi-fiber connector
|
||
|
SM
|
||||
|
PC
|
UPC
|
APC
|
||
|
Insertion loss (typical)
|
dB
|
≤0.3
|
≤0.2
|
≤0.3
|
|
Return loss
|
dB
|
≥45
|
≥50
|
≥60
|
|
Operating wavelength
|
nm
|
1310, 1510
|
||
|
Exchangeability
|
dB
|
≤0.2
|
||
|
Vibration
|
dB
|
≤0.2
|
||
|
Operating temperature
|
°C
|
-40~75
|
||
|
Storage temperature
|
°C
|
-45~85
|
||
|
Cord diameter
|
mm
|
φ3.0,φ2.0,φ0.9
|
||
|
Fiber count
|
F
|
4, 6, 8, 12, 24, … fibers
|
||
|
Applicable connector
|
|
FC, SC, ST, MU, LC
|
||
