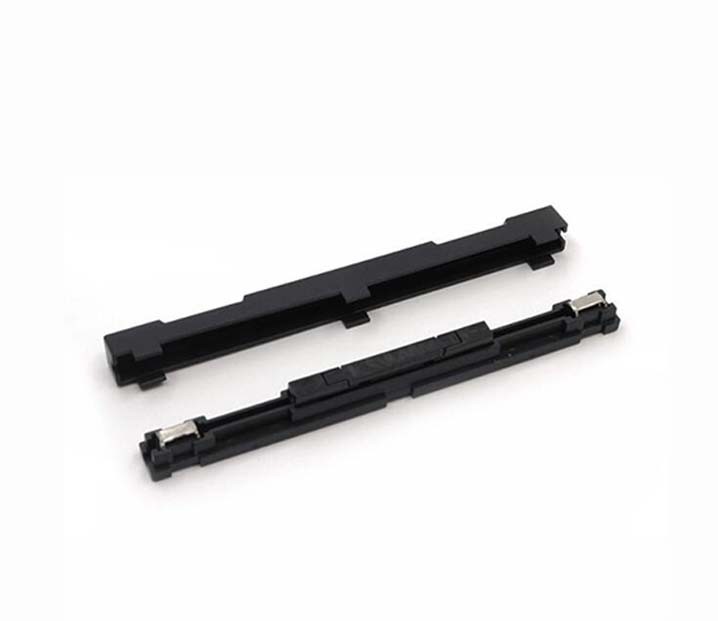

  • QYY-Butt connector cable bare fiber quick connector

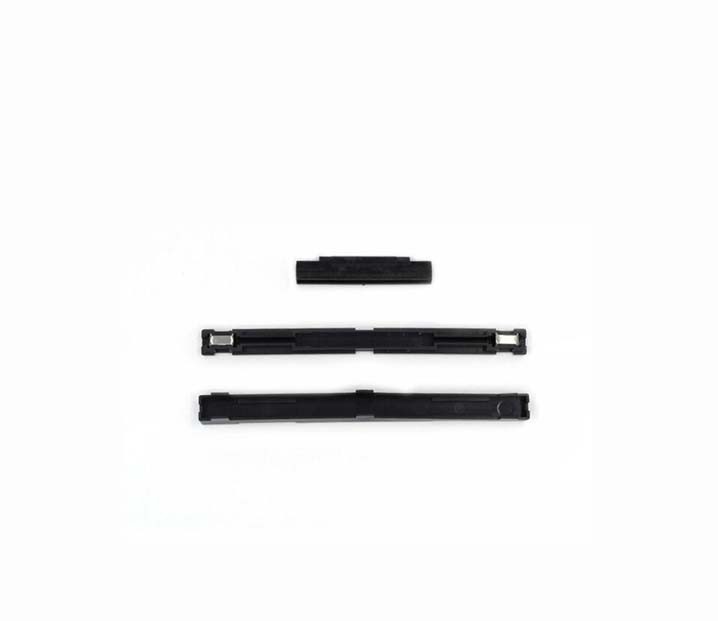

  • QYY-Butt connector cable bare fiber quick connector

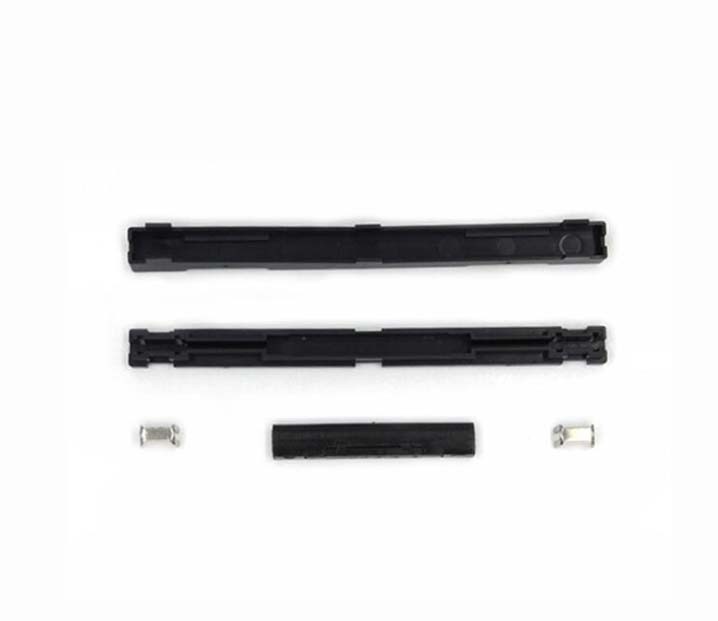

  • QYY-Butt connector cable bare fiber quick connector
QYY-Butt connector cable bare fiber quick connector QYY-Butt connector cable bare fiber quick connector QYY-Butt connector cable bare fiber quick connector

QYY-Butt connector cable bare fiber quick connector

  • Product name:Butt connector cable bare fiber quick connector
  • Type: single mode or multimode
  • Optical fiber diameter:SM(9/125)、MM(50/125、62.5/125) 125μm ( 657A & 657B )
  • Insertion Loss: ≤ 0.3dB(1310nm & 1550nm)
  • Fiber Accessories,Connector,single mode multimode ,Fiber Optic Connector
    Inquiry Send Email

    Description

    QYY-Butt connector cable bare fiber quick connector

    Features:

    1.FTTH project usable
    2.Field installable
    3.Insert loss less than 0.15dB
    4.Metal V-shape cavity work well in high and low temperature
    5.Installation less than 1 minutes
    6.Reliable and superior optical performance
    7.Cable Tensile test complies with Telcordia GR-326-COR

    Application:

    1.Distribution frames
    2. Maintenance or emergency restoration of fiber networks
    3. Patch panels
    4. FTTH Outlets
    5. Field word

    Specifications:

    Applicable for Drop cable / Indoor cable
    0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
    Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)
    125μm ( 657A & 657B )
    Tight buffer diameter 250μm
    Fiber mode Single mode
    Operation time About 100s(no fiber cut)
    Insert loss ≤ 0.3dB(1310nm & 1550nm)
    Return loss > 40db(PC)
    Fastening strength of naked fiber >5 N
    Fastening strength of naked fiber holder >10 N
    Tensile strength >50 N
    Using temperature -40~+80°C
    On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB
    Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
    Drop-off test (drop-off height 4m,once per direction, totally 3 times) IL ≤ 0.
