Description

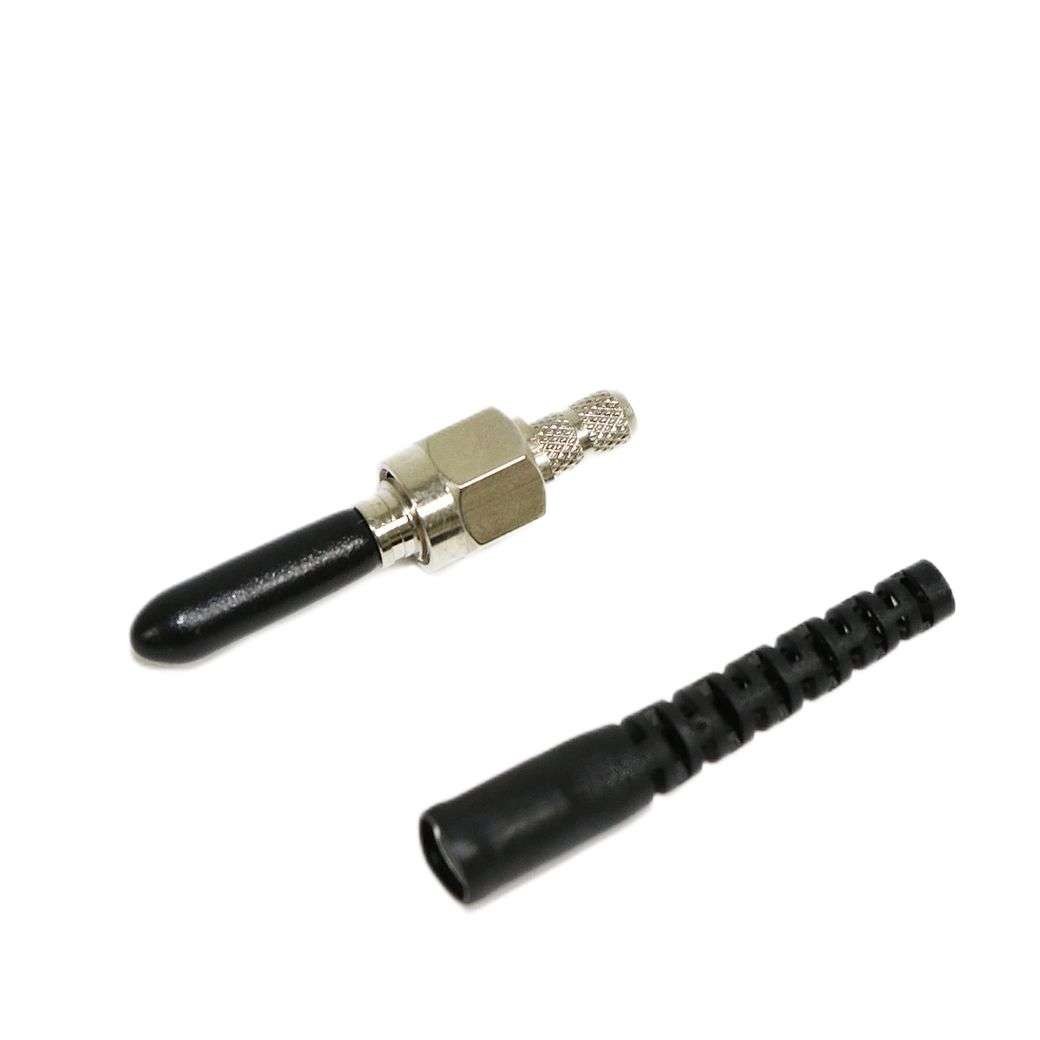

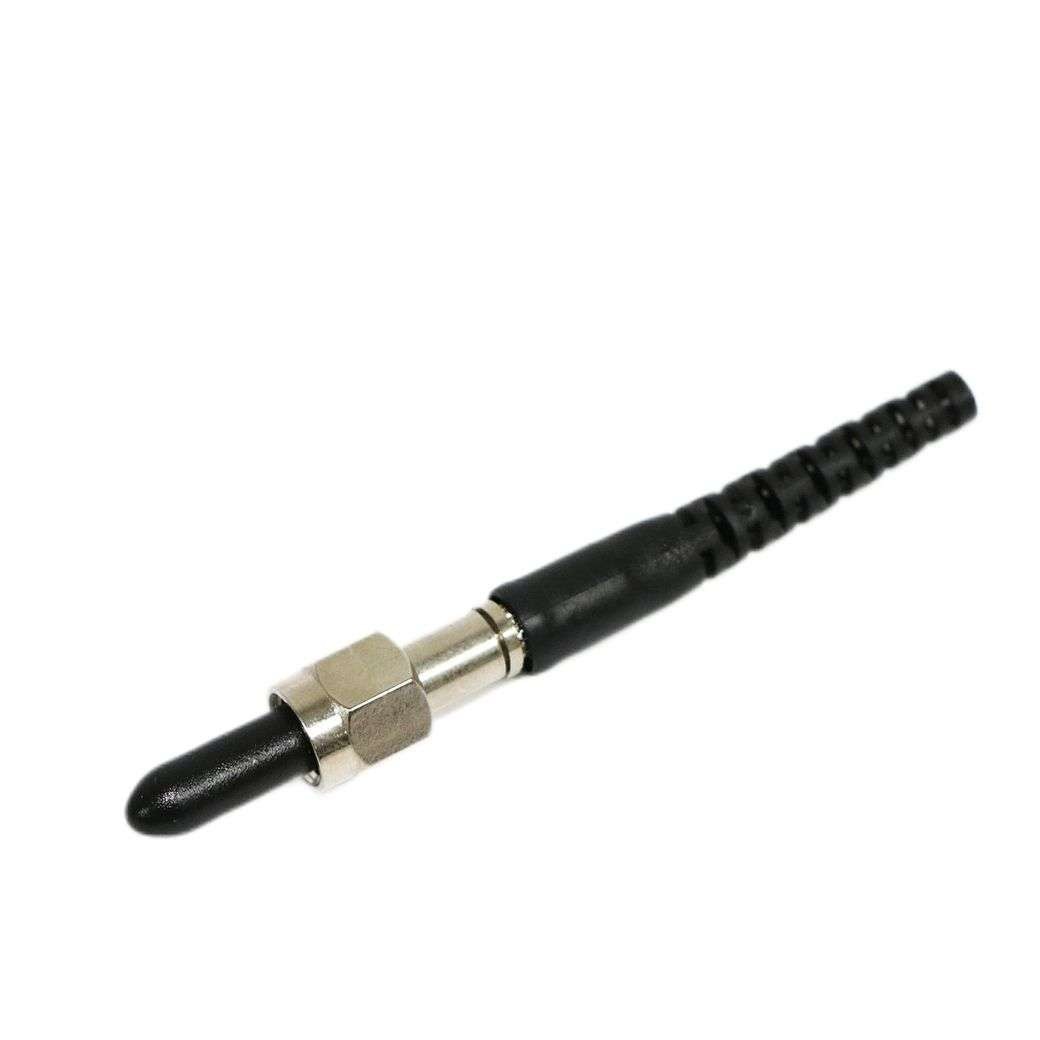

QYY- SMA 905 Fiber Optic Connector with Ceramic
Features:
. Low insertion loss
. High back reflection loss
. Stable capability and high reliability
. Precision mechanical dimension
specifications：
Cable OD : 0.9/2.0/3.0mm
Housing Material : Metal
Insertion Loss : <0.3dB Return Loss >50dB
Application：
. Telecom network
. Wide area networks
. Optical test equipment
. Local area networks
Sma Fiber Optic Connector Specification:
| Paramter | Singlemode(PC) | Singlemode(APC) | Multimode (PC) |
| Insertion loss | ≤0.2 dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50 dB | ≥65 dB | ≥35 dB |
| Operating Temperature | -40°C to +80°C | -40°C to +80°C | -40°C to +80°C |
Fiber Optic Connector Sma Order Information:
| Item | Connector Description | Item | Connector Description |
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
|
DIN |
