Description

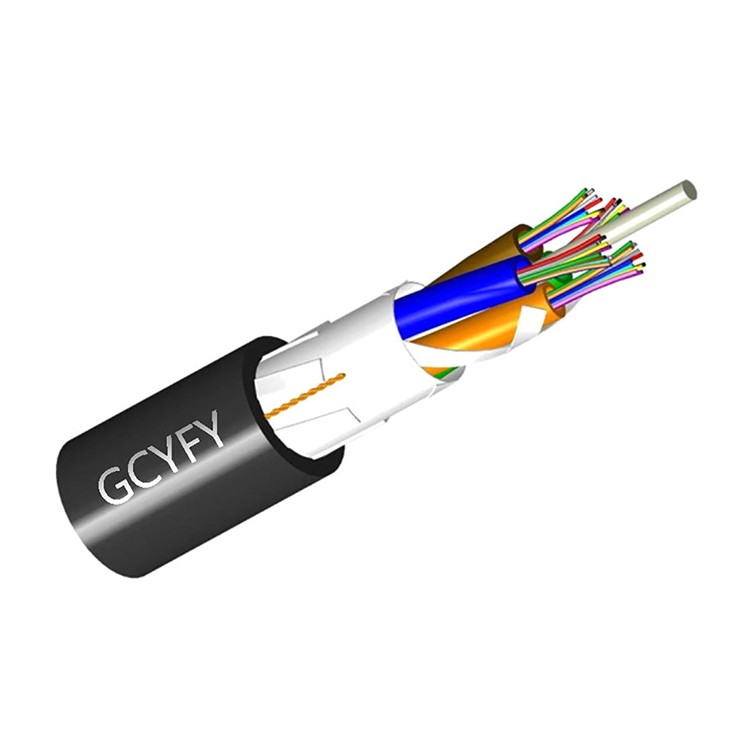

QYY- GCYFY Micro air blown Cable LSZH 2~288 core
Features：

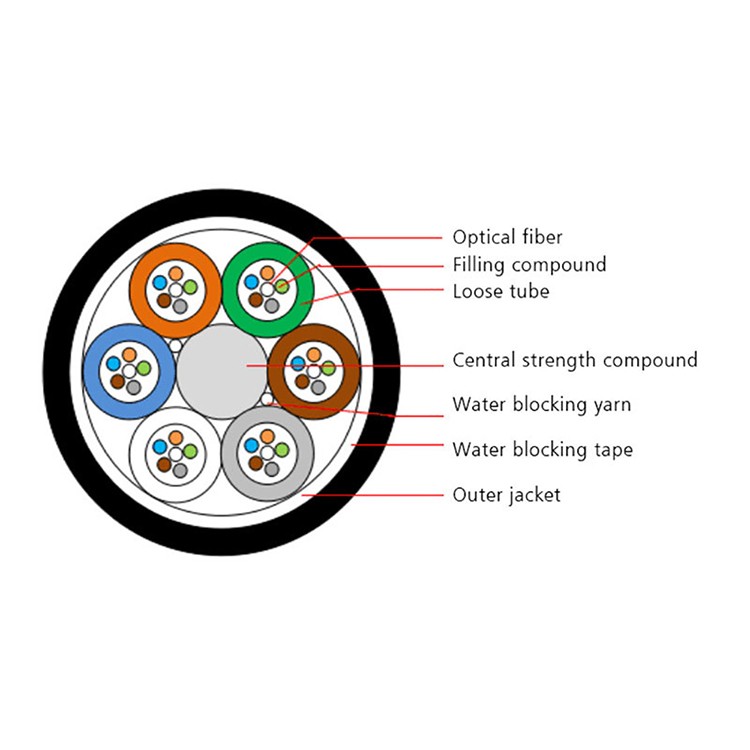

. Using center tube design less than 24f to get more compact structure
. Small outer diameter, light weight, low friction sheath material
. Accurate excess fiber length control to get stable cable performance
. Stable temperature cycling performance by special process control
. High speed, long distance air-blowing, efficient installation
. Optional LSZH outer sheathing, applicable for access to indoor
. Optional 200μm mini optical fiber to get smaller outer diamete
Parameters：
| Application | Air Blown Micro Duct |
| Jacket Material | PE/LSZH |
| Outer Diameter | 5.6---8.0 mm |
| Fiber type | Single Mode/Multimode |
| Wavelength | 1310nm/1550nm |
| Cores Number | 2~288 |
| Strength Member | Steel Wires Stranded |
| Armored | Corrugated Steel Tape |
| Product Keywords | air blown fiber optical cable, air blown fiber duct, air blown fiber cable |
| Item | Unit | Specification | ||
| G. 652 | ||||
| Mode field diameter | 1310nm | mm | 8.6±0.4um | |
| 1550nm | mm | 9.8±0.8um | ||
| Cladding diameter | mm | 124.8±0.7 um | ||
| Cladding non-circularity | % | ≤0.7% | ||
| Core/cladding concentricity error | mm | £0.5 | ||
| Coating diameter | mm | 242 ± 7 | ||
| Coating/cladding concentricity error | mm | £12 | ||
| Cable cut-off wavelength | nm | £ 1260 | ||
| Attenuation Coefficient | 1310nm | dB/km | £0.36 | |
| 1550nm | dB/km | £0.22 | ||
| Proof stress level | KPSI | ≥100 | ||
