Description

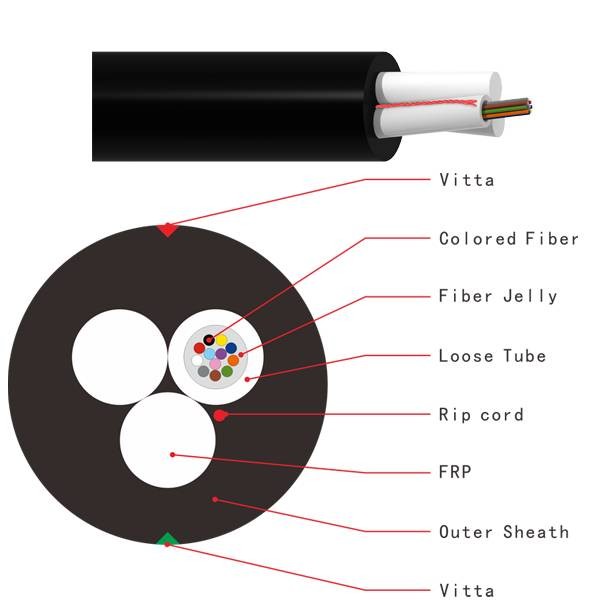

QYY- GYFFY TWO FRP Aerial Fiber Optic Cable
Feature：
. Small Size and Ligth Weight
. Two FRP as strength member to provide good tensile performance
. Gel Filled or gel free , good waterproof performance
. high fiber capacity
. applicable for short span aerial and duct installation
Specifications：
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Atenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | ||||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth | @850 | ≥200MHZ·km | ≥200MHZ·km | ||
| （ClassA） | @1300 | ≥500MHZ·km | ≥500MHZ·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable cut-off wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters：
| Cable Core | Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes | 1 | 1 | 1 | 1 | 1 | 1 | |
| No. Of fibers | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80，1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ℃ | -20℃ to +65℃ | |||||
