DESCRIPTION:

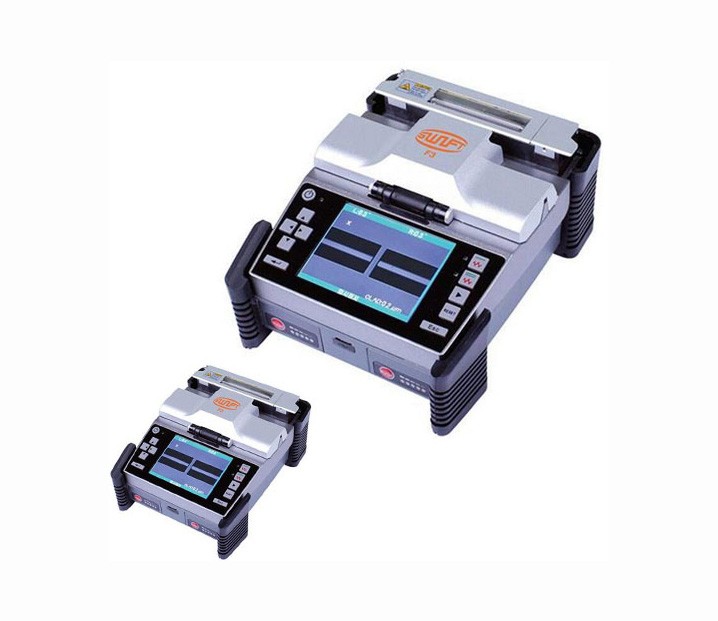

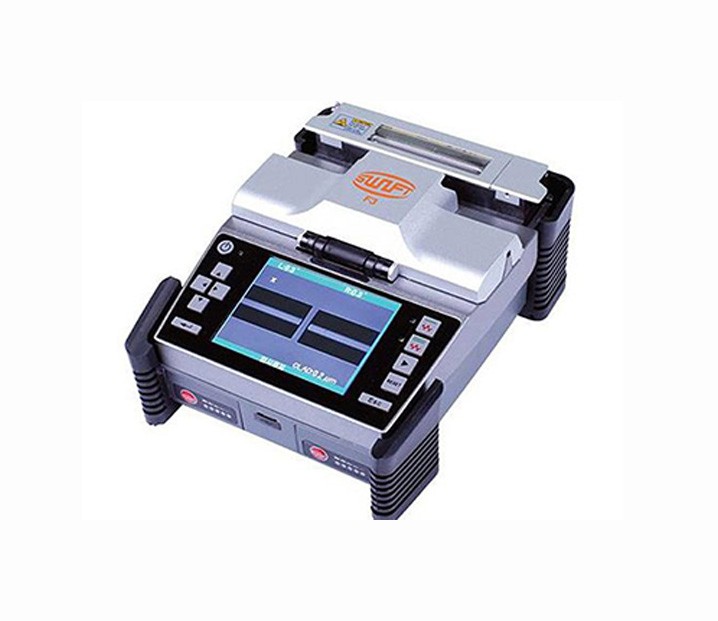

1.Ilsintech fusion splicer
2. Small and thin
3.Color TFT-LCD screen
4.Standard accessories
5.Including Cleaver MAX CI-01A
6.Language menu: available in English or Chinese.
Application:
| 1.SMF,MMF,DSF ,NZDSF |
Specification：
1.Alignment：Fixed V-Groove (clad to clad)
Fiber diameter：Cladding diameter:125渭m;Coating diameter:250~900渭m
Cleave length：5~16mm
Average Splice LOSS：0.03dB(SM),0.02dB(MM),0.06dB(DS,NZDS)
Splicing time：7sec
Heating Time：20 sec (0.9mm fiber),70 sec (indoor,3.0mm,indoor cable)
Sleeve time：30 sec (0.9mm fiber),40mm (2.0,3.0mm,indoor cable)
Tension Test：1.69N
Splice Memory：2000
Compatible Cable：0.25mm,0.9mm,2.0mm,3.0mm,indoor cable
Power：DC li-polymer battery,100~240V AC Adapter
Battery Capacity：1400mAHx2
No.of splicing/Heating with battery：Typical 120 cycles (0.9mm fiber)
Operating Temp：-10~+50 C
Storage Temp：-10~+80 C
Dimensions：135(W)mm x 200(L)mm x82mm(H)

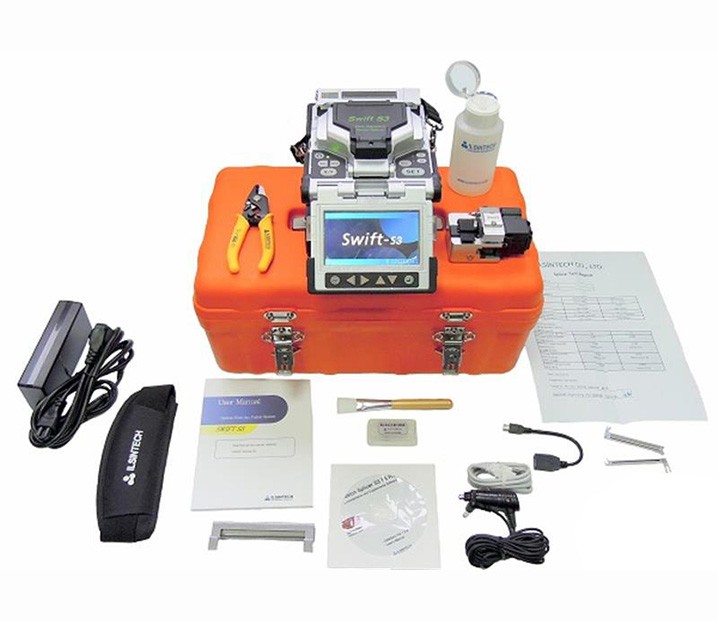

PACKING LIST
NO
ITEM
QTY
REMARKS
1
Main unit
1Pcs
Main Body
2
AC Adapter
1Pcs
Accessories
3
Battery Charger
1Pcs
Accessories
4
Battery Pack
1Set
Accessories
5
Fiber Holder
1Set
Accessories
6
Spare Electrode
1Pair
Accessories
7
Cooling Tray
1Pcs
Accessories
8
Carrying Case
1Pcs
Accessories
9
User Guide CD
1Set
Accessories
