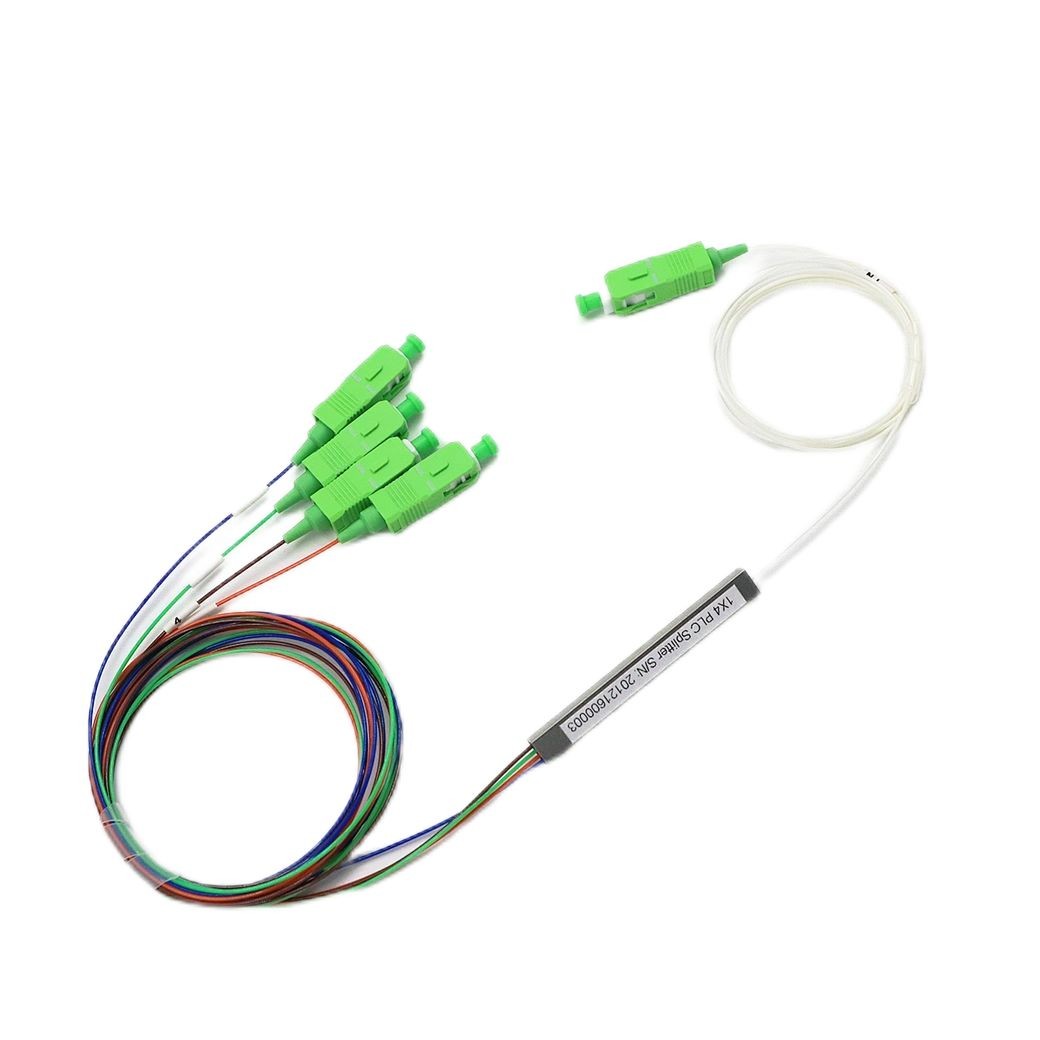

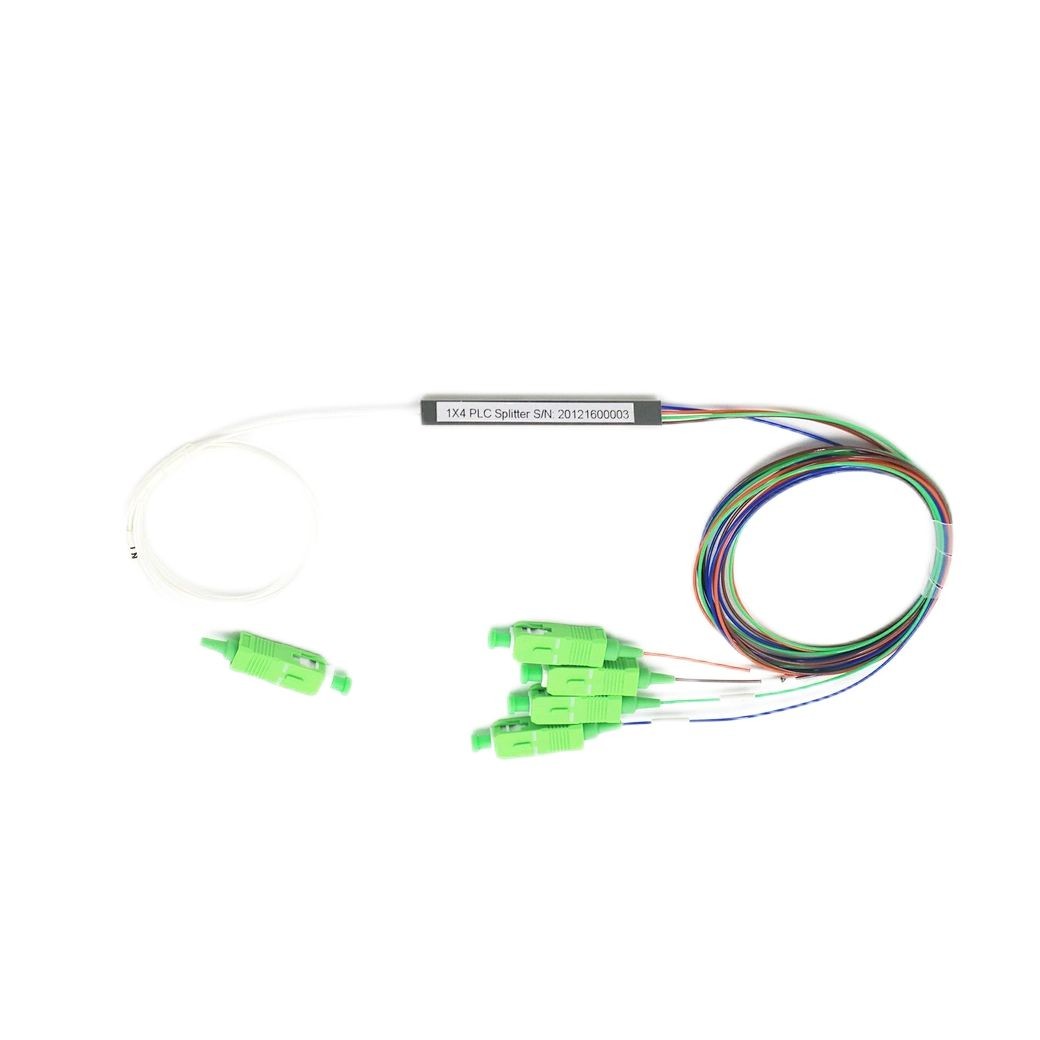

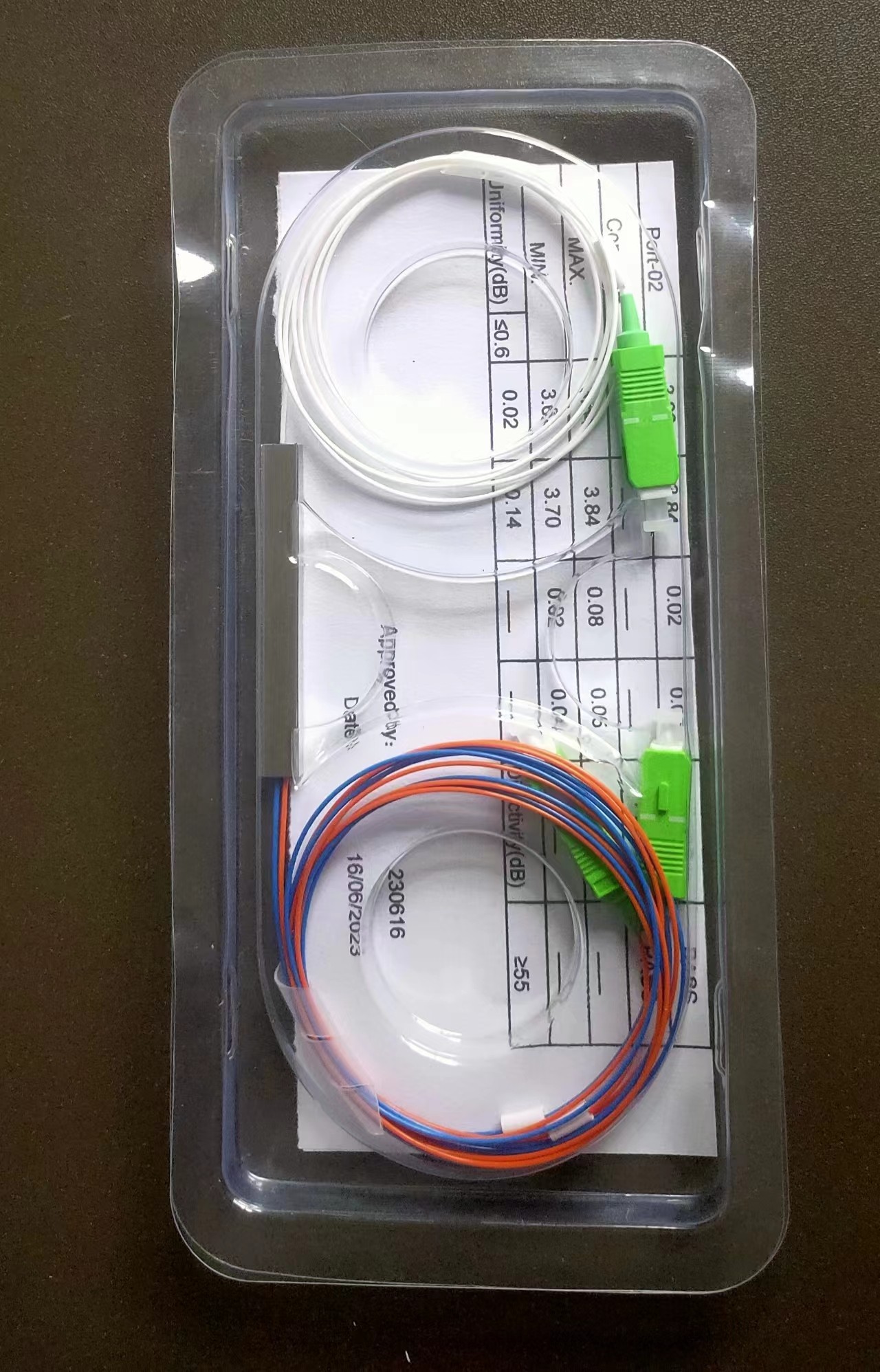

QYY- G652D G657A1 G657A2 Steel Tube PLC Fiber Optic Splitter 1x4
Features:
. Good uniformity and low insertion loss
. Low Polarization Dependent Loss
. Excellent Mechanical
. Stability Telecordia GR-1221 and GR-1209
. Components through TLC-Certified,Conform to YD1117-2001
. Operating environment: -40ºC to +85ºC
. High Polarization Extinction Ratio & Excellent Uniformity
. Fiber input: 0.9mm or 250μm fiber for choice
. Fiber output: 250μm bare fiber (It is benefit for splicing)G.657A Fiber
. Bare Fiber Type PLC Splitter Applications
Application：
. Fiber to the point (FTTX)
. Fiber to the home (FTTH)
. Passive optical networks(PON, GEPON)
. Local area networks (LAN)
. Cable television (CATV)
. Test equipment
Specification:
Table 1 – 1×N PLC Fiber Splitter:
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)(P/S Grade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.0
Return Loss (dB) (P/S Grade)
55/50
55/50
55/50
55/50
55/50
55/50
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
Directivity (dB)
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Stability(-40～85 ℃)(dB)
0.4
0.4
0.4
0.5
0.5
0.5
Operating Temperature (℃)
-40～85
Storage Temperature (℃)
-40～85
Package
Steel Tube or ABS
Order Information：
Table 2 – 2×N PLC Fiber Splitter:
Parameters
2×2
2×4
2×8
2×16
2×32
2×64
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)
4.0
7.6
11.0
14.4
17.5
21.0
Loss Uniformity (dB)
0.6
1.0
1.2
1.5
1.8
2.2
Return Loss (dB) (P/S Grade)
55/50
55/50
55/50
55/50
55/50
55/50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.4
0.4
Directivity (dB)
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.4
0.5
0.5
0.5
0.5
Temperature Stability(-40～85 ℃)(dB)
0.4
0.4
0.4
0.5
0.5
0.5
Operating Temperature (℃)
-40～85
Storage Temperature (℃)
-40～85
Package
Steel Tube or ABS
Notes:
Specified without connectors.
Add an additional 0.15dB loss per connector
