Description

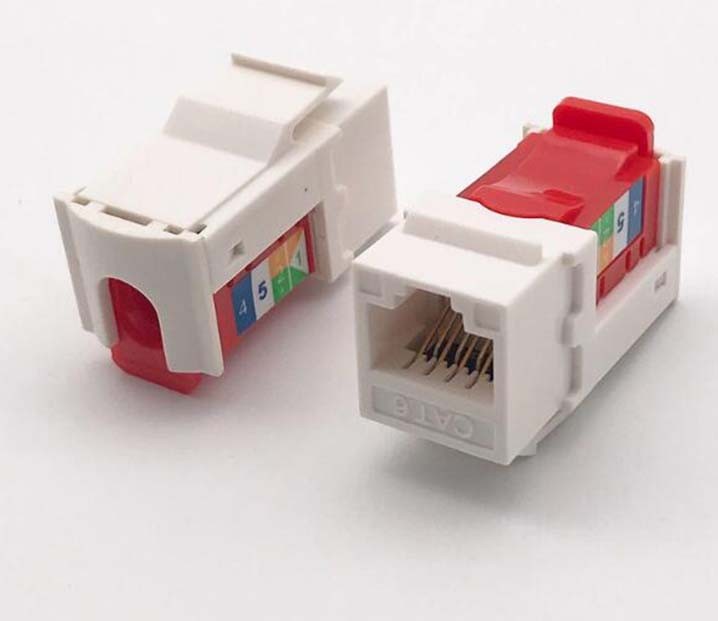

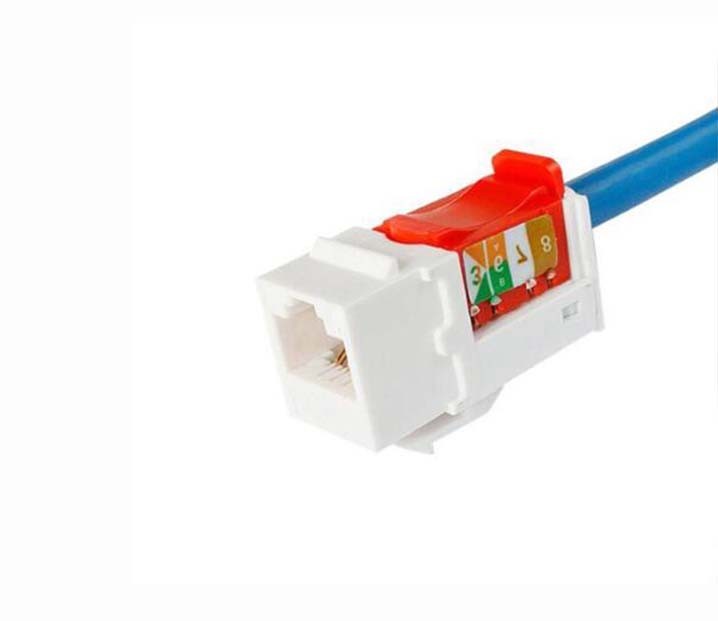

QYY-RJ45 CAT6 UTP 90 degree toolless Keystone Jack
Specification:
Electrical
Voltage Rating：
AC 125V
Current Rating：
1.5 AMPS
Insulation Resistance：
500MΩ Min
Withstand Voltage：
DC 1000V RMS 50-60Hz Min
Contact Resistange：
20MΩ Max
Mechanical：
Insertion Force：
2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength：
70N between jack and plaug;60N between wire and IDC
Durability：
Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire：
AWG 24-26
Material：
Housing：
PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing：
PC(UL94V-0);PBT(UL94V-0)
Spring Wire：
T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact :
Phosphor bronze;Nickel plating
Shielding：
T=0.25mm copper alloy with tin plated gold
Plating ：
3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment：
Temperature：
-10°c-60°c
Humidity：
10-90%
