  • QYY- OTDR FTTH Fiber Optic Launch Cable Box
  • QYY- OTDR FTTH Fiber Optic Launch Cable Box
  • QYY- OTDR FTTH Fiber Optic Launch Cable Box
  • QYY- OTDR FTTH Fiber Optic Launch Cable Box
QYY- OTDR FTTH Fiber Optic Launch Cable Box QYY- OTDR FTTH Fiber Optic Launch Cable Box QYY- OTDR FTTH Fiber Optic Launch Cable Box QYY- OTDR FTTH Fiber Optic Launch Cable Box

QYY- OTDR FTTH Fiber Optic Launch Cable Box

  • Name:OTDR FTTH Fiber Optic Launch Cable Box Single Mode LSZH 1KM 2KM
  • Fiber Type:SM(9/125) MM(62.5/125)
  • Connector Type:FC/LC/SC/ST and PC or APC
  • Connector Type:<0.5dB @ 1310nm for 1000 meters
  • Fiber Optic Launch Cable Box,Fiber optic fusion tool,OTDR,Fiber optic cable toolbox
    Inquiry Send Email

    Description

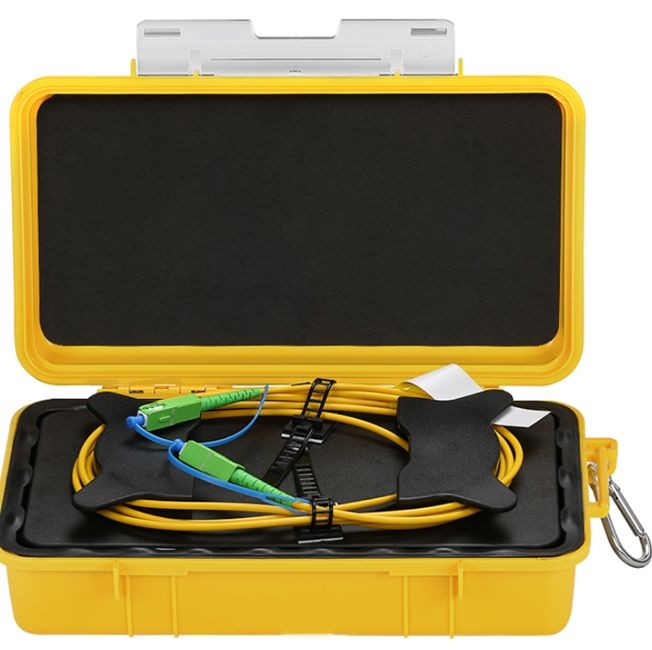

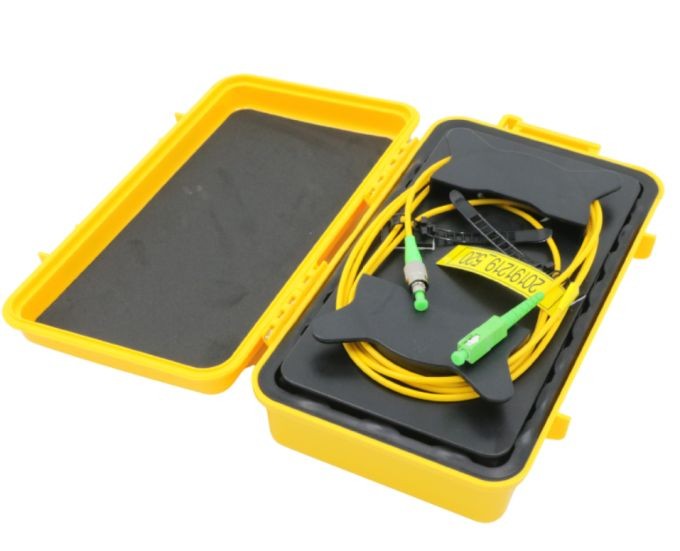

    QYY- OTDR FTTH Fiber Optic Launch Cable Box



    Features:

    . Small volume, light weight, easy to carry

    . Waterproof and dust-proof

    . Loss less than or equal to 0.5dBm/km

    . Single-mode, Multi-mode fibers are optional

    . Length available: 500 m, 1 KM, 2 KM... 5 KM etc.

    . Fiber optic connectors available: FC/LC/SC/ST and PC or APC


    Application Of OTDR Fiber Optic Launch Cable:

    . Use as OTDR launch/receive cable.
    . Test link loss with an OTDR.
    . Measure insertion loss and reflectance of near/far end connector.
    . Pulse suppressor for the first reflection at the beginning of a fiber.


    Specifications:

    Product Name
    OTDR Launch Cabel Box
    Application
    FTTH FTTB FTTX Network
    Operating Temperature
    -40°to +55℃
    Material
    Polypropylene
    Weight
    0.75 kg (without fiber)
    L x W x H
    9.37 X 5.56 X 2.62 cm
    Typical Loss
    <0.5dB @ 1310nm for 1000 meters
