Description

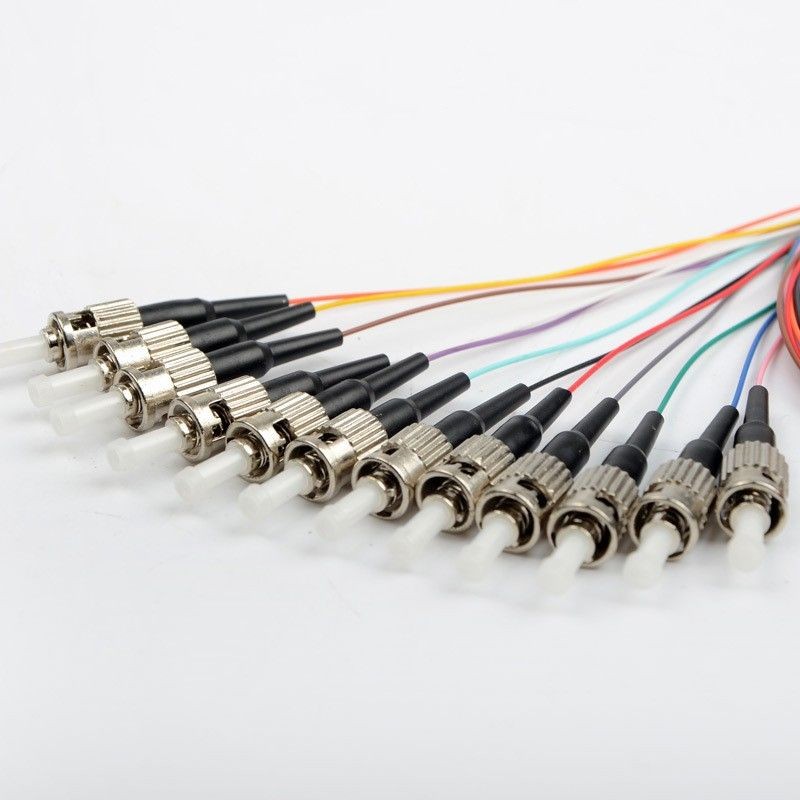

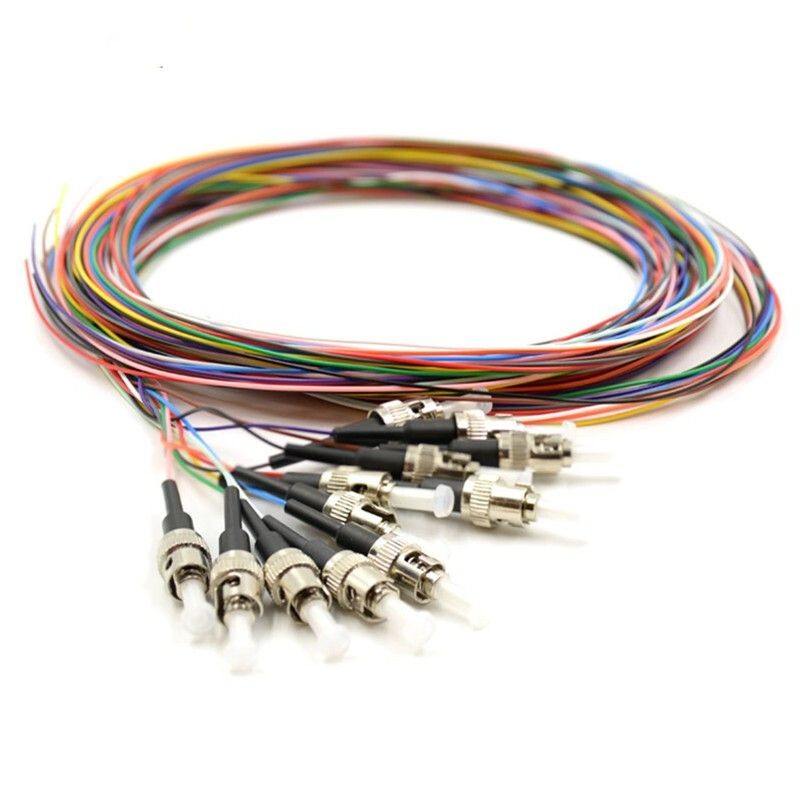

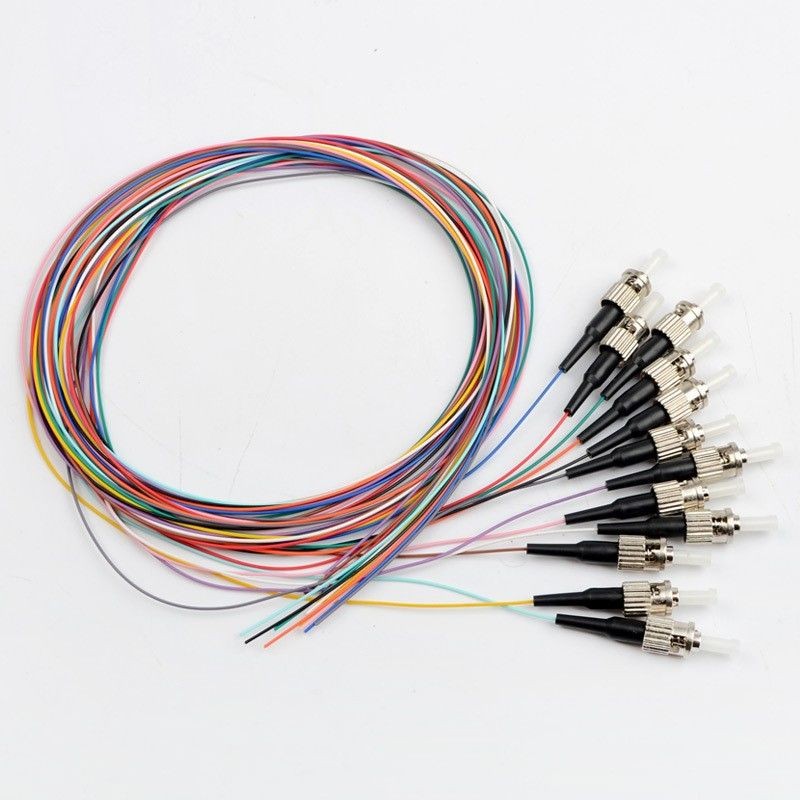

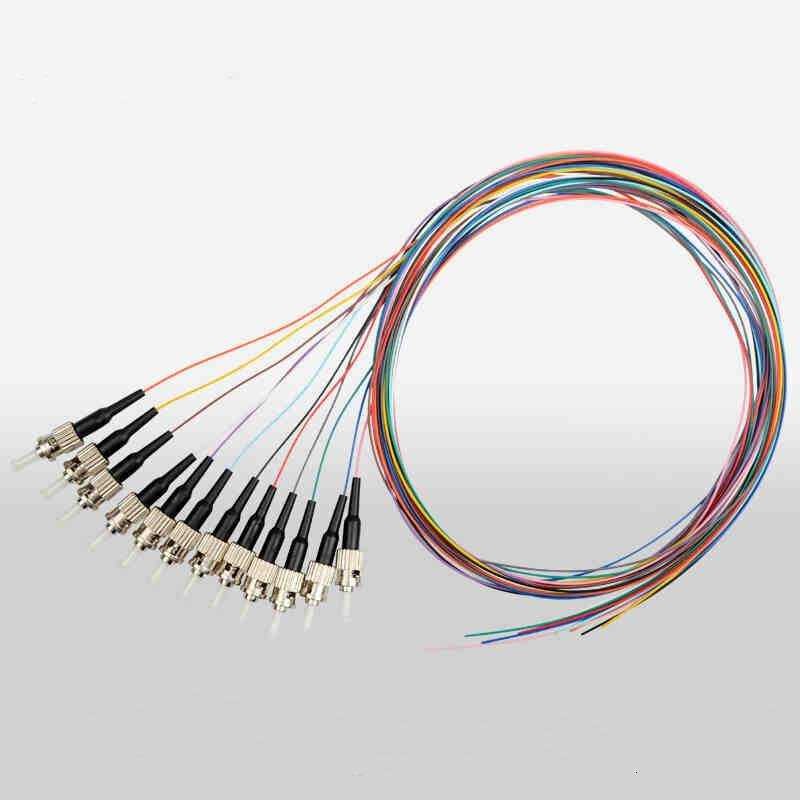

QYY- ST 12 Fiber SM Multi Color Fiber Optic Pigtails 1Meter
Features:
. Superior qualified standard PC, APC, UPC, SPC polishing.
. 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC).
. 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC).
. φ0.9mm, φ2.0mm, φ3.0mm cable optional.
. Single mode (9125) or multi-mode (50/125 or 62.5/125) fiber available.
. FC, SC, LC, MU, ST, MT-RJ, etc connector
. Simplex and duplex connector available; 8) Good exchange ability and good durability.
. Available in fiber bunch, ribbon fan-out, pigtail available.
. Meets ISO9001, ROHS and Bell core GR 326-core standards.
. Customized specifications are welcomed.
Application：
. CATV, metro test equipment.ent;
. Telecommunication networks.
. Local area networks (LAN).
. Wide area networks (WAN).
. Premise installations;
. Data processing networks;
. Video and military active device termination.
Specifications:
Parameters
Standard Fiber Cable Assemblies
Fiber Type
SM (G.652/G.657A)
MM(OM1/OM2/OM3)
Jacket Materials
LSZH/OFNR/PVC
Connector Type
SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials
Ceramic
Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
≥35dB (PC/UPC)
Exchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)
-10~ + 70
Storage Temperature (° C)
-40 ~ +85
Package
1 set/bag
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB(PC/UPC)
≥55dB(APC)
