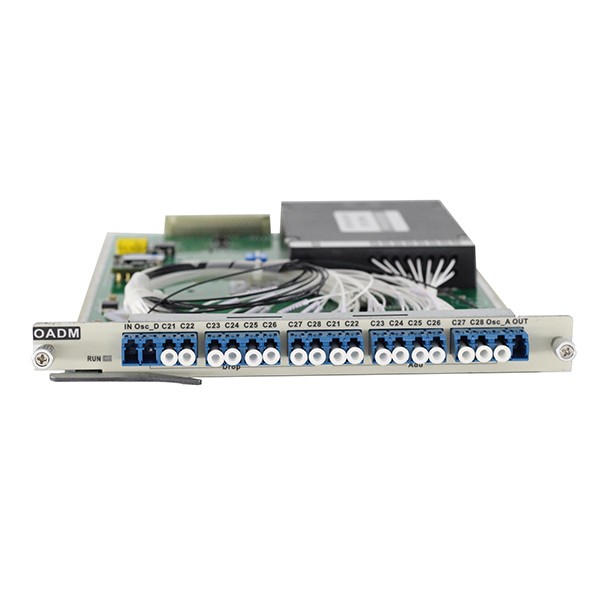

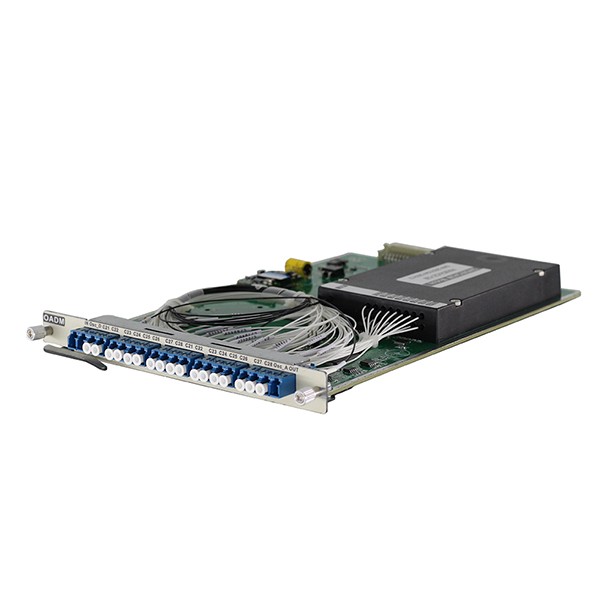

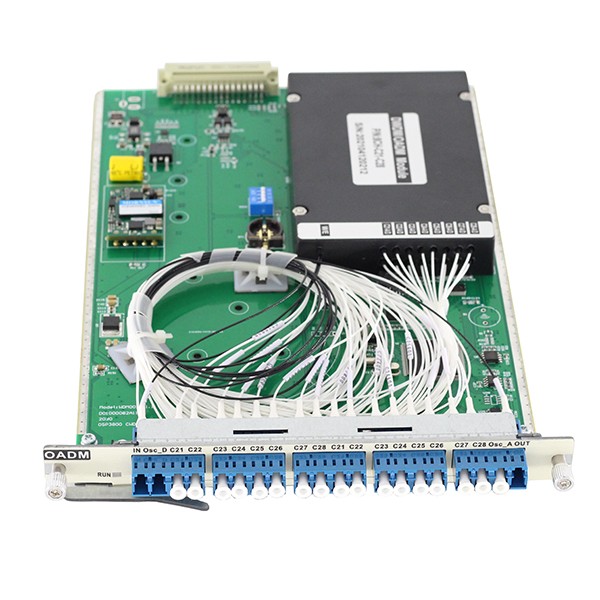

QYY- 8ch OADM DWDM Mux Demux

QYY- 8CH DWDM MUX DEMUX Dual Fiber 1U Rack Mount

Features:

. 8 Channel 100 GHz DWDM combined Multiplexer and Demultiplexer (MUX and DEMUX)

. Standalone compact form factor-1U, Installation friendly

. Plug’n play: requires no configuration

. Green product: completely passive, needs no power and no cooling

. Low Low insertion loss, insertion loss <=3dB,

. High channel isolation:adjacent isolation >=25dB; non-adjacent isolation >=40dB

. Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from HTFuture and other third parties

. High reliability, MTBF of 100 years

. Designed for Telcordia / Bellcore GR-120

Product Highlights:

. Support 2/4/8 channel add and drop

. Plug and play: requires no configuration

. Green product: completely passive, needs no power and no cooling

. Low insertion loss

. 2CH maximum insertion loss <=1.5dB

. 4 CH maximum insertion loss <=3dB

. 8CH maximum insertion loss <=4.5dB

. High channel isolation

. Adjacent isolation >=25dB

. Non-adjacent isolation >=35dB

Specifications:

Parameter		Specification			Unit
Channel Wavelength (nm)		ITU Grid			nm
Channel Spacing (GHz)		100GHz			Ghz
Channel		2	4	8
Channel Pass band		＞ 0.3			nm
Insertion Loss Flatness		＜0.5			dB
Insertion Loss	In—Drop/Add-Out	＜0.9	＜1.5	＜3	(dB)
	In---out	＜1.5	＜3.0	＜4.5	(dB)
Channel Isolation	Adjacent	25			dB
	non-adjacent	35			dB
Polarization Dependent Loss (dB)		<0.1			dB
Directivity (dB)		>50			dB
Return Loss （dB）		>45			dBm
Maximum Power Handling (mW)		26			mw
Size	OADM Module	191（W ) x 253（D）x 20（H）			mm
	4-slot chassis	482.5(W) x 350(D) x 44.5(H)			mm
	8-slot chassis	482.5(W) x 350(D) x 89(H)
