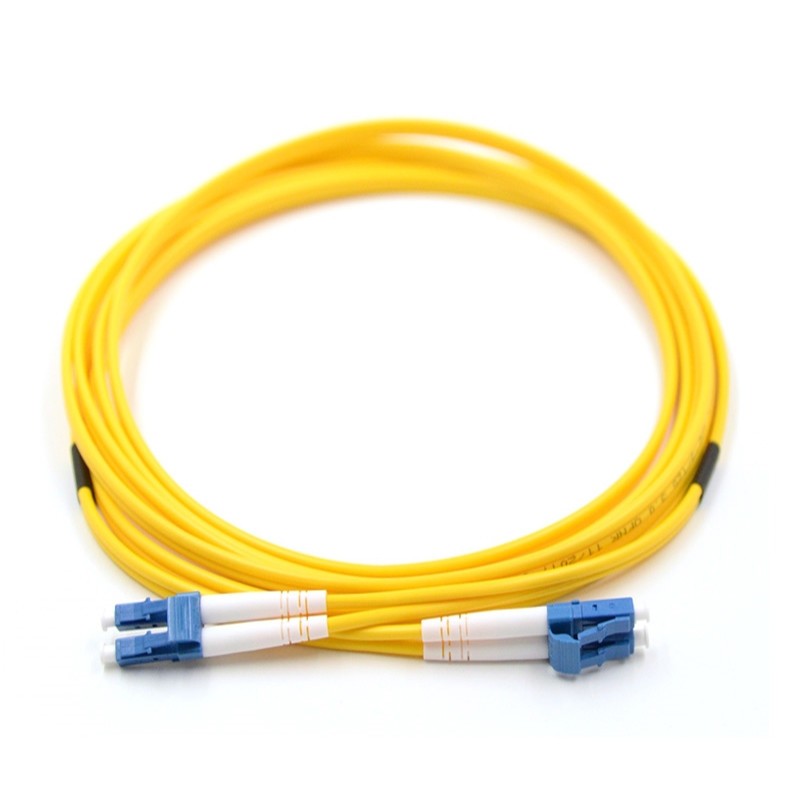

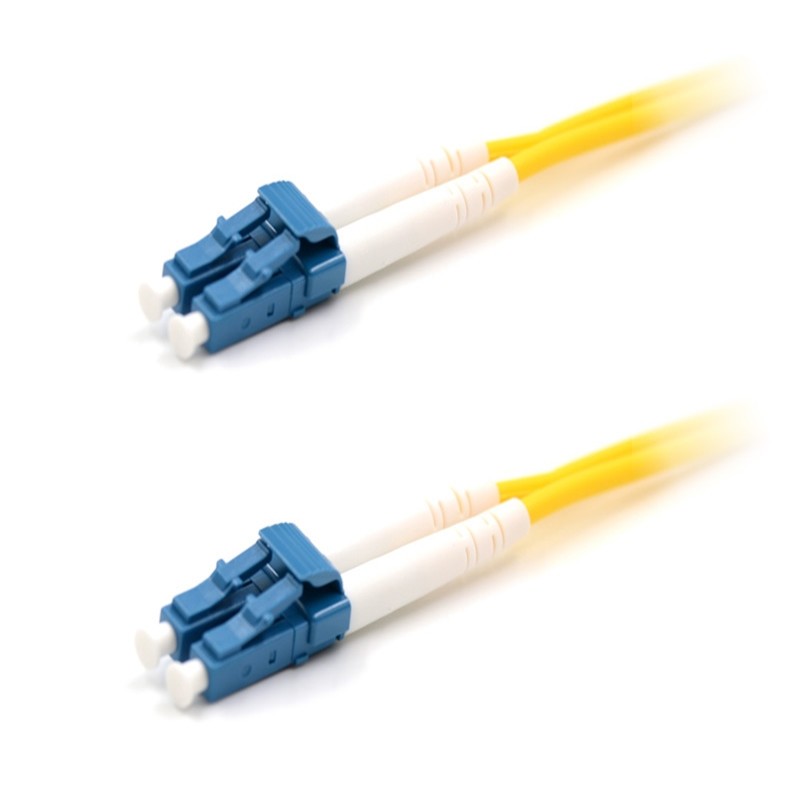

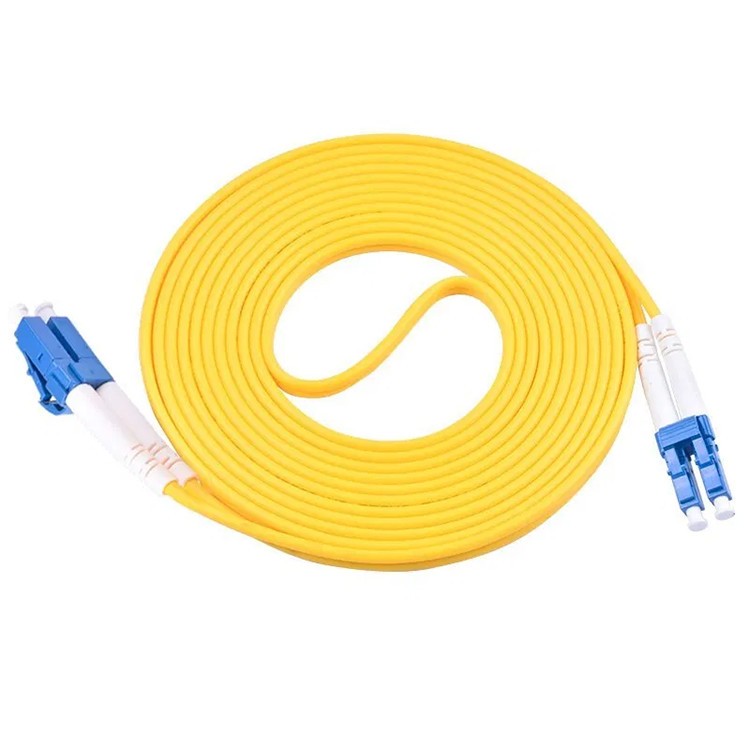

QYY- LC UPC - LC UPC 1m Duplex Connector Fiber Optic Patch Cord

  • Product Name：1m Duplex Connector Fiber Optic Patch Cord LC UPC - LC UPC
  • Fiber Coun：Duplex
  • Fiber Grade：SM G652D/G657A2
  • Cable Jacket Diameter：3.0mm Or 2.0mm
    • Fiber Optic Patch Cord  , Dual core multimode jumper  , single core single-mode jumper，ftthfttx
    Inquiry Send Email

    Description

    QYY- LC UPC - LC UPC 1m Duplex Connector Fiber Optic Patch Cord


    Feature：

    . Ideal for connecting 1G/10G/40G/100G Ethernet connections.

    . It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
    . Smart & Reliable - Bendable Optical Fiber
    . High Quality Fiber Optic Cable Guarantee




    Specification：

    Product Name
    LC LC Fiber Optic Patch Cord
    Fiber Grade
    SM G652D/G675A2
    Connector Type
    LC to LC
    Wavelength
    1310/1550nm
    Fiber Count
    Duplex
    Cable Jacket Diameter
    3.0mm/2.0mm
    Cable Jacket Material
    LSZH
    Ferrule
    UPC
    Cable Length
    4 M or customized
    Insertion Loss
    ≤0.3dB
    Return Loss
    ≥50dB
    Minimum Bend Radius
    10mm
    Operation temperature
    -40℃~ 85℃


    Application：

    . Fiber optic communication system
    . Fiber optic access network
    . In some fields such as fiber optic data transmission and local area networks.
