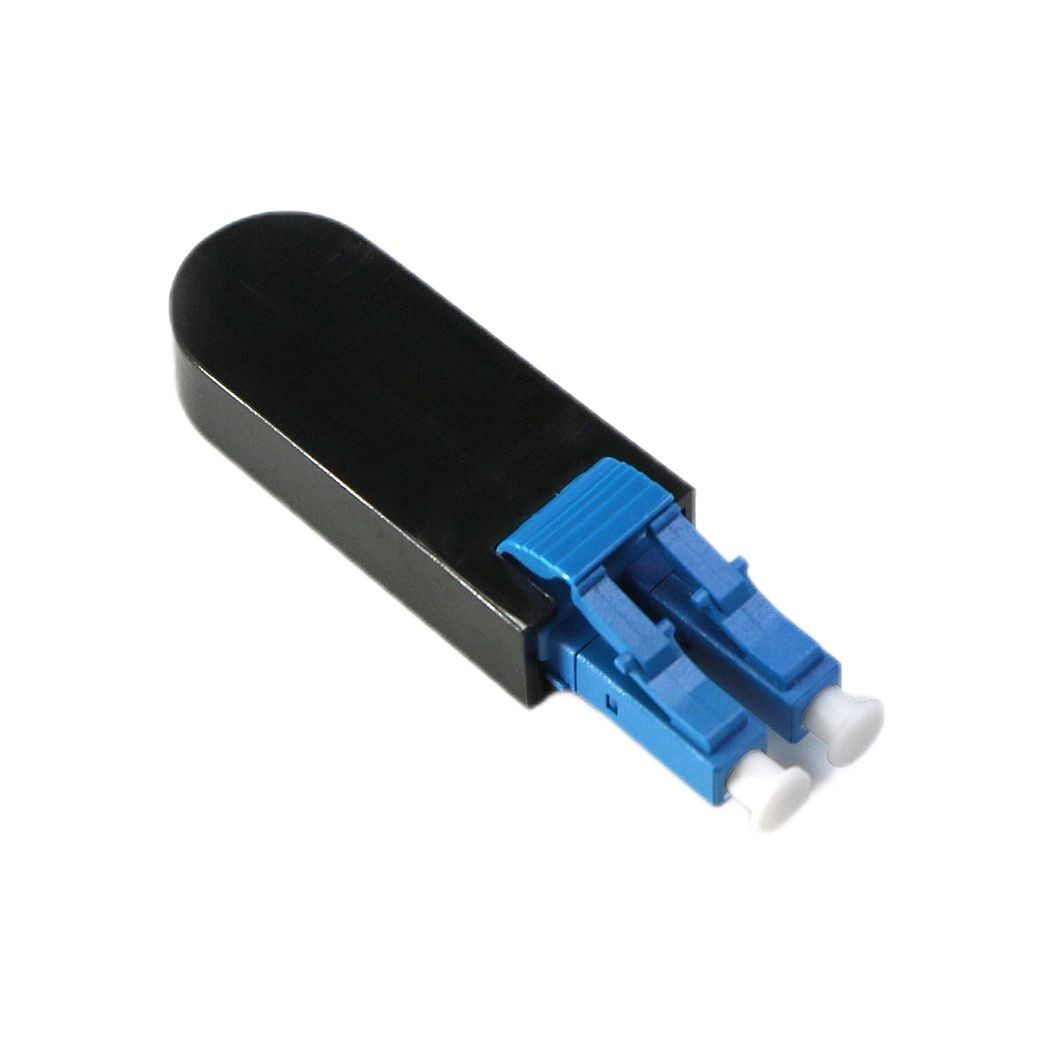

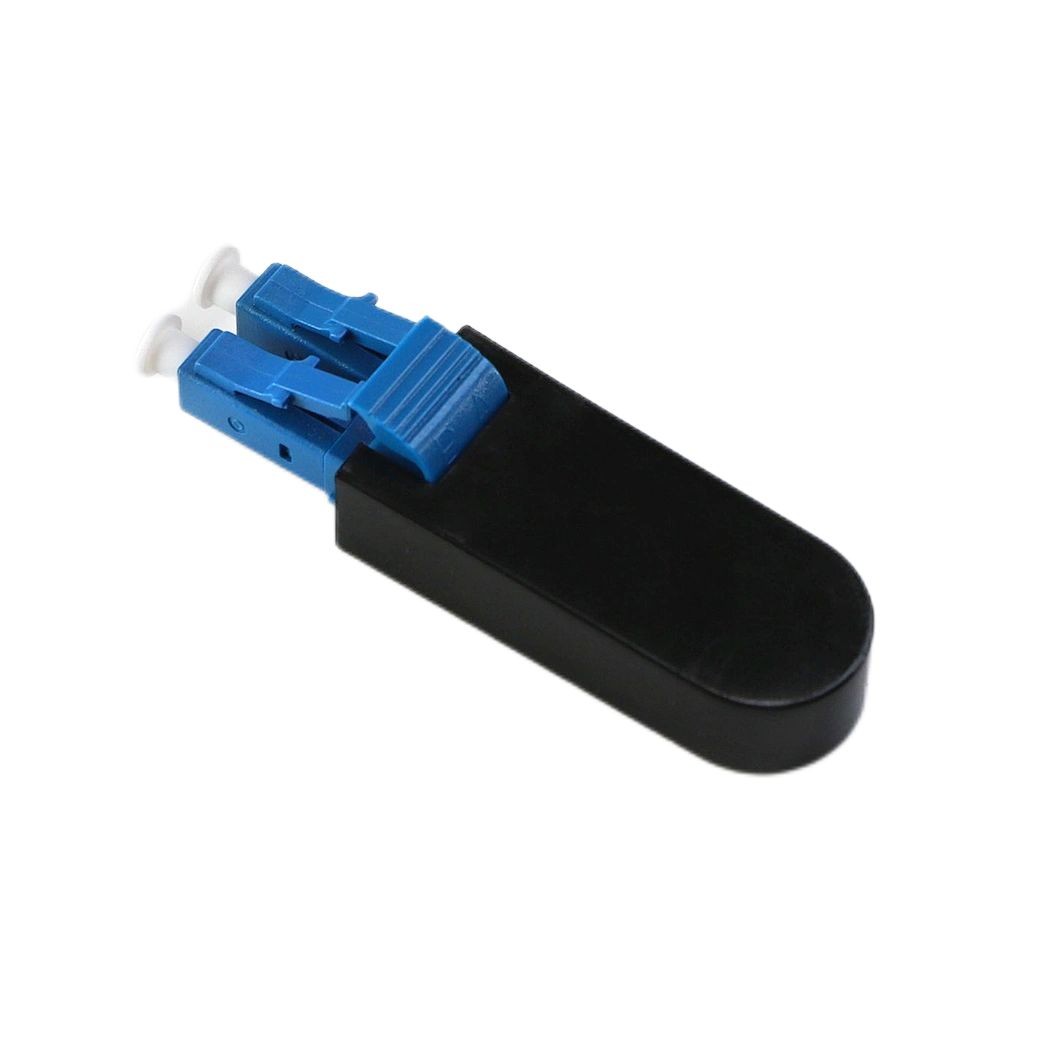

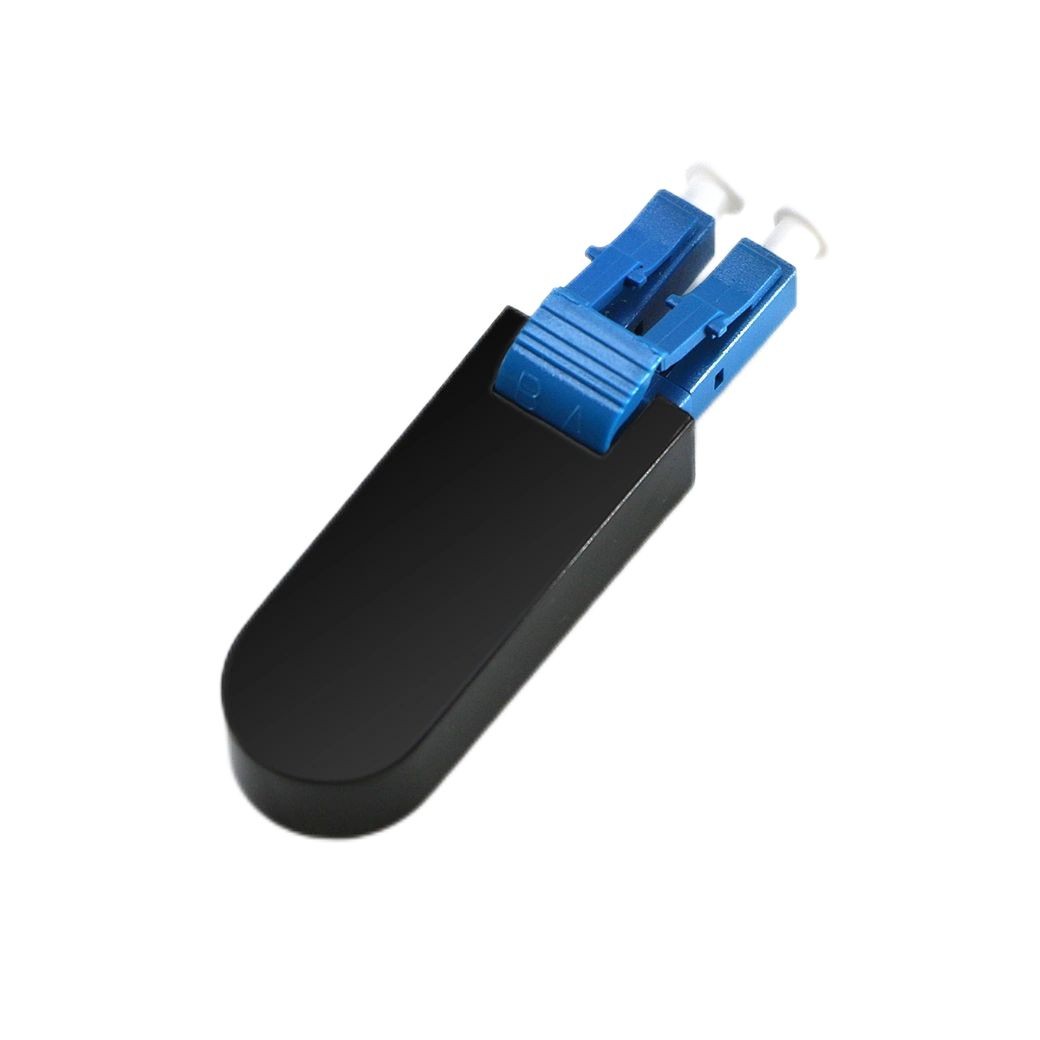

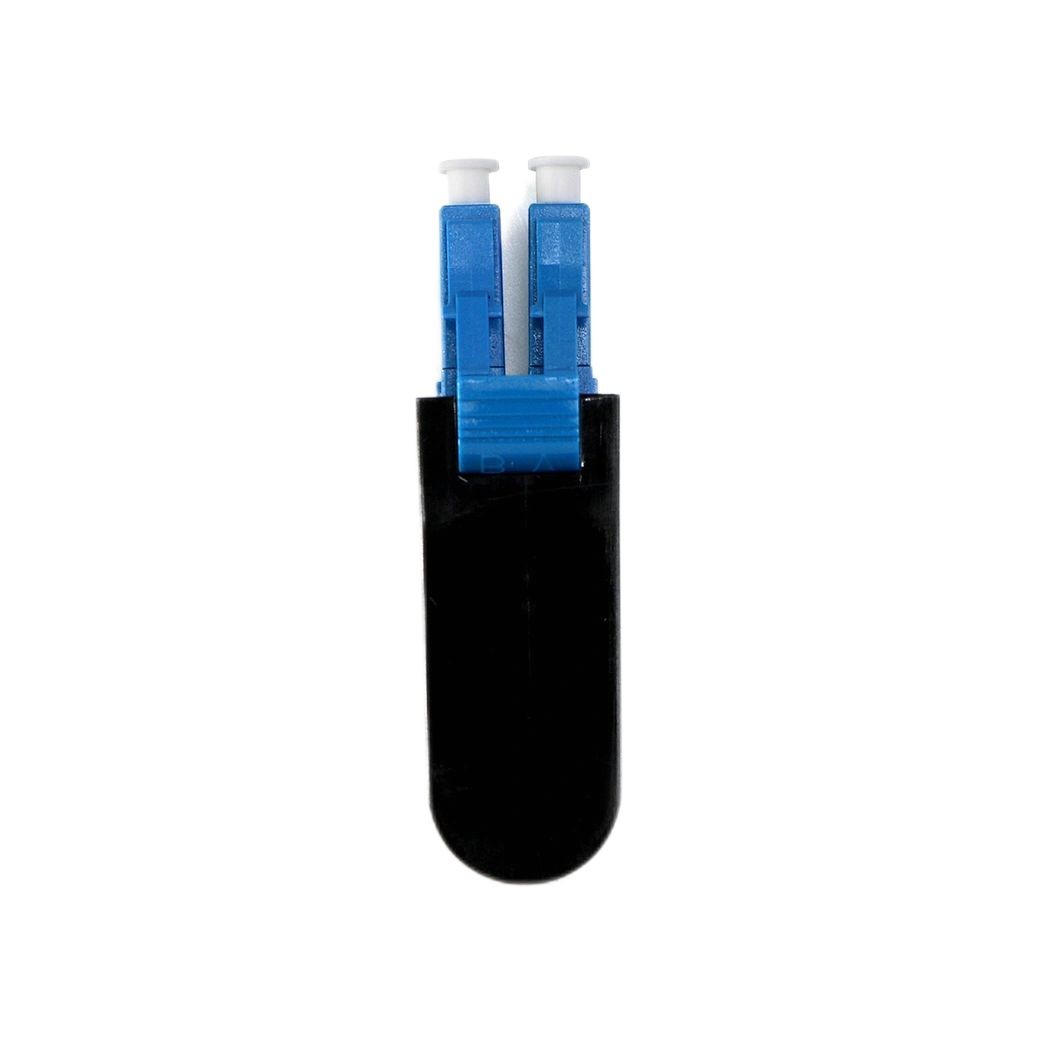

QYY- LC Fiber Optic Loopback LC SM MM APC UPC Adapter Optical

QYY- LC Fiber Optic Loopback LC SM MM APC UPC Adapter Optical

Ferrule Endface : Upc, APC

Material ：ABS Or PC

Fiber Type：SM MM

Wavelength：1310nm Or 1550nm

Description

QYY- LC Fiber Optic Loopback LC SM MM APC UPC Adapter Optical

Features:

. Low insertion loss
. High return loss
. Excellent Repeatability, exchangeability, wearability and stability.
. Environmentally Stable

Application：

. FTTH, LAN, PON & Optical CATV, Local ring net
. Optical fiber communication system
. Optical fiber test equipment
. Optical fiber sensor
. Industry and military application

Specification:

Parameter Fiber Optic Loopback Adapter	Unit	Adapter:LC FC ST SC MU
		SM		MM
		PC/UPC	APC	PC
Insertion Loss	dB	≤0.2	≥45	≤0.2
Return Loss	dB	≥45	≥60	≥30
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-25~75
Storage Temperature	°C	-25~85
