  • QYY-200F-SQ

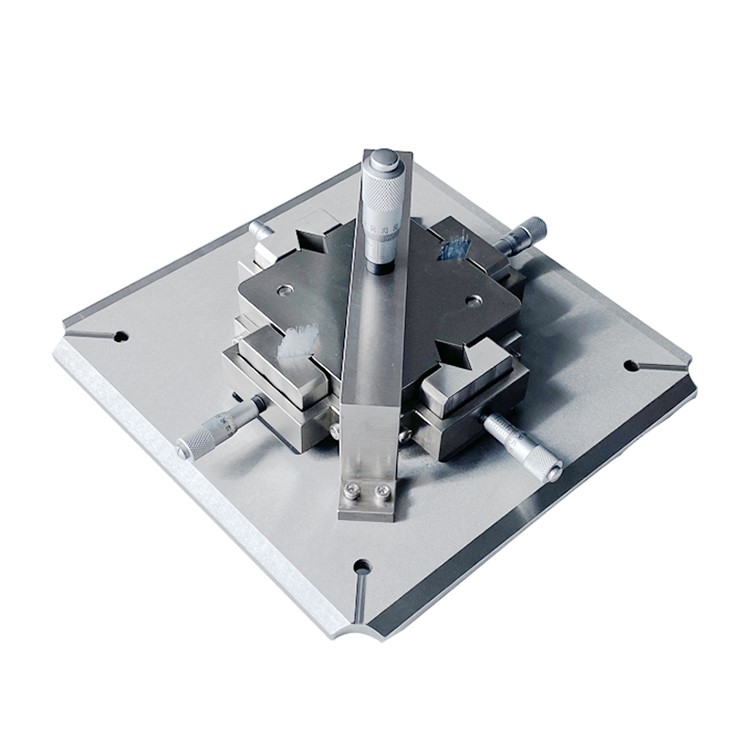

QYY-200F-SQ

  • Model:QYY-200F-SQ,
  • Type: Bare fiber
  • Capacity: 400 bits
  • Size :174 * 174 * 8 mm
  • Inquiry Send Email

    Description

    QYY-200F-SQ


    Features:

    1. QYY-2000 series for quadrangular pressure grinding machines;
    2. Designed specifically for bare fiber grinding and polishing;
    3. Suitable for bare optical fibers with a core diameter of 30-1.5mm;
    4. A rhombic V-shaped groove holds multiple bare fibers;
    5. Grinding 200-400 bare optical fibers at one time
    6. We can also design single core, double core, and four core grinding schemes according to customers;
    7. The pressure exerted by the optical fiber on the sandpaper is quantifiable and adjustable;
    8. The four step grinding method is extremely easy to obtain a defect free end surface;
    9. The effect of grinding the end surface is good.

    Parameter value:

    Model
    QYY-200F-SQ, Type
    Bare fiber
    Capacity
    70mm

    LCD display size

    24 inches

    Outer diameter of rotary table 400 bits Good grinding
    effect
    Operation

    easily

    Disc color

    Silver

    Disc material stainless steel Size
    174 * 174 * 8 mm
    Net weight/gross
    weight 1.5 kgs/2.0 kgs

    Application:
    Apply ground bare fiber
