Description

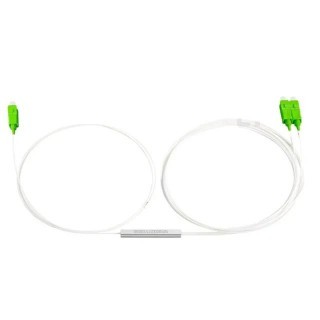

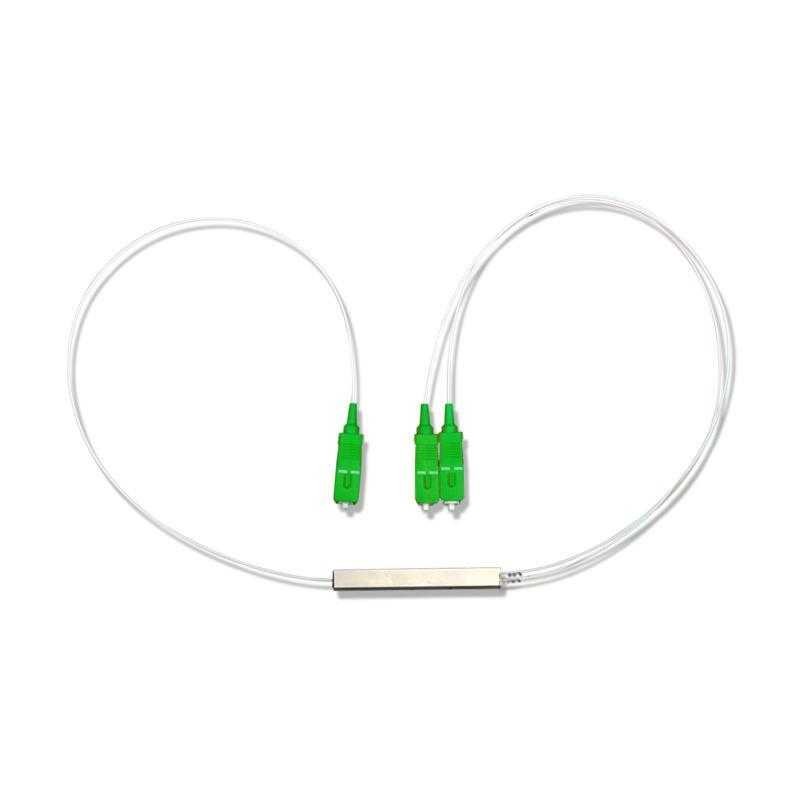

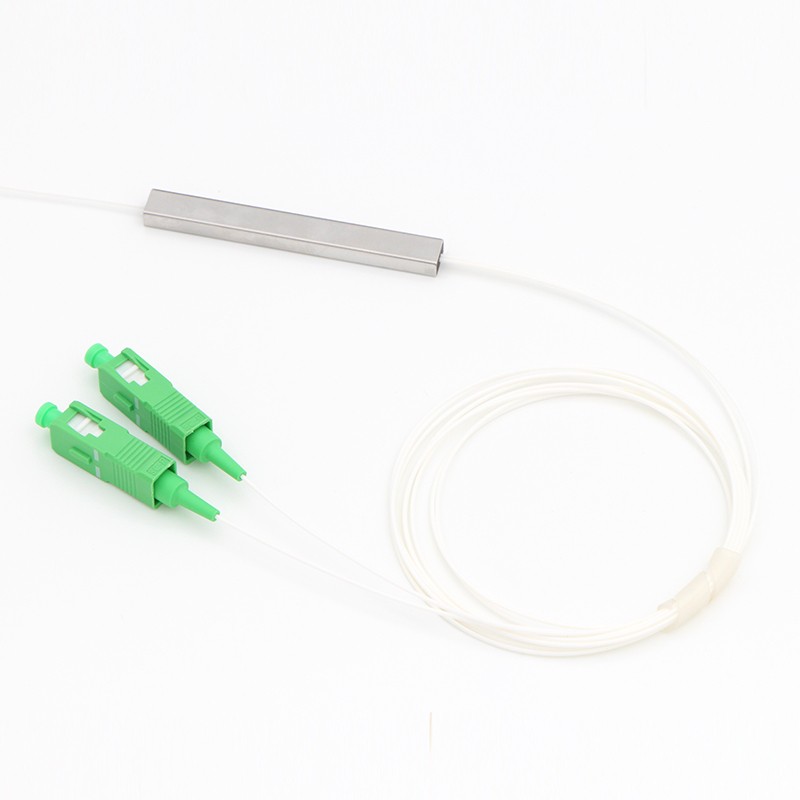

QYY- 1x2 SC APCPLC Mini Optical Splitter
Features：
1. Good channel-to-channel uniformity
2. High reliability and small size
3. Low Insertion loss and Low PDL
4. Compact Design
5. 1. Good channel-to-channel uniformity
6. Wide Operating Wavelength: from 1260nm to 1650nm
7. High Reliability and Stability
8. Standard LGX Metal/Plastic Box
9. Protective Package
10. Suitable for Outdoor Use
Specifications:
Product Name
Mini PLC Splitter 1X2
Type
Mini PLC
Ferrule Polish End-face
PC,UPC,APC
Fiber Type
LC,FC,SC,ST
Application
gepon,ftth ,fttx
Insertion Loss
4-22dB
Fiber Length
1m ,1.5m, 2m or customized
Sleeve Diameter
2.0mm,3.0mm,0.9mm
Package
bare, module, rack mount,ABS case
Wavelength
1310/1490/1550nm
Product Keywords
-40~85℃Splitter 1x2 SC APC,Optical Splitter 1x2 SC APC,250um Splitter 1x2 SC APC
Application：
. Fiber to The Point (FTTX)
. Fiber to The Home (FTTH)
. Passive Optical Networks (PON)
. Gigabit Passive Optical Networks (GPON)
. Local Area Networks (LAN)
. Cable Television (CATV)
. Test Equipment
