Description

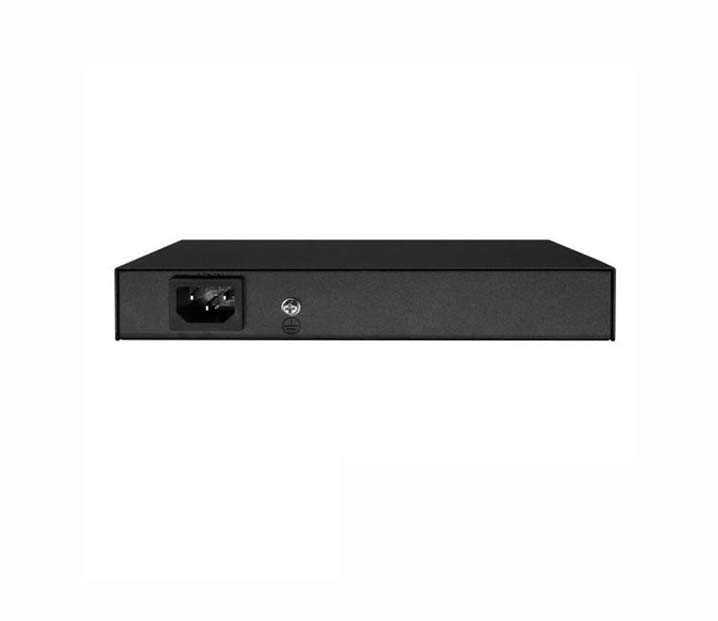

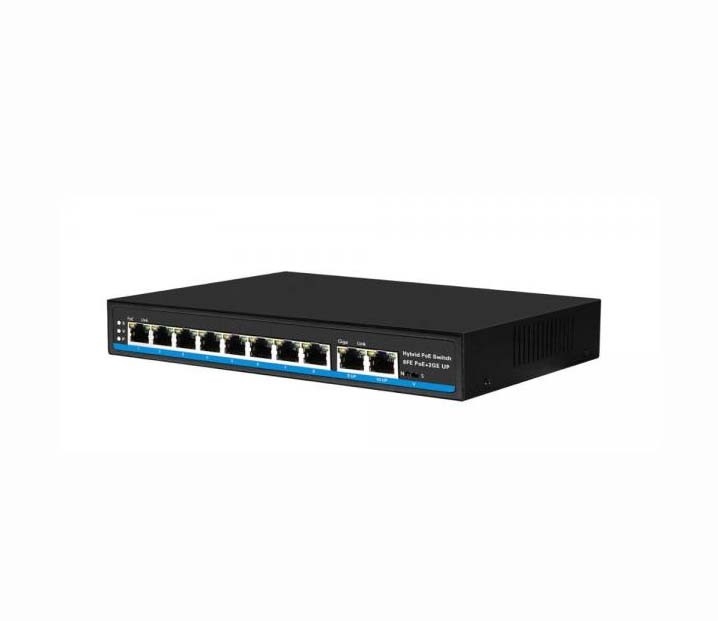

QYY-Fiber Hybrid Switch 8 FE PoE
Describe:
1.automatic IEEE802.3af/at
2.Dynamic power to ensure stable and reliable output power
3.Anti collinear interference to solve the problem of grounding installation
4.Queue up to effectively reduce current impact
5.Reliable short protection circuit, safe and reliable
6.Overpressure undervoltage protection
Application：
1.Million HD surveillance transmission and power supply
2.Wireless AP distribution transmission and power supply
3.VoIP transmission, intelligent home systems
4.City intelligent traffic monitoring system (ITS), safe city, and wireless city
5.Highway surveillance system, electronic road surveillance, snapshot system
6.large industrial factory& enterprise security surveillance system, network multifunction system
7.Remote multimedia teaching & campus surveillance, video conferencing systems
8.Building intercom, wireless communications, video surveillance
Specification：
Model
POE28PGM
100M POE Rj45
8
1000M UPLINK
2
Exchange Mechanism
Store-and-forward
Bandwidth
2.0G
MAC
1K
Working Temperature:-10℃~55℃
Environmental
Storage temperature :-40℃~70℃
Working Humidity :10%~90% RH non-condensing
Storage Humidity:5%~90% RH non-condensing
POE
IEEE802.3af/at, Port PoE MAX 30W,
System model
Default standard/VLAN isolation/Super 250meters
Power input
AC 100-240V 50/60Hz 1.5A MAX120W
IEEE 802.3
IEEE 802.3i 10BASE-T
Standards Protocols
IEEE 802.3u 100BASE-TX
IEEE 802.3af/at
IEEE 802.3x
IEEE 802.1q
System model
Default standard;VLAN isolation
Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤250m)
Network Media
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
Product specifications

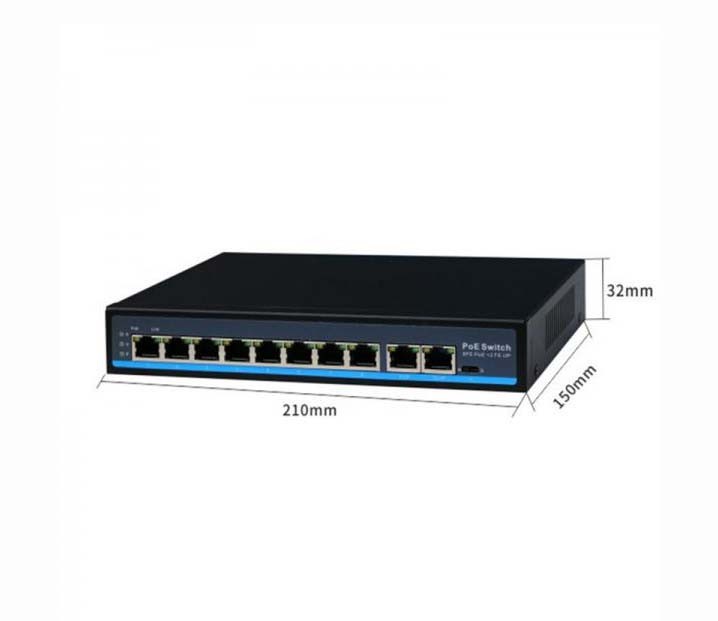

Product Size:210mm*150mm*32mm(L*W*H)
package Size:300mm*175mm*100mm(L*W*H)
Weight:1.1kg
