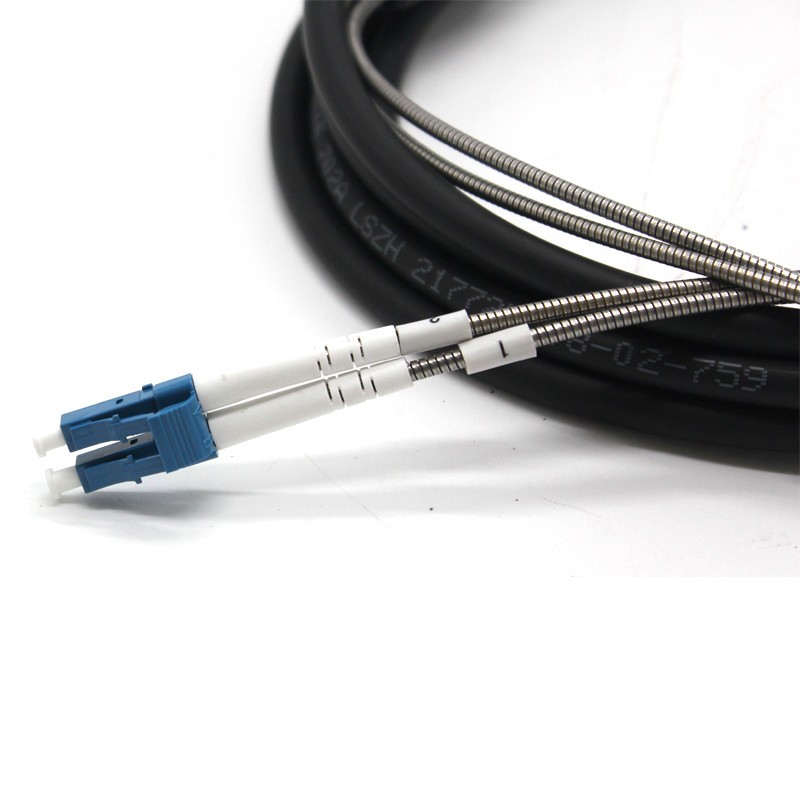

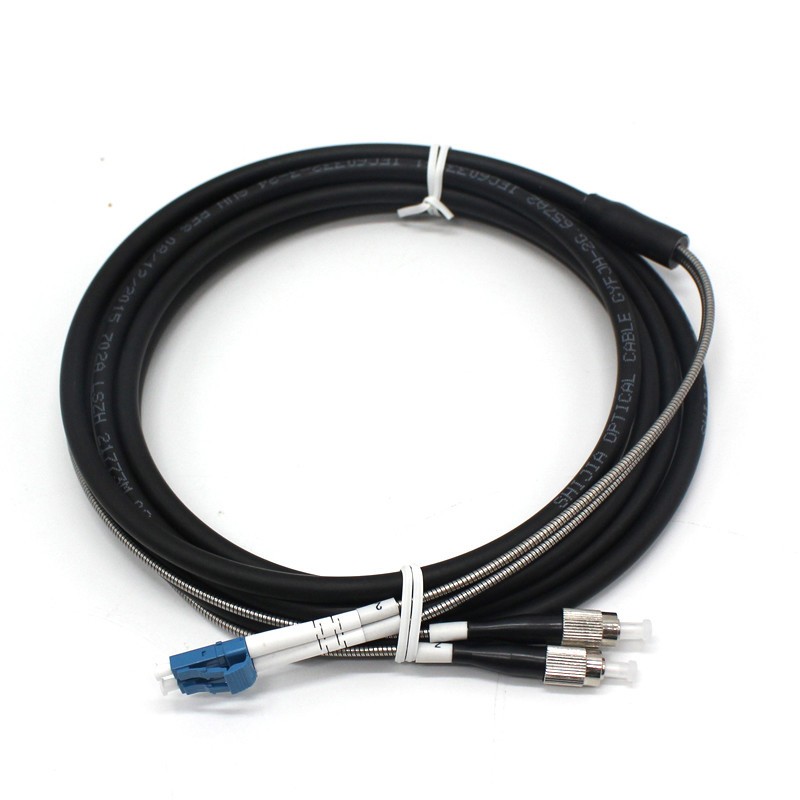

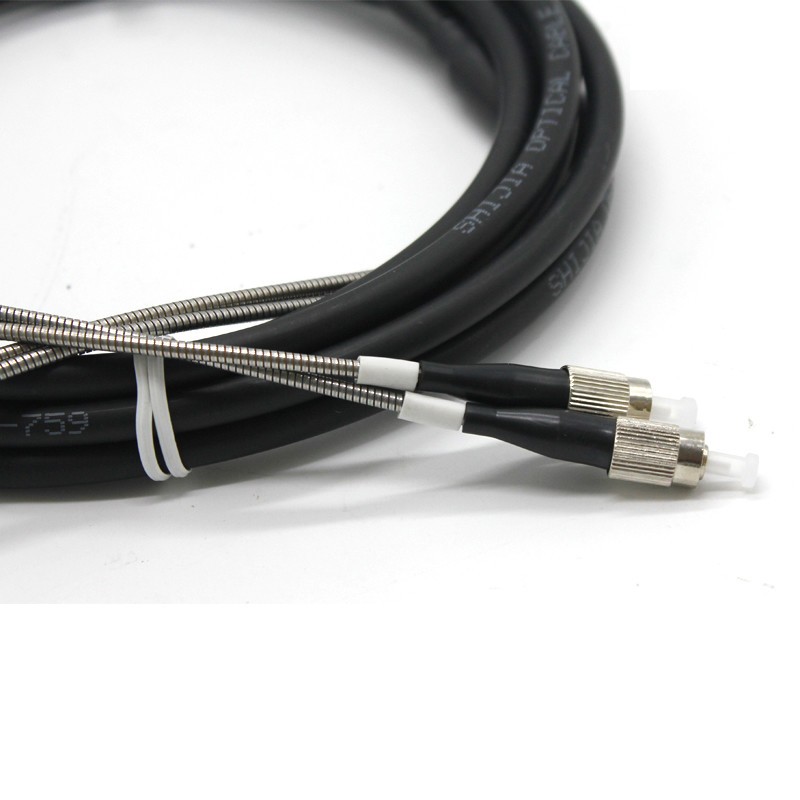

QYY- 2F Fiber Optical Cable Assembly Single Mode Waterproof PDLC DLC GYFJH
Feature：
. Positive mechanical feedback to inform the operator when the connector is fully mated
. No cable buckling during or after installation
. Robust bayonet locking for easy, fast and secure mating
. A water-proof, dust-proof and corrosion-resistant design that utilizes metal die cast bulkhead
. Cost savings through the elimination of fiber management in the radio unite is suitable for producing
PET plastic containers and bottles in all shapes.
Parameters：
Fiber Count
Cable Dimension
mm
Cable Weight
kg/km
Tensile
N
Crush
N/100mm
Min. Bend Radius
mm
Range of Temperature
Long
Term
Short
Term
Long
Term
Short
Term
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
Dynamic
Static
2
7.0
42.3
200
400
1100
2200
20D
10D
-30-+70
4
7.0
42.3
200
400
1100
2200
20D
10D
-30-+70
8
7.0
42.3
200
400
1100
2200
20D
10D
-30-+70
Cable Parameters：
| Item | Unit | Specification |
| Attenuation | dB/km |
1310nm≤0.4 1550nm≤0.3 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
| Zero dispersion wavelength | Nm | 1300~1324 |
| Zero dispersion slope | Ps/nm.km | ≤0.095 |
| Fiber cutoff wavelength | Nm | ≤1260 |
| Mode field diameter | Um | 9.2±0.5 |
| Mode field concentricity | Um | <=0.8 |
| Cladding diameter | um | 125±1.0 |
| Cladding non-circularity | % | ≤1.0 |
| Coating/cladding concentricity error | Um | ≤12.5 |
| Coating diameter | um | 245±10 |
|
bending, dependence induced attenuation |
1550nm, 1turns,32mm diameter 100rums,60mm diameter |
≤0.5 db |
| Proof test | kpsi | ≥100 |
one single mode fiber
Core Cladding Coating Buffer：
ITEM
PARAMETER
Connector type
LC/UPC . LC/UPC
Insertion Loss
<=0.3db
Return Loss
>=50db
Fiber mode
Single mode 9/125
Operating wavelength
1310nm, 1550nm
Test wavelength
1310nm, 1550nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C
