Description

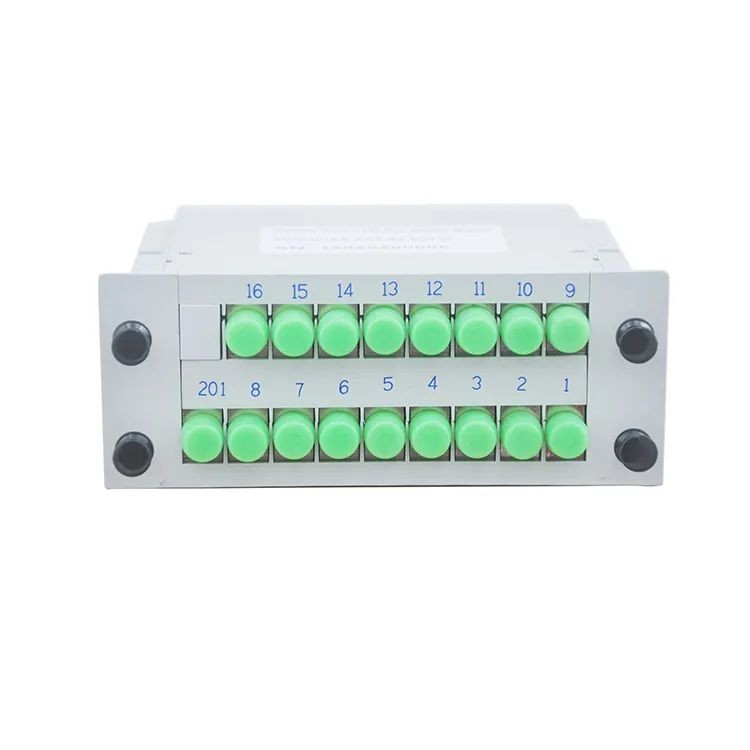

QYY- 1X16 Optical PLC Mini Splitter ABS Box FC APC
Feature:
. Good uniformity and low insertion loss
. Low polarization dependent loss
. Excellent environmental stability
. Excellent mechanical
. Compact design,suitable for installation in optical equipment
. Wide operating temperature:-40~85 ℃
. High reliability and stability
Specifications:
| Parameter | Specification | ||||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
| Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
| Insertion Loss (dB) Max. * | <7.3 | <10.4 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
| Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
| Directivity (dB) Min * | 55 | ||||||||
| Return Loss (dB) Min * | 55(50) | ||||||||
| Operating Temperature (°C) | -5~ +75 | ||||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||||
| Fiber length | 1m or custom length | ||||||||
| Fiber Type | SMF-28e fiber | ||||||||
| Connector Type | Custom specified | ||||||||
| Power Handling (mW) | 300 | ||||||||
Application：
. FTTX Systems
. PON Networks
. CATV Links
. Optical Signal Distribution
. Local Areal Networks (LAN)
. Fiber communication Systems
