Description

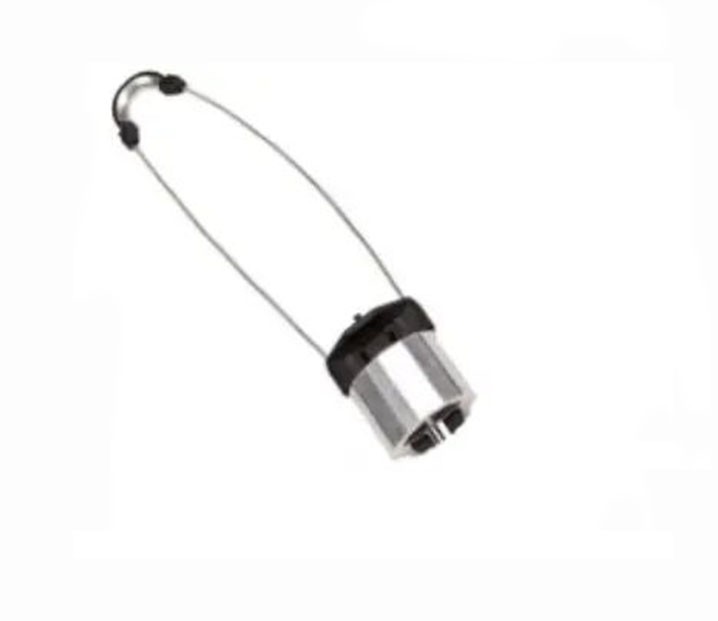

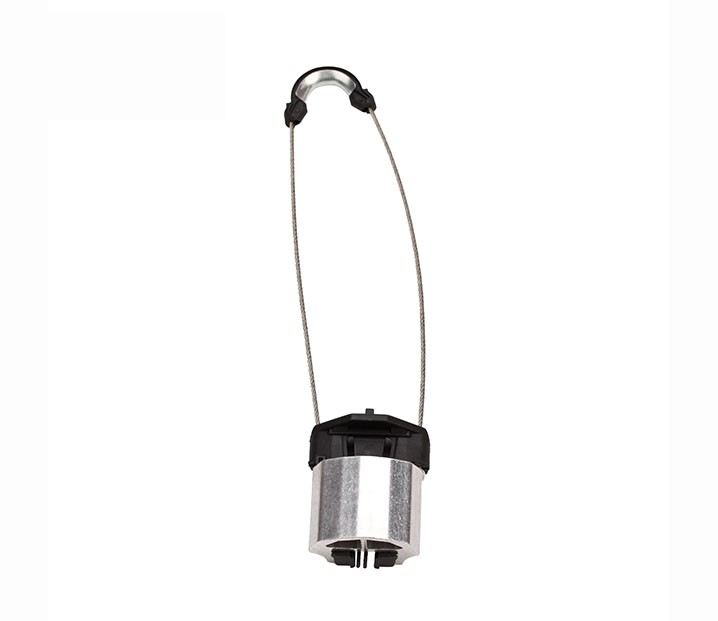

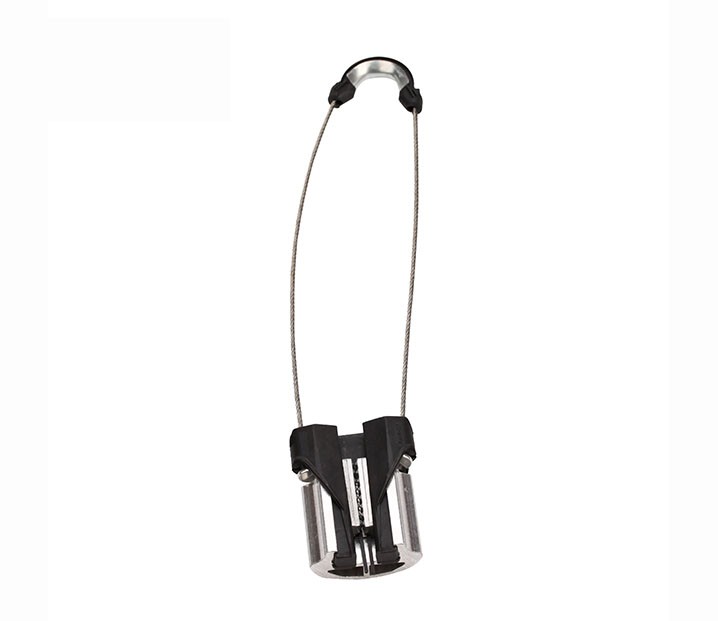

QYY-AC-O-06 AND AC-O-07 DEAD END CLAMP
Installation Notes：
1.Attach the clip to the pole bracket using its flexible clamp.
2.Place the clip body on the cable with the wedge in its rear position.
3.Push the wedge by hand to start clamping the cable.
4.Check the correct positioning of the cables between the wedges.
5.When the cable bears its installation load at the end bar, the wedge moves further onto the clamp body. install doubleThe dead end leaves some extra length of cable between the two clamps.
Item No.
Cross Section(mm2)
Conductor(mm)
Breaking Load(KN)
AC-O-06
16-25
3-6日
3
AC-O-07
16-35
3-7日
5
