Description

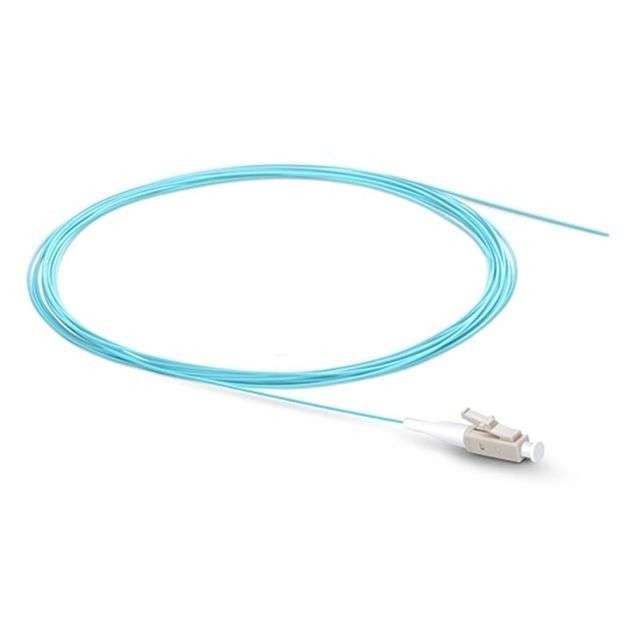

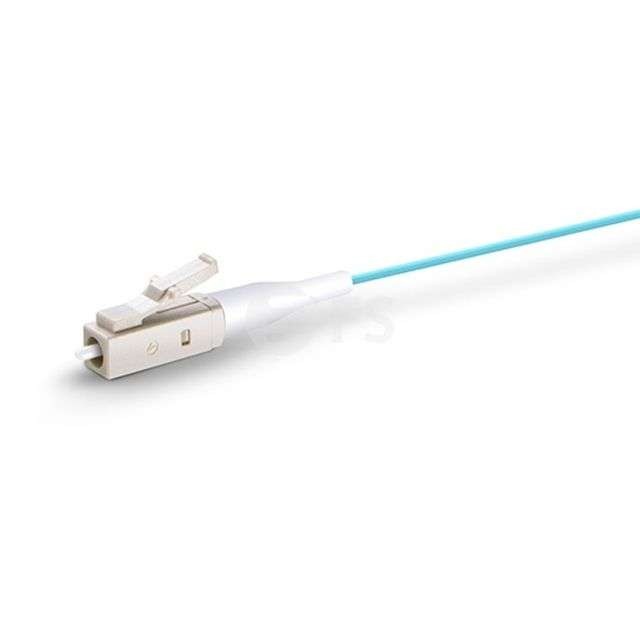

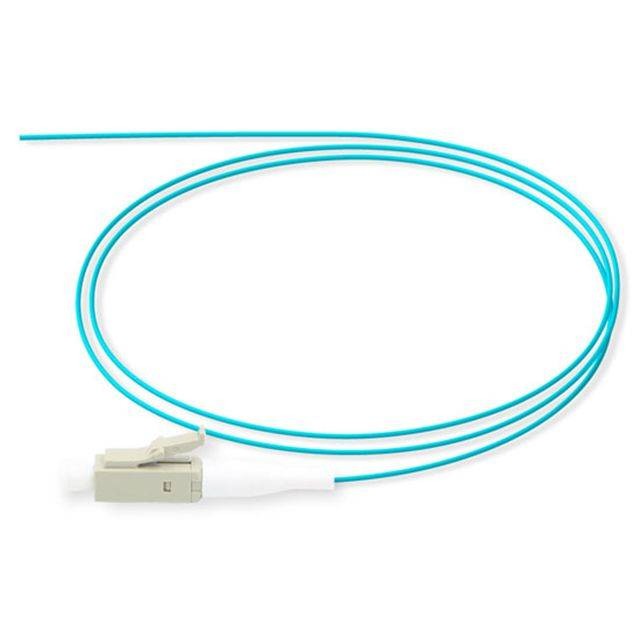

QYY- LC/UPC Simplex OM3 Multimode 0.9mm Chinese supplier
Features:
. Low insertion loss and back reflection loss
. Ferrule end surface pre-domed
. Excellent mechanical endurance
. Good in repeatability
. Good in exchange
. Green Production, CE, RoHS Standard
Application：
. Telecommunications
. CATV, LAN, MAN, WAN, Test &Measurement
. Military industry
. Medical
Specifications:
Parameter
Fiber Type
Single mode
Multi mode
Insertion loss
≤0.3dB, typical ≤0.2dB ≤0.30dB
Return loss
≥45PC) ≥35dB
≥50UPC) ≥60dB(APC)
Durability
≤0.2dB typical change,1000 matings
Repeat ability
≤0.10dB
Cable Diameter
0.9/2.0mm
Operation temperature
-40 ~ +75
Storage temperature
-40 ~ +85
Operating wavelength
1310/1550nm / 850/1300 nm
